1.1 EXTERNAL EAR: PINNA AND EAR CANAL

The pinna is the most prominent portion of the external ear (Fig. 1.1). It has an inner, concave surface and an outer, convex surface. In the standing ear, the concave surface forms a conchal cavity that is directed rostrally or laterally, while the convex surface faces medially or caudally. The distal tip of the pinna is called the apex, and the lateral and medial free margins of the pinna are called the helix (Fig. 1.2). The rostrolateral boundary of the distal portion of the ear canal is called the tragus. A notch caudal to the tragus, the intertragic incisure, separates it from the antitragus, which is a thin elongated piece of cartilage that extends up to the lateral margin of the helix at the cutaneous marginal pouch.

Figure 1.1 General anatomy of the pinna. The conchal cavity of the concave surface of the ear can be directed rostrally or laterally.

(Photo by Phil Snow, UTCVM) © 2012 The University of Tennessee.

Figure 1.2 Concave surface of the right dog pinna. The antihelix and tragus form the boundaries of the ear canal opening.

(Photo by Phil Snow, UTCVM) © 2012 The University of Tennessee.

The margins of the pinna are divided into medial, or rostral, and lateral, or caudal (see Fig. 1.1). These variations in directional description can make the anatomy very confusing.

The external ear is composed of three cartilages: annular, auricular, and scutiform. The ear canal is formed proximally (near the skull) by the annular cartilage and distally (away from the skull) by the auricular cartilage, which fans out to form the pinna (Fig. 1.3).

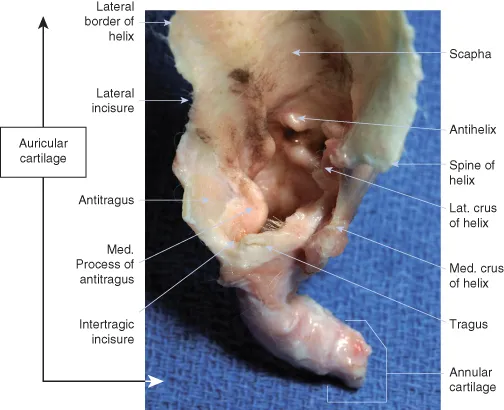

Figure 1.3 Auricular and annular cartilage of the right ear of a dog, lateral view.

(Photo by Phil Snow, UTCVM) © 2012 The University of Tennessee.

The auricular cartilage is divided into three sections: the scapha, the concha, and the tubus auris, or conchal tube (Fig. 1.4). Whereas the scapha is distally located and flattened, the concha is rolled into a trumpet shape to form the conchal cavity (Fig. 1.5). The scapha and concha are divided on the concave surface by the antihelix, a transverse cartilaginous fold.

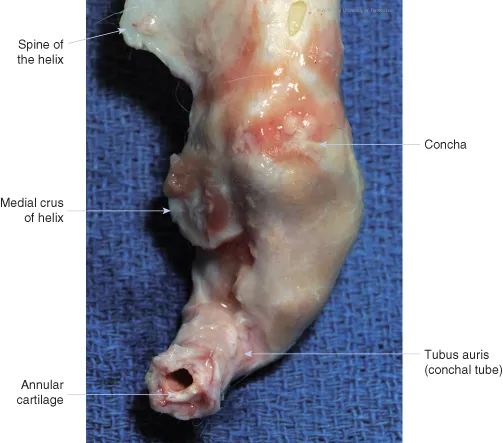

Figure 1.4 Auricular and annular cartilage of the right ear, caudal view. The annular cartilage is nestled within the auricular cartilage, which forms the pinna and vertical ear canal. Note that the proximal portion of the auricular cartilage spirals inward as it bends.

(Photo by Phil Snow, UTCVM) © 2012 The University of Tennessee.

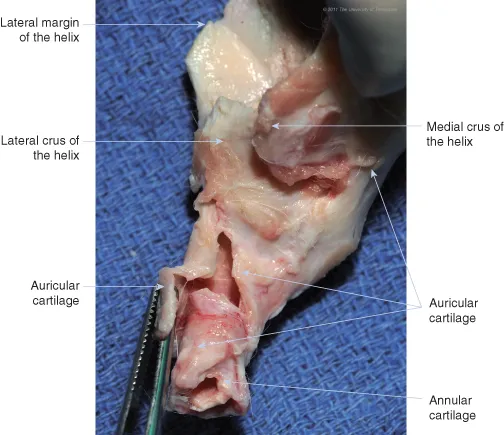

Figure 1.5 Medial view of cartilage of the right ear. A portion of the auricular cartilage that forms the conchal tube has been elevated; underneath is another extension of auricular cartilage that wraps around the annular cartilage. Note that the ear canal is not a solid funnel: the auricular and annular tubes are each formed by overlapping flaps of cartilage that allow flexibility. Animals with severe otitis externa or conchal obstruction may develop periauricular abscesses from disruption of the fibrous connective tissue sheath surrounding either the tube flaps or the auricular-annular or annular-osseous junction.

(Photo by Phil Snow, UTCVM) © 2012 The University of Tennessee.

The concha forms a funnel shape that thickens proximally as it becomes the conchal tube. The conchal tube forms the vertical ear canal. This canal is up to an inch (2.5 cm) deep and, as it progresses proximally towards the head, is directed ventrally, medially, and slightly rostral, spiralling inwards. It is partially surrounded along its proximal lateral border by the parotid salivary gland.

The annular cartilage is a separate, rolled, cartilaginous band that fits inside of the base of the conchal tube. It forms the horizontal ear canal, which runs medially toward the skull. In turn, the annular cartilage overlaps the osseous external acoustic meatus. Junctions of the auricular and annular cartilages and the annular cartilage and skull are connected by a fibrous tissue sheath. Because of these moveable joints, the auditory canal can be straightened during otoscopic examination. Epithelium lining the auricular and annular cartilage contains sebaceous and ceruminous glands and hair follicles (Fig. 1.6).

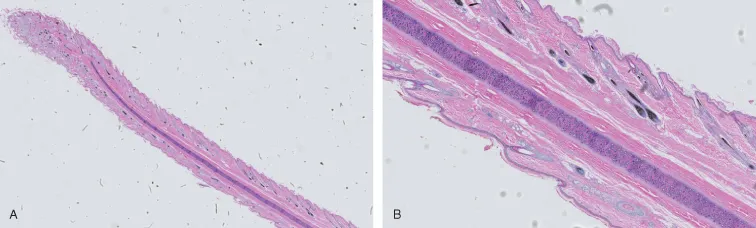

Figure 1.6 (A), Cross-section of the pinna of a dog. (B), Components including hyaline cartilage, muscle, and hair follicles are easily visible.

(Courtesy, UTCVM Virtual Microscope) © 2012 The University of Tennessee.

Terminology for the ear canal varies within and amongst texts. Some authors consider the osseous extension of the skull that encompasses the tympanic membrane to be the external acoustic meatus or osseous external acoustic meatus, while others consider the external acoustic meatus to be the opening of the conchal tube at the level of the tragus and antihelix. The cartilaginous tube that extends from the meatus to the concha, which is a combination of conchal tube (auricular) and annular cartilage, is sometimes called the auditory canal.

A variety of muscles attach the ear rostrally, ventrally, or caudally to the head (Fig. 1.7); these muscles are innervated by the facial nerve. Some of these muscles are continuous with the cervical portion of the platysma. The plate-like, L-shaped scutiform cartilage, which is medial to the auricular cartilage, lies within the muscles that attach the auricular cartilage to the head (Fig. 1.8). By acting as a fulcrum, the scutiform cartilage improves mobility of the auricular cartilage.

Figure 1.7 Muscles of the canine ear and face: right lateral view...
