The Fischer-Tropsch process is gaining recognition again due to the world-wide increase in energy needs and decrease in oil availability. The increasing interest in utilizing biomass as a potential renewable feedstock in energy generation is further supporting this development.

The book covers the production and refining of Fischer-Tropsch syncrude to fuels and chemicals systematically and comprehensively, presenting a wealth of new knowledge and material. As such, it deals extensively with aspects of engineering, chemistry and catalysis. This handbook and ready reference adopts a fundamental approach, looking at the molecules and their transformation from feed to product. Numerous examples illustrate the possibilities and limitations of Fischer-Tropsch syncrude as feesdstock.

Of great interest to everyone interested in refining - not just Fischer-Tropsch specialists.

From the Contents:

• Fischer-Tropsch Facilities and Refineries at a Glance
• Production of Fischer-Tropsch Syncrude
• Industrial Fischer-Tropsch Facilities
• Synthetic Transportation Fuels
• Refining Technology
• Refinery Design

Part I

INTRODUCTION

1

Fischer–Tropsch Facilities at a Glance

1.1 Introduction

Industrial Fischer–Tropsch facilities are currently only used for coal-to-liquid (CTL) and gas-to-liquid (GTL) conversion. The purpose of such facilities is to convert solid or gaseous carbon-based energy sources into products that may be used as fuels or chemicals. Although Fischer–Tropsch synthesis lies at the heart of the conversion, it is actually only a small part of the overall process. The process can be divided into three steps (Figure 1.1): feed-to-syngas conversion, syngas-to-syncrude conversion, and syncrude-to-product conversion. Generically, this is called indirect liquefaction, because the feed is first transformed into synthesis gas (syngas) and the syngas is then transformed into products.

Figure 1.1 Overall indirect liquefaction process for feed-to-liquids (XTL) conversion.

From Figure 1.1 it can be seen that the type of feed materials that can be converted in the first step is not restricted to coal and natural gas. The conversion of biomass in a biomass-to-liquids (BTLs) process and waste in a waste-to-liquids (WTLs) process can likewise be considered. Collectively, all of these processes are referred to as feed-to-liquids (XTLs) conversion processes. The raw feed material limits the technology selection for the feed-to-syngas conversion step, but not for the subsequent steps. Once the feed has been converted into syngas, which is a mixture of carbon monoxide (CO) and hydrogen (H2), the syngas can be conditioned to serve as feed for any syngas-to-syncrude conversion technology. Fischer–Tropsch synthesis is not the only possible technology for the conversion of syngas into a synthetic crude oil (syncrude), but together with syngas-to-methanol conversion [1], Fischer–Tropsch synthesis is industrially the most relevant.

This book deals with the third step in Figure 1.1, namely, the refining of the syncrude into final marketable products, and it specifically deals with the refining of Fischer–Tropsch syncrude as the title suggests. Since methanol is also a product of Fischer–Tropsch synthesis, the refining of methanol as syncrude component is covered too.

The representation in Figure 1.1 does not do justice to the complexity of indirect liquefaction. Whole texts have been devoted to aspects of the indirect liquefaction process, such as coal gasification [2, 3], Fischer–Tropsch technology [4–7], and the catalysis of Fischer–Tropsch syncrude refining [8]. This chapter provides only an overview of Fischer–Tropsch facilities. It shows how the component parts are linked together and why they are interdependent. In subsequent chapters, each one of the topics is revisited in more depth, in order to present the detail that is necessary to comprehensively deal with the topic of this book, namely, Fischer–Tropsch refining.

1.2 Feed-to-Syngas Conversion

Feed-to-syngas conversion is an energy-intensive operation and also the most expensive step in indirect liquefaction. Many of the advantages that are related to the feed-to-syngas conversion step do not depend on subsequent processing. It is these advantages that make indirect liquefaction attractive, despite its poorer energy efficiency than direct liquefaction [9–11].

1. Feed Diversity One of the major advantages of indirect liquefaction over direct liquefaction is the wide selection of feed materials that can be used. In addition to coal and natural gas, it is possible to employ almost any other carbon source as feed material. The conversion of biomass and waste are attractive concepts, since biomass represents a renewable source of energy and waste conversion represents the beneficial reuse of discarded material. Waste products that can be considered include domestic and industrial waste, for example, discarded plastic containers, old tires, and asphalthenes from carbon rejection processes. However, feed diversity is not the same as feed flexibility. The design of the feed-to-syngas conversion step has to be based on a specific feed slate and it generally has little feed flexibility beyond its designed range of feed compositions.

2. Mineral Rejection Indirect liquefaction has the inherent ability to process and separate carbon matter from mineral matter in mineral-containing carbon sources. Oil shales, peat, coal, and oil sands are all mineral-containing carbon sources. Such solid feed materials are typically converted in gasifiers to produce syngas. Once the carbon in these carbon sources has been oxidized to carbon monoxide, separation of the gaseous products from the mineral matter is easily achieved. The physical state of the rejected mineral matter depends on the gasification technology that was employed and it may be a dry ash or a slag.

3. Heteroatom Removal Carbon-containing feed material usually contains other elements in addition to carbon and hydrogen. When the feed is converted into a raw synthesis gas, heteroatoms in the feed are also converted into gaseous compounds, such as hydrogen sulfide (H2S), carbonyl sulfide (COS), and ammonia (NH3). When the raw synthesis gas is purified, these heteroatom-containing compounds are removed to produce a pure synthesis gas, consisting of only carbon monoxide and hydrogen. With the exception of oxygen, all other heteroatoms are therefore removed during syngas purification. The removal of heteroatoms benefits the syncrude refinery, since the syncrude now only contains CxHyOz-compounds.

1.2.1 Feed Logistics and Feed Preparation

It is convenient to look at the carbon-containing feed merely as a feed process stream. In the case of natural gas feed that is already available from a pipeline supply, this may be a good approximation, but it is an oversimplification in most other cases. The steps involved in obtaining and preparing feed for indirect liquefaction are more complex (Figure 1.2).

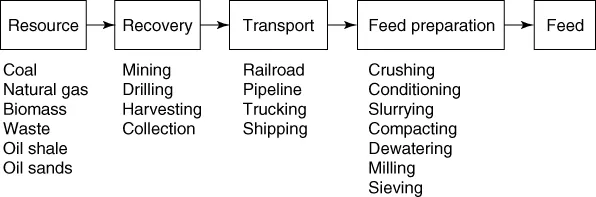

Figure 1.2 Feed logistics and preparation for indirect liquefaction.

The carbon source is not always concentrated, as it is in the case of a natural nonrenewable resource such as coal. Biomass-derived feed is not concentrated at a single point of origin. Biomass has a low energy density and the feed logistics involved in collecting and transporting the biomass from its origin to the indirect liquefaction facility significantly adds to the cost and complexity of the process. Feed pretreatment and logistics are generally costlier than the direct operating cost of indirect liquefaction to produce Fischer–Tropsch syncrude. It can account for up to a third of the total production cost of the whole facility [12].

For natural gas, the feed logistics may be a significant factor in deciding whether to invest in indirect liquefaction or not. Natural gas can be directly distributed by pipeline as fuel gas, or it can be compressed and distributed as liquefied natural gas (LNG).

All raw materials, including natural gas, require some form of feed pretreatment before they are suitable for conversion into syngas. The nature of the pretreatment is directly linked to the method of syngas production. It is prudent to select the syngas production technology with this in mind, since feed pretreatment can be a significant cost component.

1.2.2 Syngas Production

All syngas production technologies involve some form of partial oxidation (Chapter 3). It is convenient to consider the production of syngas from gaseous and solid carbon sources separately. Irrespective of the feed, the syngas production technology must be compatible with the feed and it should ideally be selected to meet the syngas requirements of the syngas-to-syncrude conversion technology. As rule of thumb, one aims for a H2:CO ratio of around 2 in the syngas. The exact H2:CO ratio that is required depends on the Fischer–Tropsch technology and the design of Fischer–Tropsch gas loop. The H2:CO ratio can also be adjusted during syngas conditioning (Section 1.2.3).

Natural gas is already gaseous and it has no associated mineral matter to contend with. The two main conversion technologies for feed-to-syngas conversion are steam reforming and adiabatic oxidative reforming.

Steam reforming is the dominant process for hydrogen production in refineries, and it is able to convert hydrocarbon feed materials ranging from natural gas to heavy naphtha. A steam reformer is essentially a reactor that consists of a fired heater with catalyst-filled tubes placed in the radiant zone of the fired heater. The heat needed for reforming, which is an endothermic conversion, is externally supplied by burning a fuel in the fired heater. The feed consists of a mixture of hydrocarbons and steam (H2O). The syngas thus produced has a high H2:CO ratio; a H2:CO > 2 is typical. When syngas is prepared for Fischer–Tropsch synthesis, steam can be partially substituted by carbon dioxide (CO2) to lower the H2:CO ratio in the syngas [13].

Adiabatic oxidative reforming produces a syngas with a lower H2:CO ratio; a H2:CO ratio in the range 1.6–1.9 is typical. The feed consists of a methane-rich hydrocarbon source, an oxidant (air or oxygen), and, in some instances, steam. The heat needed for reforming is directly supplied by combustion of part of the feed. This allows for a more compact design than a steam reformer. However, in the case of oxygen-fired reformers, it has the disadvantage of requiring an associated air separation unit (ASU), which is not required by a steam reformer.

Solid feed materials have to be gasified in order to p...
