1

In-situ Synthesis of Polymer Nanocomposites

Vikas Mittal

1.1 Introduction

It was the pioneering work of Toyota researchers toward the development of polymeric nanocomposites in the early 90s [1, 2], in which electrostatically held 1-nm-thick layers of the layered aluminosilicates were dispersed in the polyamide matrix on a nanometer level, which led to an exponential growth in the research in these layered silicate nanocomposites. These nanocomposites were based on the in-situ synthesis approach in which monomer or monomer solution was used to swell the filler interlayers followed by polymerization. Subsequently, Giannelis and coworkers [3, 4] also reported the route of melt intercalation for the synthesis of polymer nanocomposites.

Montmorillonite has been the most commonly used layered aluminosilicate in most of the studies on polymer nanocomposites. The general formula of montmorillonites is M_x(Al_4−xMg_x)Si₈O₂₀(OH)₄ [5, 6]. Its particles consist of stacks of 1-nm-thick aluminosilicate layers (or platelets) with a regular gap in between (interlayer). Each layer consists of a central Al-octahedral sheet fused to two tetrahedral silicon sheets. In the tetrahedral sheets, silicon is surrounded by four oxygen atoms, whereas in the octahedral sheets, aluminum atom is surrounded by eight oxygen atoms. Isomorphic substitutions of aluminum by magnesium in the octahedral sheet generate negative charges, which are compensated for by alkaline-earth- or hydrated alkali-metal cations. Owing to the low charge density (0.25–0.5 equiv. mol⁻¹) of montmorillonites, a larger area per cation is available on the surface that leads to a lower interlayer spacing in the modified montmorillonite after surface ion exchange with alkyl ammonium ions. On the contrary, the minerals with high charge density (1 equiv. mol⁻¹) like mica have much smaller area per cation and can lead to much higher basal plane spacing after surface modification; however, owing to very strong electrostatic forces present in the interlayers due to the increased number of ions, these minerals do not swell in water and thus do not allow the cation exchange. In contrast, aluminosilicates with medium charge densities of 0.5–0.8 equiv. mol⁻¹ like vermiculite offer a potential of partial swelling in water and cation exchange that can lead to much higher basal plane spacing in the modified mineral if optimum ion exchange is achieved. Vaia et al. [7] also proposed further insight into the positioning of the surface modification molecules on the surface of the filler based on FTIR experiments. By monitoring frequency shifts of the asymmetric CH₂ stretching and bending vibrations, they found that the intercalated chains exist in states with varying degrees of order. In general, as the interlayer packing density or the chain length decreases (or the temperature increases), the intercalated chains adopt a more disordered, liquid-like structure resulting from an increase in the gauche/trans conformer ratio.

Nanocomposites with a large number of polymer matrices have been synthesized and significant enhancements in the composite properties have been reported. The improvement in the mechanical properties of the nanocomposites is generally reported, though a synergistic enhancement in the other composite properties like gas barrier resistance is also generally achieved. Figure 1.1a demonstrates the decrease in oxygen permeation through the polyurethane, epoxy, and polypropylene nanocomposites as a function of inorganic filler volume fraction [8–10]. Figure 1.1b also shows the improvement in mechanical properties of the polypropylene and polyethylene nanocomposites as a function of filler volume fraction [11–13]. The polypropylene composites have been generated by using two different filler surface modifications containing ammonium and imidazolium ions. The microstructure of the nanocomposites is also ideally classified as unintercalated (phase separated), intercalated, and exfoliated composites. The composite microstructure is classified as exfoliated when the filler platelets are completely delaminated into their primary nanometer scale size and the platelets are far apart from each other so that the periodicity of this platelet arrangement is totally lost. When a single or sometimes more than one extended polymer chain is intercalated into the clay interlayers, but the periodicity of the clay platelets is still intact, such a microstructure is termed as intercalated. On the basis of the interfacial interactions and mode of mixing of the organic and inorganic phases, it is possible that both the phases do not intermix at all and a microcomposite or unintercalated composite is formed. Transmission electron microscopy (TEM) and X-ray diffraction (XRD) are the most commonly used methods to characterize the microstructure of the nanocomposites. Figure 1.2 shows the TEM micrographs depicting the various idealized morphologies of the polymer nanocomposite structures [15]. However, it should be noticed that these classifications of the composite microstructure as exfoliated and intercalated are not very realistic as generally in reality a mixture of different morphologies is present. Figure 1.3 also shows the three idealized morphologies of immiscible, intercalated, and exfoliated composites [16]. The presence or absence of diffraction peaks in the XRD of the composites is used to assess information about the microstructure of the composites. The intensity of the X-ray diffractograms is generally taken as a measure to classify the microstructure as intercalated or exfoliated. However, it should be noticed that the X-ray signal are very qualitative in nature and are strongly influenced by the sample preparation, orientation of the platelets, as well as defects present in the crystal structure of the montmorillonites. Therefore, the classification of the nanocomposite microstructure just based on the intensity can be faulty. Also, the presence of diffraction signal in the diffractograms of the composite does not mean that 100% of the microstructure is intercalated and it is quite possible to have significant amount of exfoliation present in the composite. Similarly, absence of diffraction signal also does not guarantee the complete exfoliation as small or randomly oriented intercalated platelets may still be present in the composite.

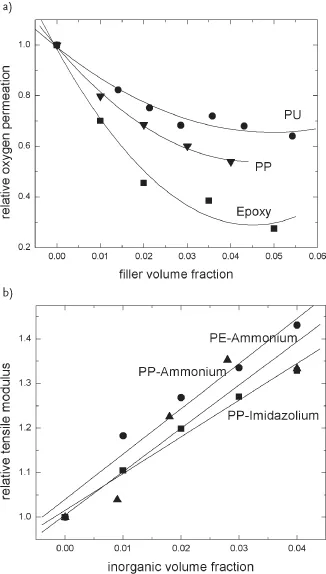

Figure 1.1 (a) Relative oxygen permeation and (b) relative tensile modulus of various polymer nanocomposites as a function of filler volume fraction [8–13].

Reproduced from Ref. [14].

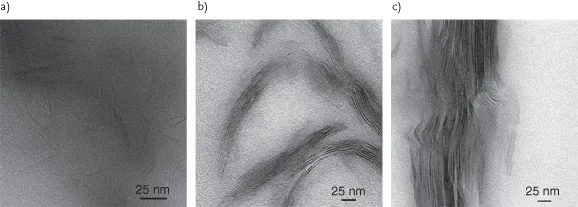

Figure 1.2 TEM micrographs indicating various possible morphologies in the composites as a function of the filler distribution: (a) exfoliated, (b) intercalated, and (c) unintercalated.

Reproduced from Ref. [15] with permission from Wiley.

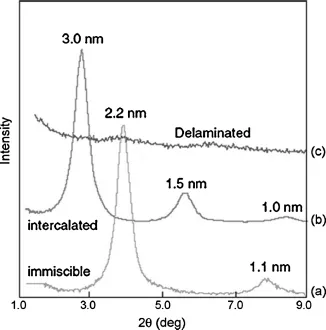

Figure 1.3 XRD patterns of immiscible, intercalated, and exfoliated composites.

Reproduced from Ref. [16] with permission from Elsevier.

Many factors influence the microstructure and hence the properties of the nanocomposites. The first of such factors is the surface modification of the filler and its interaction with the polymer. The modification is required to make the filler organophilic and to push the filler interlayers apart, thus providing possibilities for polymer intercalation. Table 1.1 details the various kinds of surface modifications commonly used to modify the filler surface. The basal plane spacing of the filler resulting after the surface modification is also provided. The modifications differ in many aspects such as chain length, density of the chains in the surface modification molecule, and chemical architecture. The modification molecules have specific interactions with the matrix polymer and these interactions are responsible for the ability of the filler to exfoliate or delaminate in the polymer matrix [8, 9]. Figure 1.4 shows an exampl...
