Many books on ECG interpretation use simulated ECG tracings. Most of the traces that you find in this book are from real people and of the quality that you will be expected to interpret from in practice. The second edition of worldwide popular 'The ECG Workbook' continues with a straightforward, systematic approach to ECG interpretation and includes: -TWO NEW chaptersCommon Arrhythmias explains five of the most common types of arrhythmia: Atrial Fibrillation, Atrial Flutter, Ventricular Tachycardia, Supraventricular Tachycardia and Ventricular Fibrillation, and a whole chapter is devoted to Ectopics and Extrasystoles.Contents include: Recording a readable electrocardiogram (ECG) The electrical conducting system of the heart A systematic approach to rhythm strip analysis Heart blocks Common Arrhythmias Ectopics and Extrasystoles The 12 lead ECG Axis deviation Ischaemia, injury and necrosis Sites of infarction Bundle branch blocks Chamber enlargement A systematic approach to ECG interpretation

Chapter 1

Recording a readable electrocardiogram (ECG)

An ECG is a graphic tracing of electrical patterns produced by the heart. This test is frequently used for patients who have heart problems and is an important diagnostic procedure. However, the ECG has limitations and so it is important to evaluate it in conjunction with the patient’s clinical status. ECG abnormalities can occur in healthy individuals; and it can also be possible for a person to have a heart attack and yet have a normal ECG. The nature of the abnormality and its effect on the patient influence the clinical importance of the findings, so the ECG should never be used in isolation.

Before we start to interpret the ECG, it is important to learn how to obtain a readable recording (see fig 1.1). We will learn in the following chapters that slight changes can have huge implications for the patient. These days it is common for ancillary staff to take on the task of recording ECGs. To the untrained eye a recording may seem readable but it is not until we learn to interpret an ECG recording that we really gain an understanding of the importance of producing a readable tracing. It is possible to misdiagnose patients or miss their diagnosis if the recording is not clear.

Before interpreting the ECG, it is therefore essential to ensure that the recording was obtained correctly. Common errors are incorrect paper speed and standardisation, artefact and incorrect lead placement. Any of these problems can make it extremely difficult, and in some cases impossible, to measure the intervals and the segments that we are going to learn about in this book.

Paper speed and standardisation

The ECG is made up of a series of horizontal and vertical lines that measure the duration and amplitude of the various deflections. The small boxes on the paper are 1 millimetre (mm) in height and I mm in width. The amplitude of the ECG deflection is measured vertically and the duration of the ECG event horizontally. Recordings are usually made at 25 mm per second (mm/s). It is therefore important to ensure that the ECG machine has not been set, at say, 50mm/s before the ECG is recorded. The paper speed should be printed on the ECG itself when it is recorded (see fig 1.2).

A standard deflection (a box that looks like half a rectangle) should be inscribed at the beginning or end of the ECG. The ECG is usually standardised so that the amplitude of a 1 millivolt impulse causes a deflection of 10 mm (see fig 1.3). An increased amplitude (or voltage) usually indicates increased muscle mass of the heart.

Note: If the ECG is not set at 25 mm/s, all the usual ECG measurements that we are about to learn will not apply.

Figure 1.1: A 12 lead ECG with many normal features

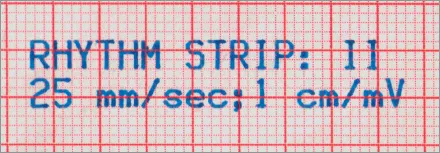

Figure 1.2: The paper (or ‘sweep’) speed printed on an ECG.

Figure 1.3: The standard deflection at the end of an ECG.

Artefact

To obtain a good-quality ECG tracing you need to make sure that there is no outside interference, as this can create artefact. The three most common causes of artefact are:

1 mains interference

2 patient movement

3 wandering baseline.

Mains interference

Mains interference may produce a fuzzy trace. Too much or too little heat stimulus will produce a tracing that is too thick or too faint. Mains interference usually comes from electrical interaction at or near the patient’s bedside. For this reason, any pumps or electric fans situated nearby should be switched off or left to run on battery while the ECG is being recorded. Interference can also occur if the patient is in contact with metal, such as the end of the bed, or if an ECG lead is in contact with metal (e.g. touching a watch) or the ECG leads are tangled. Recording the ECG with the machine on battery status instead of mains also helps to eliminate mains interference.

Patient movement

If the patient is tense or moving during the recording, artefact will result. What may be a routine procedure to a healthcare professional is not always a routine procedure to a patient. Learning that the healthcare professional wants to take a tracing of their heart is not exactly conducive to relaxation! For instance, patients have been known to express concern that they might get electrocuted if the healthcare professional gets the leads in the wrong order! For all these reasons it is important to explain to the patient the aim of the procedure, that it will not hurt, that it will only take a few minutes and that it will help if they can relax as much as possible, as this will produce a clearer recording. It is often helpful to ask patients to close their eyes and imagine themselves somewhere relaxing.

Many patients feel embarrassed about having their chests exposed for an ECG recording. Always ensure their privacy during the recording. Remember also that some patients may concentrate on your facial expression in an attempt to assess your reaction to the ECG as it is being printed. You should therefore try to keep your expression as neutral as possible.

Wandering baseline

Wandering baseline makes it difficult to identify ECG changes, as many of these changes are measured from the baseline. This problem is often caused by poor electrode contact with the skin. You might need to ask permission to shave some of the hair off the patient’s chest in order to obtain good electrode contact. It may also be necessary to dry the skin if the patient is sweating, or clean the skin if talcum powder has been applied. Ensure that the skin is completely dry after cleaning.

Lead placement

ECG electrodes must be placed in the correct positions on the body. If they are not, changes could appear on the recording that are simply caused by looking at the heart from a slightly different angle. This could easily lead to misdiagnosis. It would also make comparison of the patient’s ECG recordings unreliable.

The limb leads are labelled: R (right), L (left), F (foot) and N (neutral). The R lead should be attached to the patient’s inner, right wrist; the L lead to the inner, left wrist; the F lead to the inner left leg (just above the ankle); and the N lead in the same position on the right leg (see fig 1.4).

Ideally electrodes should be placed over fleshy surfaces, as flesh conducts electricity much better than bone. It is important to have the leads the right way round, otherwise this could change the polarity of the ECG complexes. What is being measured from these leads is simply the difference in electrical potential between two points, so if these points vary slightly (e.g. in a patient with an amputation), one would simply attach the leads higher up the leg.

It is vital, however, to get the position of the chest electrodes correct (see fig 1.5):

1 V1 should be positioned in the fourth intercostal space counting down from the patient’s right sternal notch on the right sternal edge;

2 V2 should be positioned in the fourth intercostal space counting down from the patient’s left sternal notch on the left sternal edge;

3 V3 should be positioned midway between V2 and V4;

4 V4 should be positioned in the fifth intercostal space, counting down from the middle of the patient’s clavicle;

5 V5 should be positioned in line with V4 but on the anterior axillary line;

6 V6 should be positioned in line with V4 but in the midaxillary line.

The position of the patient will also make a difference to the ECG recording, as different positions alter the way the heart lies within the chest wall. The ECG should be recorded with the pat...
