Thermal and Catalytic Processes in Petroleum Refining

Serge Raseev

• Publisher: CRC Press
• Year: 2003
• eBook ISBN: 9781135545598
• Topic: Physical Sciences
• Subtopic: Chemistry
• Index: Chemistry

This text examines the thermal and catalytic processes involved in the refining of petroleum including visbreaking, coking, pyrolysis, catalytic cracking, oligomerization, alkylation, hydrofining, hydroisomerization, hydrocracking, and catalytic reforming. It analyzes the thermodynamics, reaction mechanisms, and kinetics of each process, as well as

1

Thermodynamic Analysis of Technological Processes

The thermodynamic study of technological processes has two objectives:

Determination of the overall thermal effect of chemical transformations that take place in the industrial process

Determination of the equilibrium composition for a broad range of temperatures and pressures in order to deduce optimum working conditions and performances

The manner in which the two objectives are approached within the conditions of chemical technology is different from the classical approach and requires the use of the specific methodology outlined in this chapter.

1.1 Calculation of the Overall Thermal Effect

In practical conditions under which technological processes operate, the main reaction may be accompanied by secondary reactions. In many cases the transformation is of such complexity that it cannot be expressed by a reasonable number of chemical reactions.

When calculating the heat of reaction in such situations, in order to avoid the difficulties resulting from taking into account all reactions many times in the calculation, simplified approaches are taken. Thus, one may resort to the approximation of limiting the number of the reactions taken into consideration, or to take account only the main reaction. Such approximations may lead to significant errors.

Actually, the exact value of the thermal effect can be calculated without having to resort to such approximations. Since the thermal effect depends only on the initial and the final state of the system (the independence of path, as stipulated by the second principle of thermodynamics), it may be calculated based on the initial and final compositions of the system, without having to take in account the reactions that take place.

Accordingly, the classic equations, which give the thermal effect of a chemical reaction:

may be written under the form:

The heats of formation ΔH_f and of combustion ΔH_C for hydrocarbons and organic compounds, which are of interest in studying petrochemical processes, are given in thermodynamic data books [1,2]. The values are usually given for temperature intervals of 100 K, within which linear interpolation is accurate. Thus, the calculations that use the heat capacities may be avoided.

Example 1.1 shows how to perform the calculations by means of relations (1.3) and (1.4).

Example 1.1. Compute the overall thermal effect of an industrial dehydrogenation process of isopentane to isoprene at 600°C.

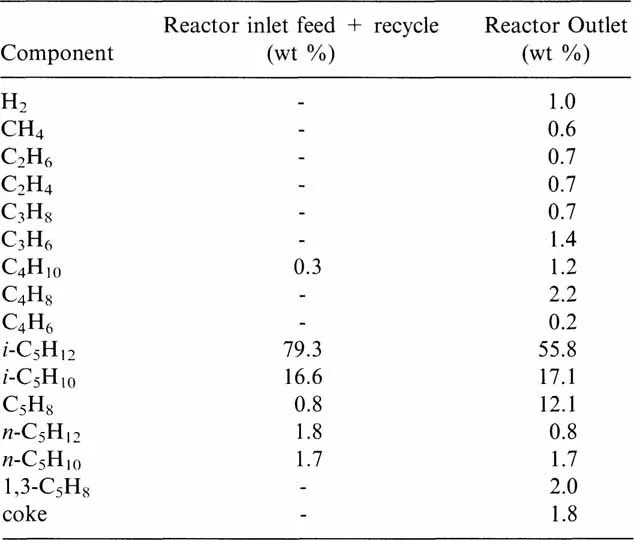

The composition of the streams at the inlet and outlet of the reactor is given in Table 1.1. The coke composition by weight, is 95% carbon and 5% hydrogen.

Table 1.1

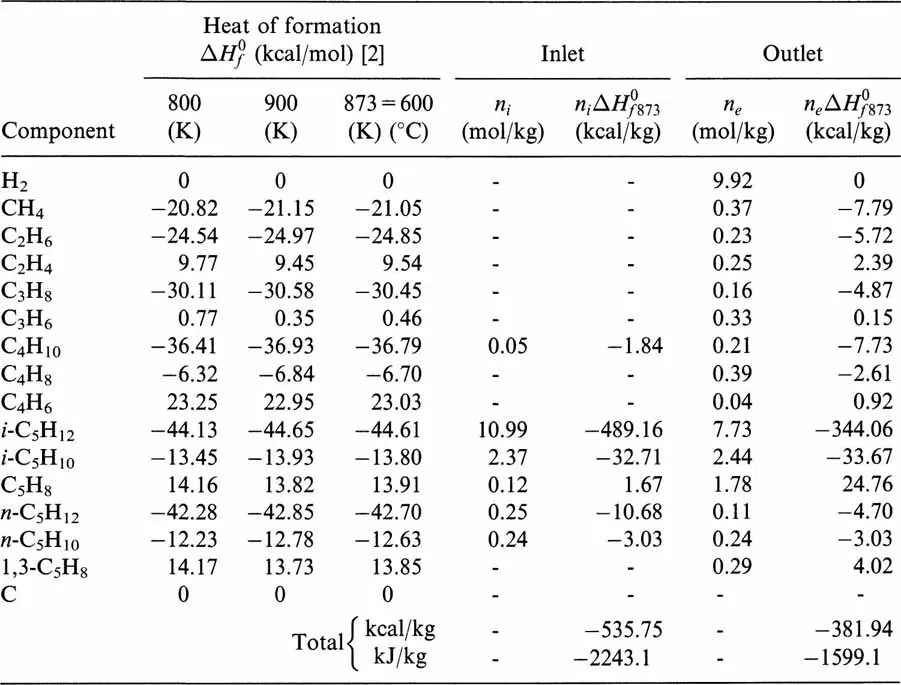

The calculations of the heat of formation at the inlet and the outlet of the reactor at 600°C are collected in Table 1.2.

Table 1.2

According to Eq. (1.3), the overall thermal effect per unit mass (kg) of feed will be:

Since the process is performed at a temperature much above the critical point and at low pressure, no deviations from the ideal state have to be considered.

In many cases it is convenient to express the thermal effect on the basis of the reacted isopentane or of the formed isoprene.

For this example, according to Table 1.1, 793 − 558 = 235g, isopentane reacts and 121 − 8 = 113g, isoprene is formed. In these conditions, the thermal effect expressed per mole of reacted isopentane is:

and per mole of produced isoprene:

If only the main reaction:

is taken into account, then according to the Eq. (1.1) one obtains:

the value being the same whether expressed per mole of isopentane or of isoprene.

This example shows that large errors may result if the computation of the overall thermal effect is not based on the real compositions of the inlet and outlet streams of the reactor.

Eq. (1.4) makes it possible to compute the thermal effects by using the heats of combustion. This is useful for the conversion of petroleum fractions of other feedstocks consisting of unknown components. In such cases it is usually more convenient to perform the calculation in weight units, by modifying the terms n and AH accordingly.

For liquid petroleum fractions, the heats of combustion may be determined by using the graph of Figure 1.1 [3], from the known values of the specific gravity and the characterization factor.

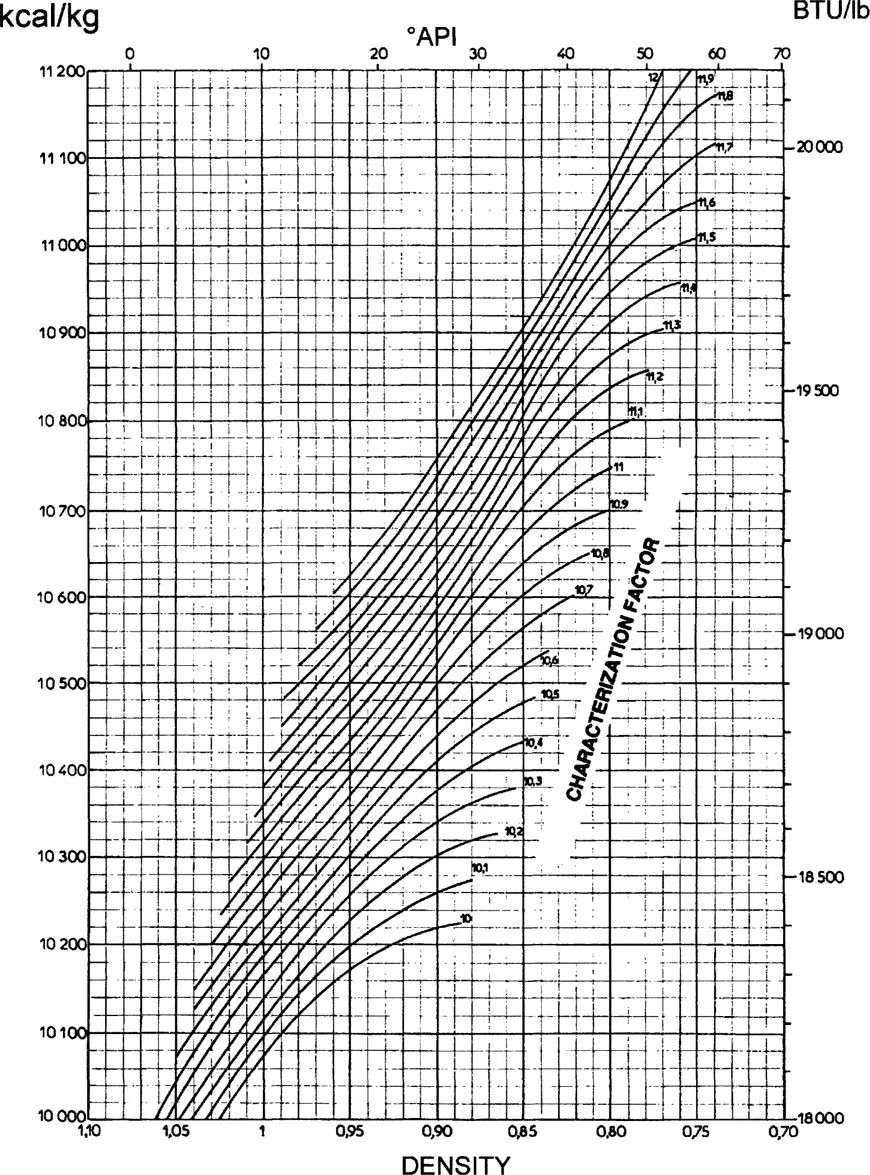

Figure 1.1 Heat of combustion of petroleum fractions. Final state: gaseous CO₂ and liquid water at 15°C.

The characterization factor of residues may be determined graphically from the viscosity, by means of Figure 1.2 [3].

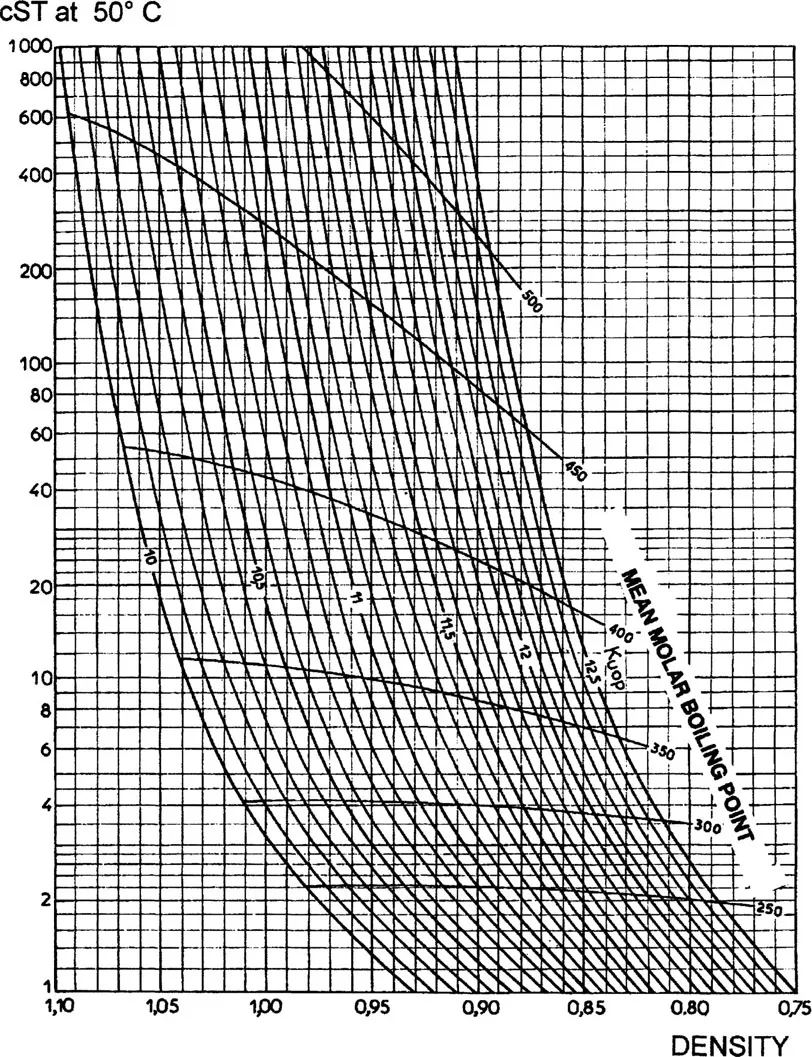

Figure 1.2 K_UOP as function of the kinematic viscosity and density.

The heat of combustion of coke is determined experimentally or less precisely on the basis of the elementary composition.

The heats of combustion of gaseous components may be found in data books [1,2], or may be calculated from the heats of formation [2], by applying Eq. (1.1). For hydrocarbons, this equation takes the form:

This heat of combustion of gases must be brought to the same reference state as that of liquid fractions, i.e. 15°C and liquid water. For these conditions, Eq. (1.5) becomes:

It must be noted that Eq. (1.6) gives the heat of combustion in thermodynamic notation, expressed in kJ/mole. ...
