Soil Appliances (1)
A Selection of W.C. Pans
SfB74

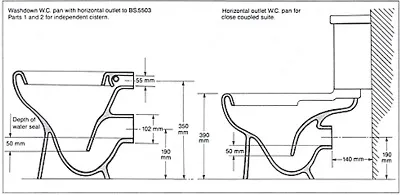

WASHDOWN WATER CLOSET PAN TO BS.5503:1981

DEFINITIONS OF SOIL APPLIANCE

‘A sanitary appliance for the collection and discharge of excretory matter’ (C.P.305)

As used for interpretation of The Building Regulations—‘Soil appliance includes a water closet or urinal receptacle, bed-pan washer, bed-pan sink and slop sink’.

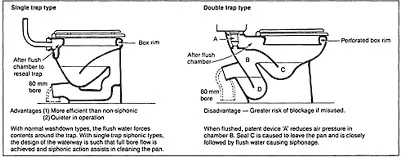

SIPHONIC TYPES

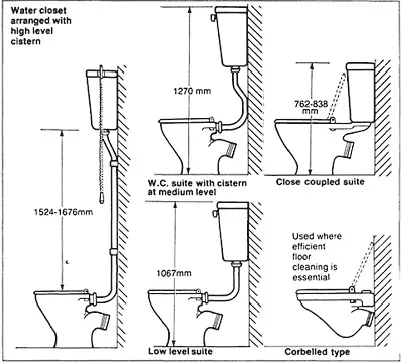

VARIOUS W.C. ARRANGEMENTS

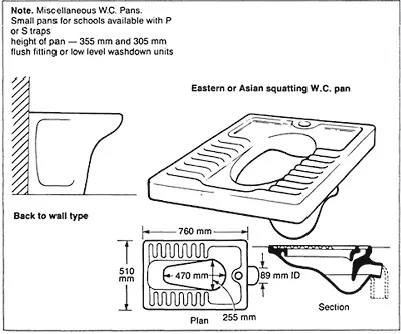

MISCELLANEOUS WATER CLOSET PANS

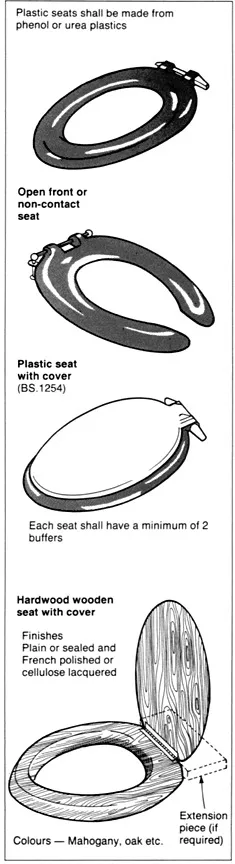

W.C. SEATS

Soil Appliances (2)
A Selection of Urinals
SfB74

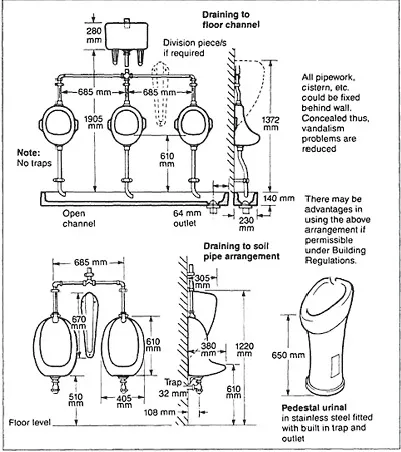

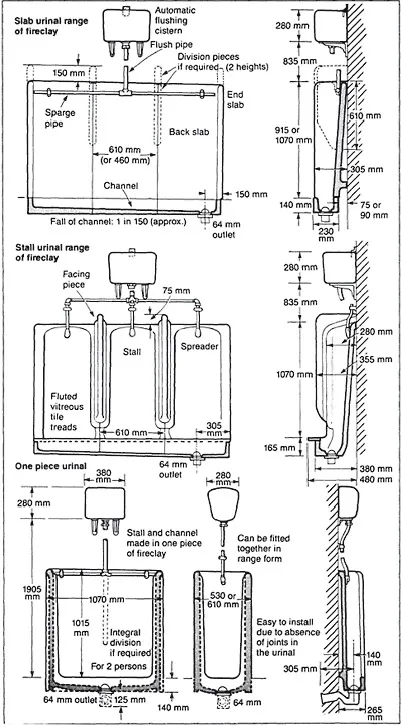

TYPES OF URINAL

There are three main types of urinal:

1. Made to measure slab urinals, with or without divisions;
2. Slab urinal ranges in modules, i.e. two persons to give persons; and
3. one-piece urinal available with concealed pipework for high risk areas.

The above units are cistern fed; which can be connected to a water saving device i.e. electronically operated solenoid valve, flow control device with illuminated manual on/ off switch.

BS.6465 Part 1:1984 states that the provision of bowl type urinals should only be considered for areas of low risk where responsibility in use can be anticipated.

Slab and stall urinals should be flushed by means of a spreader or perforated sparge pipe which should cleanse the whole surface likely to be fouled.

TROUGHS

STALL URINAL • SLAB URINAL • ONE PIECE URINAL

BOWL URINALS

SQUATTING URINAL

TREAD DETAILS

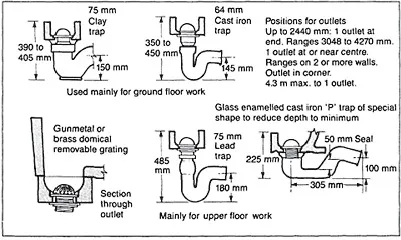

OUTLETS AND TRAPS

BOWL URINAL RANGES (in vitreous china)

ANTI SPLASH

Soil Appliances (3)
Flushing Apparatus
SfB74

VALVELESS W.C. CISTERNS

Operated by means of a syphon, this type is termed a ‘waste water preventer’, and is generally the only type permitted in the U.K. It has a capacity of 9 litres.

Dual flush is a...
