Some Basics

In the following chapters we will use some special terms that are perhaps not so familiar to a beginner. Some explanations should make the world of microcontroller terms and functionality more transparent.

1.1 Architecture

All microcontrollers have more or less the same function groups. Internally we find memory for instructions and data and a central processing unit (CPU) for handling the program flow, manipulating the data, and controlling the peripherals.

Figure 1-1 shows the basic function blocks in a microcontroller. The CPU communicates with each of these function blocks (memory and peripherals).

Figure 1-1 Microcontroller function blocks.

To build a powerful microcontroller, it is important to reduce the tasks carried out from the CPU itself and to optimize the handling of the remaining tasks.

On the left side of Figure 1-1, peripherals are arranged. These peripherals react with the world outside, or in more technical terms, with the process. In modern microcontrollers, the peripherals relieve the CPU by handling the external events separately.

In an asynchronous serial communication, for example, the CPU transmits the character to be sent only to the serial port. The required serialization and synchronization are performed by the serial port itself. On the other side, receiving a character is important for the CPU only when all bits are stored in a buffer and are ready for an access of the CPU.

A port is built by a certain number of connections between the microcontroller and the process, often a factor of 8. It usually supports a bitwise digital input and/or output (I/O).

Serial ports communicate with other external components by means of serial communication protocols. Asynchronous and synchronous serial communications must be differentiated. Both kinds of serial communication have their own building blocks—Universal Asynchronous Receiver and Transmitter (UART) for asynchronous communication, and Serial Peripheral Interface (SPI) for synchronous communication. In Figure 1-1 this differentiation is not shown.

Because the microcontroller is designed for process-related applications with real-time character, some other function groups are implemented in a microcontroller.

Modern microcontrollers have a fairly comfortable interrupt system. An interrupt breaks the running program to process a special routine, called the interrupt service routine. Some external events require an immediate reaction. These events generate an interrupt; the whole system will be frozen, and in an interrupt service routine the concerning event is handled before the program goes on. If the microcontroller has to process many interrupts, an interrupt controller can be helpful.

To fulfill timing conditions, microcontrollers have one or more timers implemented. The function blocks usually work as timer and/or counter subsystems. In the simplest case, we have an 8-bit timer register. Its contents will be incremented (or decremented) with each clock cycle (CLK). Any time the value 255 (or 0) is reached, the register will overflow (or underflow) with the next clock. This overflow (or underflow) is signalized to the CPU. The actual delay depends on the preload value.

If the preload value equals zero, then the overflow will occur after 256 clock periods. If the preload value equals 250, in an up-counter the overflow will occur after six clock cycles. A block diagram of a simple timer is shown in Figure 1-2.

Figure 1-2 Timer.

Last but not least, we had in Figure 1-1 an AD/DA subsystem. For adaptions to a real-world process, analog-to-digital and/or digital-to-analog converters are often required. This is not the place to discuss all features of these more or less complex subsystems. Some microcontrollers include such an AD/DA subsystem or can control an external one. In other cases, only analog comparators are integrated.

Thus, each peripheral has its own intelligence for handling external events and to realize preprocessing.

On the right side of Figure 1-1, we find the microprocessor part (CPU and memory). The memory contains program and data. CPU and memory are connected through a bus system. This architecture—called “von Neumann” architecture—has some drawbacks.

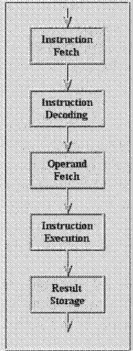

In Figure 1-3 instruction handling is explained. Before an instruction can be operated, it must first be fetched from memory. Next, the program counter must be incremented. After this incrementation, the program counter points to the next instruction in memory. Before execution of the fetched instruction, it has to be decoded. As a result of this decoding, further memory accesses for operands or addresses are possible. The instruction execution includes arithmetic or logical operations, followed by storage of the result back to the memory.

Figure 1-3 Instruction handling.

It seems not so difficult to understand that the handling of one instruction requires more than one memory access. Usually, one instruction manipulates one data byte. Therefore, several memory accesses are inconsistent with the manipulation of one data byte by one instruction.

Very large scale integration (VLSI) technology has made it possible to build very fast CPUs. However, slow memory access times inhibits this evolution. This fundamental problem of the von Neumann architecture is called the “von Neumann bottleneck.”

To avoid these limitations, system designers implement some sort of cache memory—a fast memory buffer between the main memory and the CPU. Another, and most recent approach, is to separate the paths to the memory system for instructions and data—the “Harvard” architecture.

The RISC design philosophy also tries to eliminate the “von Neumann bottleneck” by strict limitation of memory operations by means of many internal registers.

In order to increase performance, pipelining is widely used in modern microprocessor architectures. A basic linear pipeline consists of a cascade of processing stages.

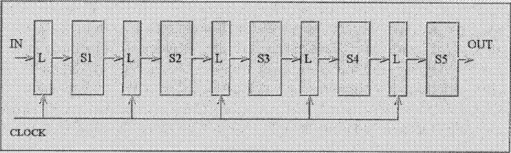

The instruction unit in a microprocessor architecture can consist of pipeline stages for instruction fetch, instruction decode, operand fetch, execute instruction, and store results. Using such a technique for preparing an execute operation allows a new instruction to be executed every clock cycle. In this design, five different instructions are flowing simultaneously in the pipeline. Figure 1-4 shows an instruction pipeline for all steps of the instruction handling according to Figure 1-3.

Figure 1-4 Instruction pipeline.

All blocks in the pipeline are pure combinational circuits performing arithmetic or logic operations over the data stream flowing through the pipeline. T...
