Atlas of Pituitary Imaging

The basic understanding and interpretation of magnetic resonance imaging (MRI) is important for many clinicians outside of the field of radiology, especially for endocrinologists who may have received limited formal training in such areas. Combining a detailed clinical history, lab data, and images may provide the endocrinologist an upper hand in evaluating patients with pituitary disorders. Accordingly, it is important that endocrinologists be familiar with reviewing pituitary images. The purpose of this atlas is to provide readers with a simple approach for the evaluation of pituitary images. This review does not preclude timely review of pituitary cases with a neuroradiologist. It needs to be emphasized that the best patient outcome usually requires a multidisciplinary team of endocrinologists, radiation oncologists, and neurosurgeons.

Keywords

Adenoma; computed tomography (CT); CSF; magnetic resonance imaging (MRI); pituitary; pre- and postcontrast; sellar mass; T1- and T2-weighted

Introduction

The basic understanding and interpretation of magnetic resonance imaging (MRI) is important for many clinicians outside of the field of radiology, especially for endocrinologists who may have received limited formal training in such areas. Combining a detailed clinical history, lab data, and images may provide the endocrinologist with an upper hand in evaluating patients with pituitary disorders. Accordingly, it is important that endocrinologists be familiar with reviewing pituitary images. The purpose of this atlas is to provide readers with a simple approach for the evaluation of pituitary images. This review does not preclude timely review of pituitary cases with a neuroradiologist. It needs to be emphasized that the best patient outcome usually requires a multidisciplinary team of endocrinologists, radiation oncologists, and neurosurgeons.

MRI is the imaging modality of choice to evaluate pituitary disorders since it provides a detailed anatomy of the pituitary gland and surrounding structures, particularly the soft tissues. MRI utilizes the application of a strong static magnetic field to align some of the protons within water molecules, and radiofrequency fields to alter their alignments and produce a signal that is detectable outside the body. Various characteristics of the subsequent relaxation process of these protons are used to construct detailed images of the anatomy. Since different tissues have different relaxation properties, images can be generated with exquisite tissue contrast. Furthermore, different MRI sequences can produce different styles of tissue contrast – for example, T1-weighted or T2-weighted images.

Computed tomography (CT) of the sella will be discussed briefly since an MRI may not be appropriate in all patients (e.g., those with a cardiac pacemaker). At the same time, CT may provide the necessary imaging for some patients at lower cost, provide high-resolution and sensitive visualization of any calcifications associated with lesions, and provide superior distinction of osseous anatomy to help guide medical decision-making or surgical procedures.

Normal Pituitary Gland Anatomy

The pituitary gland projects from the inferior aspect of the hypothalamus, maintaining a functional connection via the infundibulum (pituitary stalk) (Figure 1.1). It resides in a saddle-like bone cavity referred to as the sella turcica, and is covered by a dural fold (diaphragm sella). Superior to the pituitary gland is the suprasellar cistern containing the optic chiasm. Lateral to the sella turcica are the cavernous sinuses (a large, thin-walled venous plexus), which contain the internal carotid artery and cranial nerves III (oculomotor), IV (trochlear), V [trigeminal, branches V1 (ophthalmic) and V2 (maxillary)], and VI (abducens). See Figure 1.1 for a schematic representation.

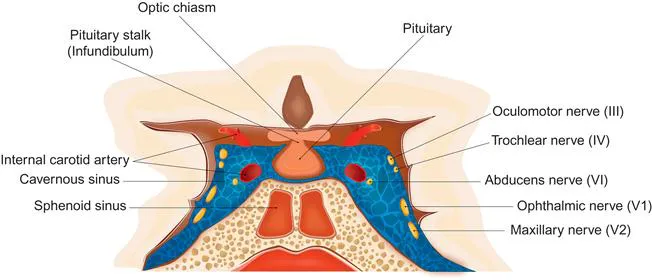

Figure 1.1 Schematic of normal pituitary gland anatomy.

The pituitary gland is comprised of anterior and posterior lobes. The intermediate lobe, located between the anterior and posterior pituitary, is rudimentary in humans, and usually absent after birth. The anterior pituitary secretes hormones under the influence of the hypothalamus, the main hormones being growth hormone (GH), thyroid-stimulating hormone (TSH), adrenocorticotropic hormone (ACTH), prolactin (PRL), and the gonadotropins [luteinizing hormone (LH) and follicle-stimulating hormone (FSH)]. The posterior pituitary secretes oxytocin and antidiuretic hormone.

MRI Interpretation

I. The first step in interpreting MR imaging is to correctly identify T1- and T2-weighted (Figure 1.2A and B) and pre- and postcontrast images (Figure 1.3A–D). These different images complement one another and are both useful in characterizing sellar anatomy and pathology.

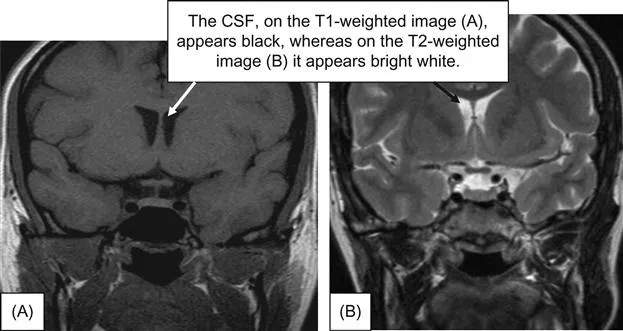

Figure 1.2 (A) Coronal T1-weighted image without contrast, and (B) coronal T2-weighted image.

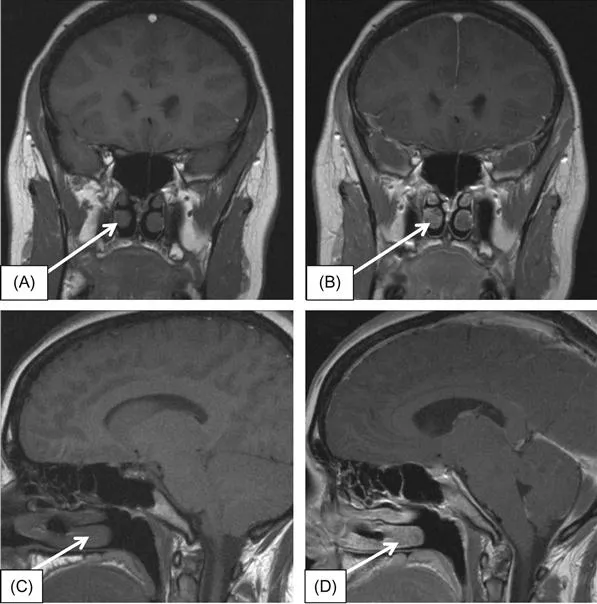

Figure 1.3 (A) T1-weighted coronal image precontrast, (B) T1-weighted coronal image postcontrast, (C) T1-weighted sagittal image precontrast, and (D) T1-weighted sagittal image postcontrast.

T1-weighted images can easily differentiate fat and water from other common intracranial tissues: fat appears brighter, water appears darker. T2-weighted images have a similar capacity but with opposite features: fat appears darker, and water appears brighter. Thus, within the head, the most common T2-weighted bright object is the cerebrospinal fluid (CSF), and this is particularly evident in the cisterns surrounding the sella. In practice, directing one’s attention immediately to the lateral cerebral ventricles will easily assist the viewer in differentiating T1- and T2-weighted images; the CSF will appear black on T1-weighted images (Figure 1.2A) and white on T2-weighted (Figure 1.2B) images. Both T1- and T2-weighted images contrast the gray and white matter. Figure 1.2A was obtained from a previous publication by our group [1].

II. After distinguishing T1- and T2-weighted images, the next step is to identify the pre- and postcontrast T1-weighted images. For physicians with less familiarity with pituitary imaging, looking at the nasal conchae is an easy way to differentiate between pre- and postcontrast images. In precontrast images (Figure 1.3A and C), the nasal conchae have intensity similar to the brain gray matter (isointense); however, on postcontrast images (Figure 1.3B and D), the nasal conchae appear brighter than the gray matter (hyperintense). Note that the pachymeninges (dura mater) and falx also show conspicuous brightening after gadolinium administration. MRI contrast agents (which use a water-soluble gadolinium chelate...
