Chapter 1

A brief history of process intensification

Objectives In this Chapter

The objectives in this chapter are to summarise the historical development of process intensification, chronologically and in terms of the sectors and unit operations to which it has been applied.

1.1 Introduction

Those undertaking a literature search using the phrase ‘process intensification’ will find a substantial database covering the process industries, enhanced heat transfer and, not surprisingly, agriculture. For those outside specialist engineering fields, ‘intensification’ is commonly associated with the increases in productivity in farming of poultry, animals and crops where, of course, massive increases in yield for a given area of land can be achieved. The types of intensification being discussed in this book are implemented in a different manner, but have the same outcome.

The historical aspects of heat and mass transfer enhancement, or intensification, are of interest for many reasons. We can examine some processes that were intensified some decades before the phrase ‘process intensification’ became common in the process engineering (particularly chemical) literature. Some used electric fields, others employed centrifugal forces. The use of rotation to intensify heat and mass transfer has, as we will see, become one of the most spectacular tools in the armoury of the plant engineer in several unit operations, ranging from reactors to separators. However, it was in the area of heat transfer – in particular two-phase operation – that rotation was first exploited in industrial plants. The rotating boiler is an interesting starting point, and rotation forms the essence of PI within this chapter.

It is, however, worth highlighting one or two early references to intensification that have interesting connections with current developments. One of the earliest references to intensification of processes was in a paper published in the US in 1925 (Wightman et al.). The research carried out by Eastman Kodak in the US was directed at image intensification – increasing the ‘developability’ of latent images on plates by a substantial amount. This was implemented using a small addition of hydrogen peroxide to the developing solution.

T.L. Winnington (1999), in a review of rotating process systems, reported work at Eastman Kodak by Hickman on the use of spinning discs to generate thin films as the basis of high-grade plastic films (UK Patent, 1936). The later Hickman still, alluded to in the discussion on separators later in this chapter, was another invention of his. The interesting aspect that brings the application of PI in the image reproduction area right into the twenty-first century is the current (2007) activity at Fujifilm Imaging Colorants Ltd in Grangemouth, Scotland, where a three-reactor intensified process has replaced a very large ‘stirred pot’ in the production of an inkjet colorant used in inkjet printer cartridges. The outcome was production of 1 kg/h from a lab-scale unit costing £15 000, while a commercial plant not involving PI for up to 2 tonnes/annum would need a 60 m³ vessel costing £millions (Web 1, 2007).

1.2 Rotating Boilers

One of the earliest uses of ‘HiGee’ forces in modern day engineering plant was in boilers. There are obvious advantages in spacecraft in using rotating plant, as they create an artificial gravity field where none existed before, see for example Reay and Kew (2006). However, one of the first references to rotating boilers arises in German documentation cited as a result of post-Second World War interrogations of German gas turbine engineers, where the design is used in conjunction with gas and steam turbines (Anon, 1932; Anon, 1946).

1.2.1 The Rotating Boiler/Turbine Concept

The advantages claimed by the German researchers on behalf of the rotating boiler are that it offers the possibility of constructing an economic power plant of compact dimensions and low weight. No feed pump or feed water regulator are required, the centrifugal action of the water automatically takes care of the feed water supply. Potential applications cited for the boiler were small electric generators, peak load generating plant (linked to a small steam turbine), and as a starting motor for gas turbines, etc. A rotating boiler/gas turbine assembly using H₂ and O₂ combustion was also studied for use in torpedoes. The system in this latter role is illustrated in Figure 1.1. The boiler tubes are located at the outer periphery of the unit, and a contra-rotating integral steam turbine drives both the boiler and the power shaft. (It is suggested that start-up needed an electric motor.)

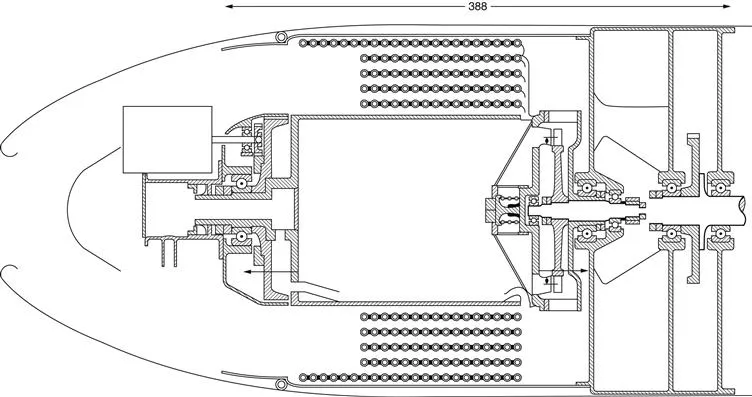

Figure 1.1 The German 20 h.p. starting motor concept with a rotating tubular boiler (tubes are shown in cross-section).

The greatest problem affecting the design was the necessity to maintain dynamic balance of the rotor assembly while the tubes were subject to combined stress and temperature deformations. Even achieving a static ‘cold’ balance with such a tubular arrangement was difficult, if not impossible, at the time.

During the Second World War, new rotating boiler projects did not use tubes, but instead went for heating surfaces in two areas – a rotating cylindrical surface which formed the inner part of the furnace, and the rotating blades themselves – rather like the NASA concept described below. In fact the stator blades were also used as heat sources, superheating the steam after it had been generated in the rotating boiler. One of the later variants of the gas turbine design is shown in Figure 1.2.

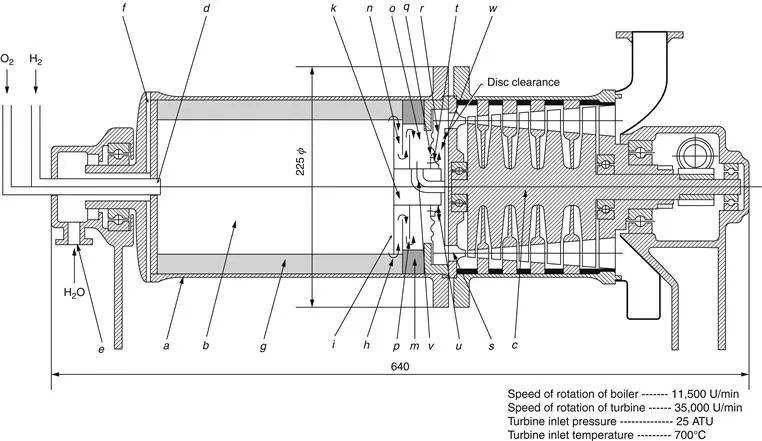

Figure 1.2 One of the final designs of the gas turbine with rotary boiler (located at the outer periphery of the straight cylindrical section).

Steam pressures reached about 100 bar, and among the practical aspects appreciated at the time was fouling of the passages inside the blades (2 mm diameter) due to deposits left by evaporating feed water. It was even suggested that a high temperature organic fluid (diphenyl/diphenyl oxide – UK Trade Name Thermex) be used instead of water. An alternative was to use uncooled porcelain blades, with the steam being raised only in the rotating boiler.

1.2.2 NASA Work on Rotating Boilers

As with the German design above, the first work on rotating boilers by NASA in the US concentrated on cylindrical units, as illustrated in Figure 1.3. The context in which these developments were initiated was the US space programme. In spacecraft it is necessary to overcome the effect of zero gravity in a number of areas which it adversely affects, and these include heat and mass transfer. The rotating boiler is often discussed in papers dealing with heat pipes, which also have a role to play in spacecraft, in particular rotating heat pipes (Gray et al., 1968; Gray 1969; Reay et al., 2006).

Figure 1.3 Schematic diagram of the experimental NASA rotating boiler.

The tests by NASA showed that high centrifugal accelerations produced smooth, stable interfaces between liquid and vapour during boiling of water at one bar, with heat fluxes up to 2570 kW/m² (257 W/cm²) and accelerations up to 400 G’s and beyond. Boiler exit vapour quality was over 99% in all the experiments. The boiling heat transfer coefficients at high G were found to be about the same as those at 1 G, but the critical heat flux did increase, the above figure being well below the critical value. Gray calculated that a 5 cm diameter rotating boiler, generating 1000 G, could sustain a heat flux of 1.8 million Btu/h (6372 kW/m² or 637.2 W/cm²).

1.3 The Rotating Heat Pipe

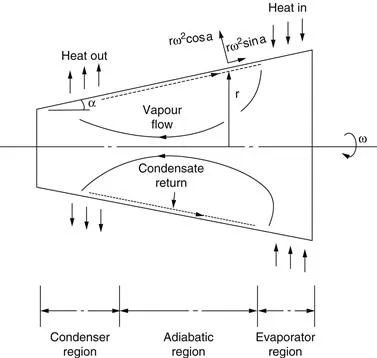

The rotating heat pipe is a two-phase closed thermosyphon in which the condensate is returned to the evaporator by centrifugal force. The device consists, in its basic form, of a sealed hollow shaft, having a slight internal taper along its axial length¹ and containing a fixed amount of working fluid (typically up to 10% of the void space). As shown in Figure 1.4, the rotating heat pipe, like the conventional capillary-driven unit, is divided into three sections, the evaporator region (essentially the ‘rotating boiler’ part of the heat pipe), an adiabatic section, and the condenser. The rotational forces generated cause the condensate, resulting from heat removal in the condenser section, to flow back to the evaporator, where it is again boiled.

Figure 1.4 The basic rotating heat pipe concept (Daniels et al., 1975).

There is a suggestion that peak heat fluxes in the evaporators of rotating heat pipes increase as the one-fourth power of acceleration (Costello and Adams, 1960). While the condenser performance has been less well documented, high G forces allow very thin film thicknesses and continuous ‘irrigation’ of the surface, reducing the thermal resistance across it. Because of the sealed nature of heat pipes and other rotating devices, even further enhancement of condenser performance could be achieved by promoting drop-wise condensation.

There is an interesting observation made in a rotating heat pipe with a stepped wall. Work supervised in China by a highly renowned heat pipe laboratory (IKE, Stuttgart) indicates the formation o...
