Electrochemical Sensor Analysis (ECSA) presents the recent advances in electrochemical (bio)sensors and their practical applications in real clinical, environment, food and industry related samples, as well as in the safety and security arena. In a single source, it covers the entire field of electrochemical (bio)sensor designs and characterizations. The 38 chapters are grouped in seven sections: 1) Potentiometric sensors, 2) Voltammetric sensors, 3) Electrochemical gas sensors 4) Enzyme-based sensors 5) Affinity biosensors 6) Thick and thin film biosensors and 7) Novel trends. Written by experts working in the diverse technological and scientific fields related to electrochemical sensors, each section provides an overview of a specific class of electrochemical sensors and their applications. This interdisciplinary text will be useful for researchers and professionals alike. - Covers applications and problem solving (sensitivity, interferences) in real sample analysis - Details procedures to construct and characterize electrochemical (bio)sensors

Chapter 1 Clinical analysis of blood gases and electrolytes by ion-selective sensors

Andrzej Lewenstam

Publisher Summary

Electrochemical ion-selective sensors (ISSs) and amperometric gas-selective sensors (GSSs) have attracted the interest of clinical chemistry because they offer fast, reliable, inexpensive analytical results in service free automated analyzers. Now a days, the determination of blood gases (pO₂, pCO₂) is performed using electrochemical GSSs, while major blood electrolytes (Na⁺, K⁺as well as Ca2⁺, Mg2⁺, Li⁺ as a therapeutic ion and pH) and main urine electrolytes (Na⁺, K⁺) are predominantly determined by electrochemical ISSs or ISEs. Some important metabolites (glucose, lactate, urea, creatinine) are often determined with electrochemical biosensors. By taking into account the general properties of ISEs (concentration ranges, selectivity, expected life time, etc.) and by listing the ions of physiological importance, it is possible to deduce that some improvements or applications of new ISSs are still feasible. Further amelioration of magnesium electrodes is still likely because existing ones suffer from relatively poor selectivity.

1.1 Introduction

Electrochemical ion-selective sensors (ISSs), including potentiometric ion-selective electrodes (ISEs) and potentiometric or amperometric gas-selective sensors (GSSs), attracted the interest of clinical chemistry because they offer fast, reliable, inexpensive analytical results in service-free automated analyzers. In this way, the electrochemical sensors satisfy the present demands of central hospital laboratories and peripheral point-of-care medical service points, such as bedside, emergency or first-contact healthcare centers.

A breakthrough in the clinical application of electrochemical sensors came with blood gas analysis via pH (“glass electrode”[1]), pCO₂ (“Severinghouse gas electrode”[2]) and pO₂ (“Clark sensor”[3]) electrodes, introduced in the 1950s [4]. Another important milestone in this area was the invention of a valinomycin-based potassium ISE in 1970 [5]. The subsequent development of new generations of ISEs and ISSs, gas-selective electrodes and GSSs, supplemented recently with a rapidly growing family of electrochemical biosensors, provided analytical tools that permit the specific and precise determination of a number of species of medical importance.

Today the determination of blood gases (pO₂, pCO₂) is performed using electrochemical GSSs, while major blood electrolytes (Na⁺, K⁺, Cl⁻ as well as Ca²⁺, Mg²⁺, Li⁺ as a therapeutic ion and pH) and main urine electrolytes (Na⁺, K⁺) are predominantly determined by electrochemical ISSs or ISEs. Some important metabolites (glucose, lactate, urea, creatinine) are often determined with electrochemical biosensors.

The application of ISSs/GSSs in clinical chemistry aroused notable interest in the chemical scientific community marked by dedicated reviews [6–11] and monographs [12–14], including a special series of reports devoted exclusively to the application of ISEs in clinical measurements [15]. For clinicians, normalized and traceable application of ISSs/GSSs in routine analysis is a professional obligation. For this reason their activity is supported by the dedicated activity of the International Federation of Clinical Chemistry (IFCC) and its Working Group on Selective Electrodes and Biosensors. Within this group a number of documents devoted to the application of electrochemical sensors in routine clinical chemistry were published [16–25].

1.2 General Characteristics of Clinical Analysis of Electrolytes and Gases

1.2.1 Clinical sample, analytical matrix

A clinical sample (whole blood, serum, plasma, urine, gastric juice, bile fluid, sweat, etc.) differs from any other analytical sample because of the presence of heterogeneous organic (e.g., proteins) and organic or inorganic components (e.g., urea or sodium ion), sample changes in time (owing to, e.g., denaturation of proteins, escape of CO₂) and small sample size (even a few tens of microliters).

In the case of frequently measured whole blood samples, anaerobic blood samples (arterial or venous) are typically used for blood gas analysis, while blood plasma (i.e., the liquid component of blood, in which the blood cells are suspended, containing the clotting agent fibrinogen; the clotting process can be blocked by anticoagulants such as heparin) or blood serum (i.e., blood plasma not containing fibrinogen) are used for measurements of electrolytes and soluble molecules (e.g., glucose) dissolved in plasma water. Plasma water comprises approximately 80–96% of the total serum/plasma volume, with the remainder being composed of insoluble proteins, lipids and macromolecules. The normal water content in plasma is ∼93%. The major electrolytes contained in plasma water, i.e., sodium, potassium and chlorides, are nearly 100% dissociated. The terms “ionized”—sodium, potassium and chloride—are therefore used to describe the results obtained by ISE measurements in blood. Ionized calcium and magnesium refer to the free (unbound) fraction of total calcium (ca. 50%) and total magnesium (ca. 70%).

In the case of the frequently requested sample urine, the term “urine”—sodium and potassium—is applied. Urine has a different matrix than blood (chemical composition, ionic strength, interferences), which justifies the distinction in measuring terminology, although in both cases the same ISSs/ISEs are used.

The analytical ranges of major parameters in blood and urine are summarized in Table 1.1.

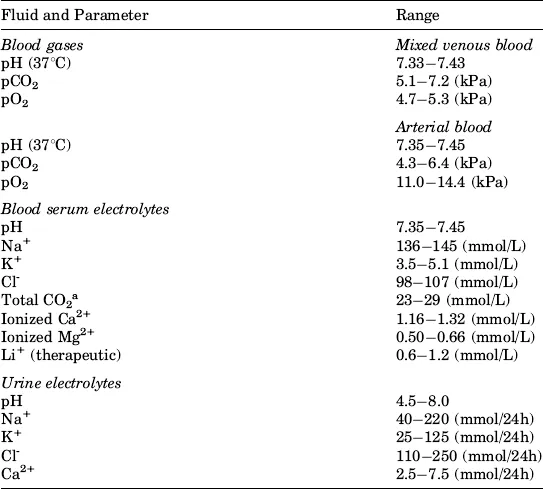

Table 1.1 Reference ranges for the adults’ clinical parameters measured by electrochemical sensors

^a HCO₃⁻ is ∼1.2 mmol/L lower.

The pathological values higher (“hyper”) or lower (“hypo”) are outside of the normal ranges given in Table 1.1, and consequently broader analytical ranges are set for individual sensors. Typical concentration ranges and within-run imprecision values are given in Table 1.2.

Table 1.2 Analytical ranges and imprecision of measurement in a typical blood gas and electrolyte analyzer

Parameter	Analytical range	Within-run imprecision (SD)
pH	6.50–8.00	0.005
pCO2 (kPa)	0.5–27	0.15
pO2 (kPa)	0–107	0.20
Na^+ (mmol/L)	80–200	1.4
K^+ (mmol/L)	2–10	0.05
Cl^− (mmol/L)	50–150	1.0
Total CO2 (mmol/L)	5–40	0.5
Ionized Ca^2+ (mmol/L)	0.2–3.0	0.02
Ionized Mg^2+ (mmol/L)	0.2–2.0	0.02
Na^+ (urine) (mmol/L)	20–300	5
K^+ (urine) (mmol/L)	20–200	5

1.2.2 Types and design of ion-sensors and gas-sensors used in clinical analysis

The demand for reliability of the analyses, a long-life of the electrodes and their readiness to be used any time (for so-called Stat samples) directly dictated the design of ISSs/GSSs. Instead of macroelectrodes, a large variety of microelectrodes have been developed [26].

ISSs, as with any potentiometric sensor, can be treated as a galvanic half-cell and represented schematically:

(A.1)

Correspondingly the galvanic cell (with ISS) can be represented by the following scheme:

(A.2)

At present, most clinical measurements are realized in conti...
