Development of the Lithium-Ion Battery and Recent Technological Trends

Akira Yoshino, Yoshino Laboratory, Asahi Kasei Corp., 2-1, Samejima, Fuji-Shi, Shizuoka, Japan

Abstract

Lithium-ion batteries (LIBs) feature high energy density, high discharge power, and long service life. These characteristics facilitated a remarkable advance in portable electronics technology and the spread of information technology devices throughout society. Their emerging application to electric vehicles and large-scale storage systems make them a promising solution for challenges of environmental preservation and resource conservation. Research on LIBs started in the early 1980s, and the principle of the current LIB was completed in 1985. Since the LIB was first commercialized in 1991, battery performance has risen dramatically. Most of the technological developments to date have been directed toward the needs of portable electronics, but now the focus tends to be on the performance demands of medium- and large-scale applications. This chapter firstly describes the early technological innovations and then introduces and discusses the latest technology and research on the major battery components, the cathode, anode, electrolyte, and separator.

Keywords

Development; Lithium-ion battery; Origin; Technological trend

Chapter Outline

1. Introduction

2. Development of the Practical LIB

3. Development of Cathode Materials

3.1. History of Cathode Material Development

3.2. Recent Technological Trends of Cathode Materials

3.2.1. Three Morphologies of Cathode Materials

3.2.2. Layered Rock Salt Structure Materials (two dimensional)

3.2.3. Spinel Structure Materials (three dimensional)

3.2.4. Olivine Structure Materials (one dimensional)

3.3. Latest Research on Cathode Materials

3.3.1. Layered LCO Series (two dimensional)

3.3.2. Layered LiNiO₂ Series (two dimensional)

3.3.3. Layered Mn Compound Series (two dimensional)

3.3.4. Spinel Structure Cathode Materials (three dimensional)

3.3.5. Olivine Structure Cathode Materials (one dimensional)

4. Development of Anode Materials

4.1. History of Anode Material Development

4.2. Recent Research on Anode Materials

5. Development of Electrolyte Solutions

5.1. History of Electrolyte Solution Development

5.2. Recent Research on Electrolyte Solutions

6. Separator Technology

6.1. Separator Production Methods and Characteristics

6.1.1. Dry-process One-component System

6.1.2. Wet-process Two-component System

6.1.3. Wet-process Three-component System

6.1.4. Shutdown Function

6.2. Recent Separator Developments

6.2.1. New Materials

6.2.2. Inorganic Coating

6.2.3. Separators Containing Inorganic Material

6.2.4. Nonwoven Separators

6.2.5. Laminated Separators

7. Conclusion

References

1 Introduction

In the 1980s, information technology (IT) advanced significantly with the development of portable electronic products such as video cameras, mobile phones, and notebook computers. This technological revolution led to a growing need for rechargeable batteries with greater capacity or with reduced size and weight for a given capacity. Conventional rechargeable batteries available or under development at that time such as lead–acid, nickel–cadmium, and nickel–metal hydride batteries used aqueous electrolytes, which posed limitations on increasing the energy density and reducing the size and weight. Thus, there remained an unmet need for a new, small and lightweight rechargeable battery to be put into practical use. Research on the lithium-ion battery (LIB) started in the early 1980s, and the first commercialization was achieved in 1991. Since then, LIBs have grown to become the dominant power storage solution for portable IT devices. The LIB market has continued to expand rapidly for over 15 years, and its worldwide scale now exceeds JP Yen 10⁶ millions ($13,000 millions) as shown in Figure 1.1.

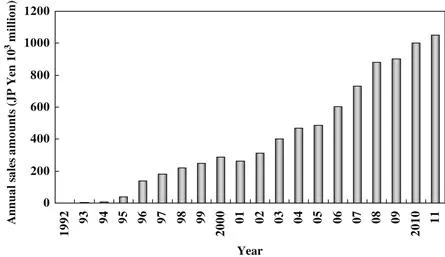

FIGURE 1.1 Expansion of worldwide LIB demand.

The four major components of the LIB are the cathode, anode, electrolyte, and separator. LIBs generally produce an average cell voltage of around 3.7 V and operate on the relatively simple principle of reversible intercalation of Li ions in the cathode and anode. The most commonly used material for the cathode is lithium cobalt oxide, LiCoO₂, and some form of carbon is generally used for the anode. In the completely discharged state, Li atoms are only contained as part of the cathode. On charging, Li ions are released from the cathode and migrate through the electrolyte into the carbon of the anode. The reverse reaction occurs during discharging, and electric energy is stored or released by repeating these reactions reversibly. The rapidly growing LIB market described above owes to this safe and efficient principle. This chapter focuses on two subjects: the development of the first practical LIB configuration in the 1980s and the recent technological trends for LIBs. The principle of the present commercial LIB as described above was completed in 1985 with a patent filed by the author [1]. This invention and other successive patents illustrate the origins of the key LIB components and configuration, as well as the technological requirements associated with them. Since many of the requirements at the time are analogous to the objectives of current research, reviewing the initial stage of LIB development will provide rich context for and insight into the overall technology. Following a brief overview of the initial development, sections devoted to each major LIB component will begin with a description of the early technological innovations followed by a discussion of recent technology and research.

2 Development of the Practical LIB

The author and colleagues focused on creating a practical new nonaqueous electrolyte rechargeable battery to meet the emerging need for a small and lightweight power source for portable electronics. Our essential achievements made in the 1980s were as follows: (1) proposition of fundamental technology for composition of the LIB, in which LiCoO₂ is used as the cathode and a carbonaceous material with a certain crystalline structure is used as the anode; (2) invention of essential constituent technologies for the electrodes, electrolyte, and separator; and (3) development of peripheral technology such as safety device technology, protective circuit technology, and charging and discharging technology.

The first step to develop the practical LIBs was the adoption of LiCoO₂ for the cathode. LiCoO₂ was first disclosed by Goodenough et al. [2,3] and it remains the most commonly used cathode material at present. One anode material that was gaining attention at the time was graphite [4], but it was known that propylene carbonate, which was then the common organic electrolyte solvent, would decompose during charging when graphite was used. Furthermore, the use of a solid electrolyte resulted in electrical resistance which was too high to enable practical charging and discharging. We created a working model LIB using LiCoO₂ as the cathode and polyacetylene as the anode, but rejected polyacetylene due to its low density (high bulk) which precluded reduction of cell size. Studying several carbonaceous materials for their suitability as anode, we found that a carbonaceous material with a certain crystalline structure provided greater capacity without causing decomposition of the propylene carbonate electrolyte solvent, as graphite did. The secondary battery which we successfully fabricated based on this new combination of component materials enabled stable charging and discharging, over many cycles for a long period [1].

This combination of electrode materials marked a new concept of a secondary battery based on the transfer of Li ions. Cell reaction without chemical transformation provided stable battery characteristics over a long service life, including excellent cycle durability with little degradation by side reactions, and excellent storage characteristics. Furthermore, this development also enabled simple and efficient assembly in the discharged state, with no special atmosphere required because LiCoO₂ is very stable in air, despite containing Li ions, and the anode is composed of carbonaceous material which is also stable.

Another key step was the development of essential constituent technologies including technology for fabricating electrodes and technology for assembling batteries. In the basic structure of the typical LIB, a multilayer electrode assembly (electrode coil), prepared by winding sheets of cathode and anode with separator membrane in between, is inserted into a battery can. This is then infused with nonaqueous electrolyte solution composed of LiPF₆ or LiBF₄ dissolved in a mixture of carbonate compounds and sealed. Both the cath...
