Chapter 1

A BRIEF REVIEW OF POWER GENERATION THERMODYNAMICS

1.1 Introduction

A conventional power plant receiving fuel energy (F), producing work (W) and rejecting heat (Q_A) to a sink at low temperature is shown in Fig. 1.1 as a block diagram. The objective is to achieve the least fuel input for a given work output as this will be economically beneficial in the operation of the power plant, thereby minimising the fuel costs. However, the capital cost of achieving high efficiency has to be assessed and balanced against the resulting saving in fuel costs.

Fig. 1.1 Basic power plant.

The discussion here is restricted to plants in which the flow is steady, since virtually all the plants (and their components) with which the book is concerned have a steady flow.

It is important first to distinguish between a closed cyclic power plant (or heat engine) and an open circuit power plant. In the former, fluid passes continuously round a closed circuit, through a thermodynamic cycle in which heat (Q_B) is received from a source at a high temperature, heat (Q_A) is rejected to a sink at low temperature and work output (W) is delivered, usually to drive an electric generator.

Fig. 1.2 shows a gas turbine power plant operating on a closed circuit. The dotted chain control surface (Y) surrounds a cyclic gas turbine power plant (or cyclic heat engine) through which air or gas circulates, and the combustion chamber is located within the second open control surface (Z). Heat Q_B is transferred from Z to Y, and heat Q_A is rejected from Y. The two control volumes form a complete power plant.

Fig. 1.2 Closed circuit gas turbine plant (after Haywood [3]).

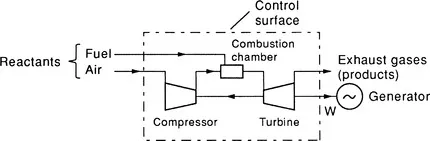

Usually, a gas turbine plant operates on ‘open circuit’, with internal combustion (Fig. 1.3). Air and fuel pass across the single control surface into the compressor and combustion chamber, respectively, and the combustion products leave the control surface after expansion through the turbine. The open circuit plant cannot be said to operate on a thermodynamic cycle; however, its performance is often assessed by treating it as equivalent to a closed cyclic power plant, but care must be taken in such an approach.

Fig. 1.3 Open circuit gas turbine plant (after Haywood [3]).

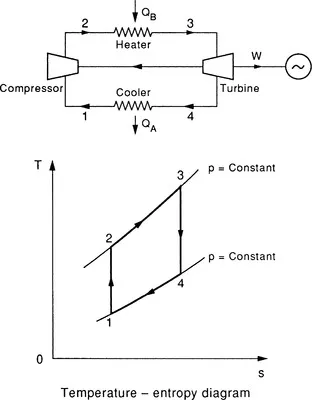

The Joule–Brayton (JB) constant pressure closed cycle is the basis of the cyclic gas turbine power plant, with steady flow of air (or gas) through a compressor, heater, turbine, cooler within a closed circuit (Fig. 1.4). The turbine drives the compressor and a generator delivering the electrical power, heat is supplied at a constant pressure and is also rejected at constant pressure. The temperature–entropy diagram for this cycle is also shown in the figure. The many variations of this basic cycle form the subject of this volume.

Fig. 1.4 Joule–Brayton cycle (after Ref. [1]).

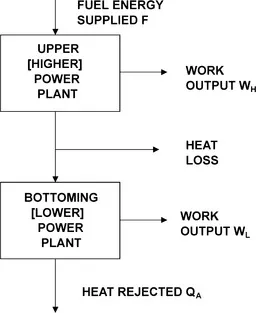

An important field of study for power plants is that of the ‘combined plant’ [1]. A broad definition of the combined power plant (Fig. 1.5) is one in which a higher (upper or topping) thermodynamic cycle produces power, but part or all of its heat rejection is used in supplying heat to a ‘lower’ or bottoming cycle. The ‘upper’ plant is frequently an open circuit gas turbine while the ‘lower’ plant is a closed circuit steam turbine; together they form a combined cycle gas turbine (CCGT) plant.

Fig. 1.5 Combined p...
