Mapping Urban Spaces

Designing the European City

Lamberto Amistadi, Valter Balducci, Tomasz Bradecki, Enrico Prandi, Uwe Schröder, Lamberto Amistadi, Valter Balducci, Tomasz Bradecki, Enrico Prandi, Uwe Schröder

• Publisher: Routledge
• Year: 2021
• ISBN:
  9781000425895
• Edition: 1
• Topic: Architecture
• Subtopic: Aménagement urbain et paysager

Mapping Urban Spaces focuses on medium-sized European cities and more specifically on their open spaces from psychological, sociological, and aesthetic points of view. The chapters illustrate how the characteristics that make life in medium-sized European cities pleasant and sustainable – accessibility, ease of travel, urban sustainability, social inclusiveness – can be traced back to the nature of that space.

The chapters develop from a phenomenological study of space to contributions on places and landscapes in the city. Centralities and their meaning are studied, as well as the social space and its complexity. The contributions focus on history and theory as well as concrete research and mapping approaches and the resulting design applications.

The case studies come from countries around Europe including Poland, Italy, Greece, Germany, and France, among others. The book will be of interest to students, scholars, and practitioners in architecture, urban planning, and landscape architecture.

PART I

Mapping Spaces

The Phenomenological Approach to the City of Spaces

1

A SPATIAL UNDERSTANDING OF ARCHITECTURE AND THE CITY

Uwe Schröder

Let us imagine a work of architecture at the moment of its emergence, merging design with construction, from the originating idea all the way to the keystone, but still without any imputation of a meaningful purpose, without aligning it with the existing location, and without any presuppositions concerning the time that may have elapsed, which is to say, in relation to a “framework,” and in the absence of any internal or external “padding,”¹ so to speak: at this point, it becomes conceivable that neither “purpose,” nor “place,” nor “time” is among the attributes of a building, despite the fact that these factors have, more or less, influenced its realization as “external” factors. The external factors determine the “inner” specifications – those concerning “materials,” “construction,” “form,” “function,” and “space” – all of which emerge, in turn, as characteristic attributes of the building itself. The essential work of design and construction also consists, then, in transferring such external conditions, by means of the idea, into the architecture, into the building, inscribing them onto its inner specifications.² This is not, however, the time or place to investigate this process further or to reflect upon the significance of the design process, the idea, or this process of transfer: what is pursued here instead is the content of these basic concepts.

In the discipline of architecture today, “space” is perhaps among the most controversial concepts, and perhaps the most ambiguous, too – but why should this be the case? While in previous eras, disputes over the conceptual and contentual determination of “space” were invested with claims to philosophical and physical authority, in the late 19th and early 20th centuries, the discourse on space migrated into various disciplines, among them art history, sociology, phenomenology, and psychology, but the natural sciences in particular. Today, the implications of the term “space” and the theoretical model that underlies it are still being negotiated and affirmed in diverse ways within the various disciplines. It appears that only a transdisciplinary history of the concept could provide insight here, one that would bring together the various “evolutionary” threads of understanding and imagination, meaning and content, and theoretical models and synesthetic perception together in a nuanced way. With the spatial turn in the cultural and social sciences that began in the late 1980s, and also with the succeeding revival of an architectural and theoretical discourse on space, spaces, and spatiality³ around the turn of the millennium, a disciplinary differentiation of conceptual terminology has become evident.

A Spatial Understanding of Architecture

With regard to architecture, we presuppose here a spatial understanding that attributes to architectural space a phenomenal independence within the differentiated spatiality of the lifeworld, and alongside other natural, cultural, and sociological conceptions of space: architecture situates, “founds and joins” spaces that appear in the interiors of buildings – such as courtyards – or among buildings – such as squares – and which, by virtue of the proportional proximity of their structural boundaries, we perceive as inner spaces. Other spaces, such as outer spaces, which, by virtue of the remoteness of their boundaries, have the effect of open, expansive “fields” – such as parks – and do not count as architectural space in the strict sense of the term, although no doubt they contribute to the spatiality of the city.

Architectural spaces appear as place-bound inner spaces that are essentially produced by their structural boundaries. The way in which we are able to move through various spaces within a building, which are connected with one another through openings, corresponds to our everyday experience and perception. However, with this straightforward description of the phenomenon as a perceived event, we have already contrasted the architectural understanding of space to mathematical space, for instance, as well as to other relational conceptions of space. Therefore, we would not refer to “the” space that defines a building, for example, or a city, as a homogenous entity, but instead differentiate between the spaces of a building and, similarly, the spaces of a city according to their appearance.

Among the “primal phenomena” of architecture that pertain to this aspect of space is the “separation of inner from outer.”⁴ In material, constructive, and formal respects, architecture moves toward the boundary; toward the boundaries between spaces⁵; toward the external boundary between inner and outer initially, which is to say between the interior and exterior of a building; and then toward the internal boundaries between various spaces in the interior of a building. Here, external refers to “being outside,” to the situation of being in front of the building, but says nothing, however, about the spatial quality of this situation, since the outside, in relation to the building, may appear as an external space, as an expansive field, or instead as an inner space, as a street or square. In other words, even outside, we may be inside, since even on the outside of a building, architectural spaces can manifest themselves as inner spaces. Nor does the fact that these spaces may not be roofed annul their spatial appearance – as with a courtyard in a building’s interior. Architecture creates structural boundaries between spaces, and determines transitions as openings, which may themselves appear as autonomous spaces, a door or a gate, a window or a niche.⁶ Ordinary language also expresses everyday perception, for example, when we use prepositions to refer to the habitual spatiality of a situation: when we speak, for example, of being in the doorway, in the niche, at or in the window, in the room or the hall, as well as being in or on the street.

Excursus: Architectural Modernity and Space

The oft-misunderstood paradigm shift toward the fourth dimension of space-time, adopted so enthusiastically by modernists, guided architecture toward new interpretive strategies in both praxis and theory.⁷ A far-reaching erosion of the structural boundaries of interior space caused the traditional dialectic of inner and outer to retreat into the background. For architecture, this meant a self-imposed renunciation of independent space formation in favor of the formal composition of structural elements, which aimed toward the substantial nullification of the boundary between inner and outer. When this modern development of “spacelessness” in architecture is discussed,⁸ the term should by rights refer to the conceptualized renunciation of the autonomous formation of interior spaces (Figures 1.1 and 1.2).⁹

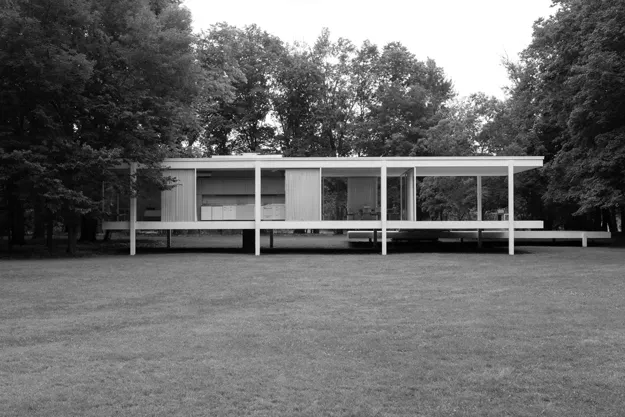

FIGURE 1.1 Ludwig Mies van der Rohe, Farnsworth House (1951), photograph: Yorgos Efthymiadis / yorgosphoto.com.

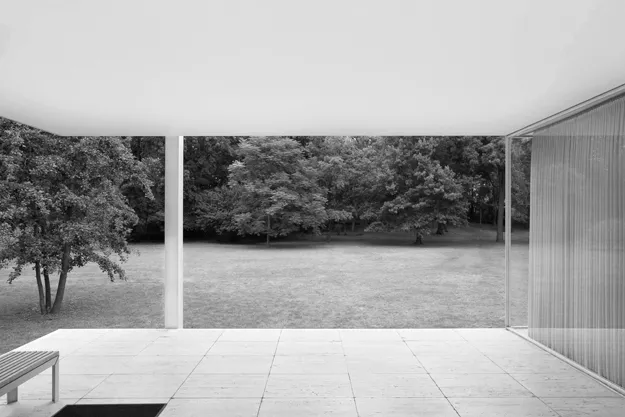

FIGURE 1.2 Ludwig Mies van der Rohe, Farnsworth House (1951), photograph: Yorgos Efthymiadis / yorgosphoto.com.

A Spatial Understanding of the City

When we attempt to describe the spatiality of the city from an architectural perspective, we are neither obliged to challenge the architectural understanding of space described here, nor are we obliged to replace the underlying theoretical model, such as by exchanging an absolute concept of space for a relational one. We describe the substantiality of the spaces of the city as perceived spatial situations, which here seem more like inner spaces, and elsewhere more like outer spaces, and which act upon us accordingly. With regard to the inner spatiality of the city, it is worth remarking here that we have at our disposal both a traditional theoretical discourse and a differentiated typology of spaces, one that has generated an encyclopedic collection of references for urban design. Naturally, the same cannot be said for the outer spatiality of the city, since it is not conceived in terms of differentiated spaces, but instead as continuous space, at least in the tradition of architectural modernity. But such a relational conceptualization of space – and this should be self-evident – involves a greater attentiveness to form, to the morphology of built structures, to a city of objects. In order to overcome this inherited conception of space, we would need to imagine, describe, and define the outer spatiality of the city as a city of spaces, too. A typology of the outer spaces of the city would then have the task of introducing a differentiated definition of the meaning of familiar and excessively generalizing terms – those of the cityscape or townscape – and of contributing to a synchronous spatial understanding of the inner and outer spaces of the city (Figures 1.3 and 1.4).

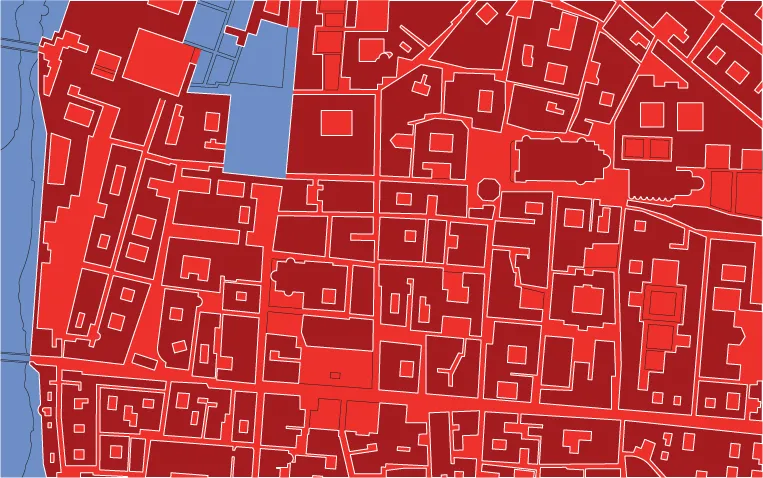

FIGURE 1.3 Parma, red-blue plan, redrawn after: Colin Rowe, Fred Koetter, Collage City, Basel/Boston/Stuttgart 1984, Parma, mass planning, p. 88. From: Uwe Schröder, Pardié: Concept for a City after the Time Regime of Modernity, Cologne 2015, p. 32.

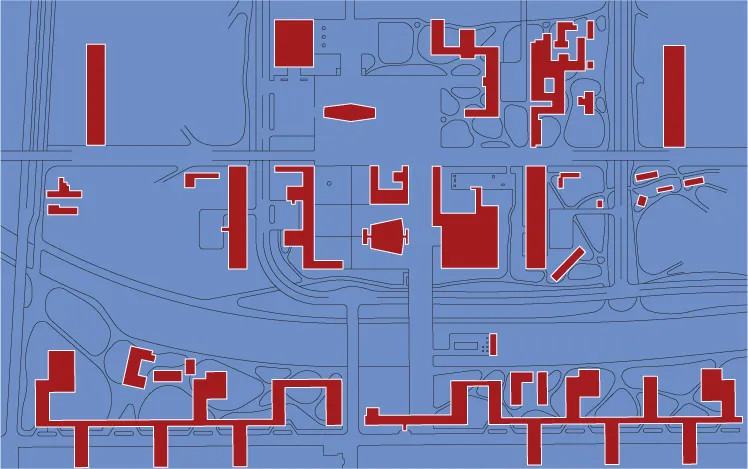

FIGURE 1.4 Saint-Dié, red-blue plan, redrawn after: Colin Rowe, Fred Koetter, Collage City, Basel/Boston/Stuttgart 1984, Saint-Dié, mass planning [Le Corbusier, reconstruction plan for Saint-Dié, 1945], p. 89. From: Uwe Schröder, Pardié: Concept...
