Siemens NX 12.0 for Designers, 11th Edition

Prof. Sham Tickoo

• Publisher: CADCIM Technologies
• Year: 2018
• Print ISBN: 9781640570122
• eBook ISBN: 9781640570122
• Topic: Technology & Engineering
• Subtopic: Mechanical Engineering
• Index: Technology & Engineering

Siemens NX 12.0 for Designers is a comprehensive textbook that introduces the users to feature based 3D parametric solid modeling using the NX 12.0 software. The textbook covers all major environments of NX with a thorough explanation of all tools, options, and their applications to create real-world products. In this textbook, about 39 mechanical engineering industry examples are used as tutorials and an additional 34 as exercises to ensure that the users can relate their knowledge and understand the design techniques used in the industry to design a product. After reading the textbook, the user will be able to create parts, assemblies, drawing views with bill of materials, and learn the editing techniques that are essential to make a successful design. Also, in this book, the author emphasizes on the solid modeling techniques that improve the productivity and efficiency of the user.Keeping in mind the requirements of the users, the textbook at first introduces sketching and part modeling in NX 12.0, and then gradually progresses to cover assembly, surfacing, and drafting. To make the users understand the concepts of Mold Design, a chapter on mold designing of the plastic components is available in the book. In addition, a new chapter on basic concepts of GD&T has also been added in this textbook. Both these chapters are available for free download. Written with the tutorial point of view and the learn-by-doing theme, the textbook caters to the needs of both novice and advanced users of NX 12.0 and is ideally suited for learning at your convenience and pace.

Some of the Salient Features of this textbook are as follows:

• Consists of 16 chapters that are organized in a pedagogical sequence.
• Comprehensive coverage of NX 12.0 concepts and techniques.
• Tutorial approach to explain the concepts of NX 12.0.
• Detailed explanation of all commands and tools.
• Summarized content on the first page of the topics that are covered in the chapter.
• Hundreds of illustrations for easy understanding of concepts.
• Step-by-step instructions to guide the users through the learning process.
• More than 39 real-world mechanical engineering designs as tutorials, 34 as exercises, and projects with step-by-step explanation.
• Additional information throughout the book in the form of notes and tips.
• Self-Evaluation Tests and Review Questions at the end of each chapter to help the users assess their knowledge.
• Technical support by contacting [email protected].
• Additional learning resources at http://allaboutcadcam.blogspot.com.

Table of Contents

Chapter 1: Introduction to NX 12.0
Chapter 2: Drawing Sketches for Solid Models
Chapter 3: Adding Geometric and Dimensional Constraints to Sketches
Chapter 4: Editing, Extruding, and Revolving Sketches
Chapter 5: Working with Datum Planes, Coordinates Systems, and Datum Axes
Chapter 6: Advanced Modeling Tools-I
Chapter 7: Advanced Modeling Tools-II
Chapter 8: Assembly Modeling-I
Chapter 9: Assembly Modeling-II
Chapter 10: Surface Modeling
Chapter 11: Advanced Surface Modeling
Chapter 12: Generating, Editing, and Dimensioning the Drawing Views
Chapter 13: Synchronous Modeling
Chapter 14: Sheet Metal Design
Chapter 15: Introduction to Injection Mold Design (For Free Download)
Chapter 16: Concepts of Geometric Dimensioning and Tolerancing (For Free Download)
Index

Chapter 7

Advanced Modeling Tools-II

Learning Objectives

After completing this chapter, you will be able to:

• Create the rectangular and circular arrays of a feature

• Mirror selected features and bodies

• Mirror selected faces and geometry

• Create sweep features

• Use the Swept tool to create lofted features

• Create tube features

• Create threads

• Convert solid features into hollow features

• Edit hole features

• Edit the positioning of groove features

• Edit the positioning of slot features

• Edit the parameters of features

• Edit the parameters of features with rollback

• Reorder features

• Create draft features

• Create lattice features

Advanced Modeling Tools

In this chapter, you will learn about the following advanced modeling tools:

1. Pattern Feature

2. Mirror Feature

3. Mirror Body

4. Sweep along Guide

5. Swept

6. Tube

7. Thread

8. Shell

Pattern Feature Tool

Ribbon: Home > Feature > Pattern Feature
Menu: Insert > Associative Copy > Pattern Feature

The Pattern Feature tool is a very versatile tool in NX. This tool is used to create the linear and circular patterns of features. It is also used to create the polygon, spiral, along, general, reference, and helix patterns. The uses of this tool are discussed next.

Creating a Linear Pattern

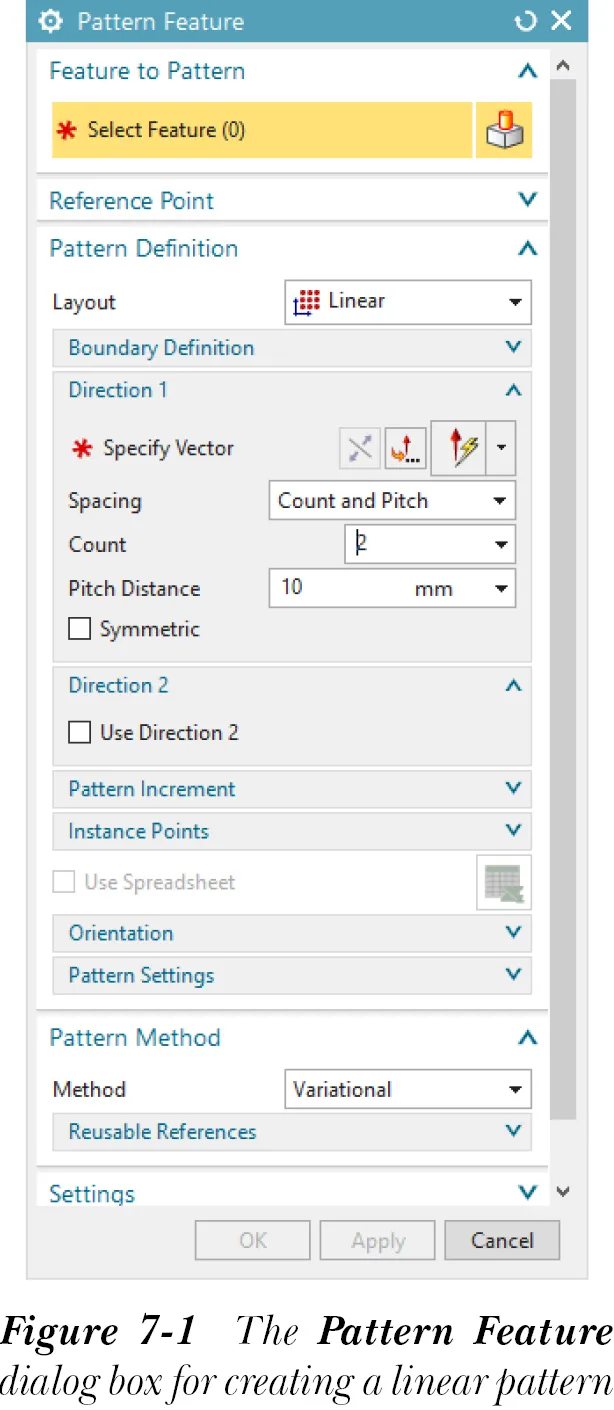

Linear pattern of a feature is created by placing the instances of that feature along the two directions of the work coordinate system (WCS). To create a linear pattern, choose the Pattern Feature tool from the Feature group of the Home tab; the Pattern Feature dialog box will be displayed, refer to Figure 7-1. The Linear option is selected by default in the Layout drop-down list of the Pattern Definition rollout of the dialog box. Click in the Specify Vector area of the Direction 1 sub-rollout in the Pattern Definition rollout; a triad will be displayed in the graphics window and you will be prompted to select an object to define the first direction. Select an edge to define the first direction of the pattern creation. You can also use the triad to define the direction. Next, you need to define the number of instances and the spacing between them. There are four options to define the number of instances and spacing between them, which are listed in the Spacing drop-down list in the Direction 1 sub-rollout. These options are discussed next.

Count and Pitch

On selecting this option, the Count and Pitch Distance edit boxes will be displayed. You need to specify the number of instances in the Count ed...
