Originally published in 1860, this book of military architecture features some truly spectacular examples of Roman and Medieval fortifications including castles, bastions, and camps. This remarkable work is a literal treasure trove of hard-to-find information on a litany of structures and defenses. An essay on military architecture and the various modes of warfare is presented along with details of each conquest. Representative of the best, most heavily fortified embattlements that were constructed from the days of Caesar through the Sixteenth century, this work includes engines of war, towers, cats, walls and wooden ramparts, drawbridges, moats, keeps, and curtain-walls of these castle forts and encampments. It is illustrated with eye views of medieval engagements, numerous sectional drawings as well as plans, and has complete descriptions of these classic wood, stone, and mortar structures revealing their secrets.-Print ed.

ESSAY ON THE MILITARY ARCHITECTURE OF THE MIDDLE AGES.

To write a general history of the art of fortification, from the days of antiquity to the present time, is one of the fine subjects lying open to the researches of archæologists, and one which we may reasonably hope to see undertaken; but we must admit that it is a subject, to treat which fully requires much and varied information,—since to the knowledge of the historian should be superadded in him who would undertake it the practice of the arts of architecture and military engineering. It is difficult to form an exact estimate of a forgotten art, when we are unacquainted with that art as it is practised in the present day; and in order that a work, of the nature of that which we wish to see undertaken, should be complete, it ought to be executed by one who is at once versed in the modern art of the defence of strong places, an architect, and an antiquary. The present writer is not a military engineer and scarcely an antiquary: it would, therefore, be in the highest degree presumptuous were he to offer this summary in any other light than as an essay,—a study of one phase of the art of fortification, comprised between the establishment of the feudal power, and the definite adoption of the modern system, of fortification as devised to counteract the use of artillery. This essay, perhaps, by lifting the veil which still envelopes one branch of the art of mediaeval architecture, may induce some of our young officers of engineers to devote themselves to a study, which could not fail to possess great interest, and which might probably have a useful and a practical result; for there is always something to be gained by informing ourselves of the efforts made by those who have preceded us in the same path, and by following up the progress of human labour, from its first rude essays, to the most remarkable developments of the intelligence and the genius of man. To see how others have conquered before us the difficulties by which they were surrounded, is one means of learning how to conquer those which every day present themselves; and in the art of fortification, where everything is a problem to be solved, where all is calculation and foresight, where we have not only to do battle with the elements and with the hand of time, as in the other branches of architecture, but to protect ourselves against the intelligent and previously-planned destructive agency of man, it is well, we think, to know how in past times some have applied all the abilities of their minds and all the material force at their command to the work of destruction, others to that of preservation.

At the time when the barbarians invaded Gaul, many of the towns still preserved their fortifications of Gallo-Roman origin; those which did not, made haste to erect some, out of the ruins of civil buildings. Those walled enclosures, successively forced and repaired, were long the only defensive works of these cities; and it is probable that they were not built upon any regular or systematic plan, but constructed very variously, according to the nature of the localities and of the materials, or after certain local traditions, the nature of which we cannot at the present day fully understand, as there remain to us only the ruins of these walls, consisting of foundations which have been modified by successive additions.

The Visigoths took possession, in the fifth century, of a great portion of Gaul; their domination extended, under Wallia, from the Narbonaise to the Loire. During eighty-nine years Toulouse remained the capital of this kingdom, and, in the course of that period, the greater number of the towns of Septimania were fortified with great care, and had to stand several sieges. Narbonne, Béziers, Agde, Carcassonne, and Toulouse were surrounded by formidable ramparts, constructed according to the Roman traditions of the Lower Empire, if we may judge at least by the important portions of the early walls which still surround the city of Carcassonne. The Visigoths, allies of Rome, did no more than perpetuate the acts of the Empire, and that with some degree of success. As for the Franks, who had preserved their Germanic customs, their military establishments would naturally be so many fortified camps, surrounded by palisades, ditches, and some embankments of earth. Timber plays an important part in the fortifications of the first centuries of the middle ages. And although the Germanic races who occupied Gaul left the task of erecting churches and monasteries, palaces and civil structures, to the Gallo-Romans, they were bound to preserve their military habits in the presence of the conquered nation. The Romans themselves, when they made war upon territories covered with forest, like Germany and Gaul, frequently erected ramparts of wood; advanced works, as it were, beyond the limits of their camps; as we may see by the bas-relief on Trajan’s Column (1). In the time of Cæsar, the Celts, when they found themselves unable to continue their wars, placed their women, their children, and all the most precious of their possessions behind fortifications made of wood, earth, or stone, beyond the reach of their enemy’s attack.

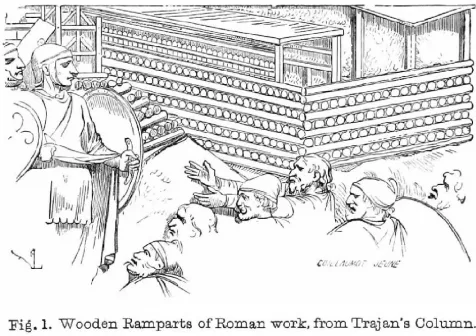

“They employ,” says Cæsar in his Commentaries, “pieces of wood perfectly straight, lay them on the ground in a direction parallel to each other at a distance apart of two feet, fix them transversely by means of trunks of trees, and fill up the voids with earth. On this first foundation they lay a layer of broken rock in large fragments, and when these are well cemented, they put down a fresh course of timber arranged like the first; taking care that the timbers of these two courses do not come into contact, but rest upon the layer of rock which intervenes. The work is thus proceeded with, until it attains the height required. This kind of construction, by reason of the variety of its materials, composed of stone and wood, and forming a regular wall-surface, is good for the service and defence of fortified places; for the stones which are used therein hinder the wood from burning, and the trees being about forty feet in length, and bound together in the thickness of the wall, can be broken or torn asunder only with the greatest difficulty{1}.”

Cæsar renders justice to the industrious manner in which the Gallic tribes of his time established their defences and succeeded in resisting the efforts of their assailants, when he laid siege to the town of Avaricum, (Bourges).

“The Gauls,” he says, “opposed all kinds of stratagems to the wonderful constancy of our soldiers: for the industry of that nation imitates perfectly whatever they have once seen done. They turned aside the hooks (falces murales) with nooses, and when they had caught hold of them firmly drew them in by means of engines, and undermined the mound the more skilfully for the reason that there are in their territories extensive iron-mines, and consequently every kind of mining operation is known and practised by them. They had furnished, moreover, the whole wall on every side with turrets, and had covered these with hides. Besides, in their frequent sallies by day and night they attempted either to set fire to the mound, or attack our soldiers when engaged in the works; and, moreover, by means of beams spliced together, in proportion as our towers were raised, together with our ramparts, did they raise theirs to the same level{2}.”

The Germans constructed, also, ramparts of wood crowned with parapets of osier. The Column of Antonine at Rome furnishes a curious example of this kind of rustic redoubt (2). These works were, however, very probably of hasty construction. We see here the fort attacked by Roman soldiers. The infantry, in order to get close to the rampart, cover themselves with their shields and form what was called the tortoise (testudo); by resting the tops of their shields against the rampart, they were able to sap its base or set fire to it, safe, comparatively, from the projectiles of the enemy{3} The besieged are in the act of flinging stones, wheels, swords, torches, and fire-pots upon the tortoise; while Roman soldiers, holding burning brands, appear to await the moment when the tortoise shall have completely reached the rampart, in order to pass under the shields and fire the fort. In their entrenched camps, the Romans, besides some advanced works constructed of timber, frequently erected along their ramparts, at regular intervals, wooden scaffoldings, which served either for placing in position the machines intended to hurl their projectiles, or as watch-towers from which to reconnoitre the approaches of the enemy. The bas-reliefs of Trajan’s Column afford numerous examples of this kind of structure (3). These Roman camps were of two sorts: there were the summer camps, the castra æstiva, of a purely temporary nature, which were raised to protect the army when halting in the course of the campaign, and which consisted merely of a shallow ditch and a row of palisades planted along the summit of a slight embankment; and the winter, or stationary camps, castra hiberna, castra stativa which were defended by a wide and deep ditch, and by a rampart of sodded earth or of stone flanked by to...
