1.1 Introduction

Proton exchange membrane fuel cell (PEMFC) has been widely employed as electrochemical energy conversion systems in many fields due to its advantages, such as high energy conversion efficiency, high power density, and low operation temperature. Particularly, due to its high power density, PEMFC is suitable for transportation applications, such as sedans and buses. However, its wide commercialization is still hampered by three aspects: high cost, low catalyst activity, and low durability. The high cost is mainly caused by the utilization of platinum catalysts. In the early stage of PEMFC development, platinum black was employed as the catalyst with catalysts loading as high as 28 mg/cm². In the late 1990s, researchers began to use the high-surface-area carbon to disperse the platinum with a nanosize structure. Hence, the platinum catalyst loading in the catalyst layer was significantly reduced to 0.3–0.4 mg/cm². In this regard, the catalyst supporting material is critical to improving noble catalyst utilization. Besides the dispersion of nanosized catalysts, the catalyst supporting material is also related to the mass transport and durability of PEMFC. On the one hand, with the catalyst loading further reduced, for example, <0.1 mg/cm², the mass transport, particularly for the oxygen diffusion in the cathode, arises as a critical issue. Hence, the optimization architecture of catalyst supporting material, including the pore size, pore distribution, and porosity, to meet the mass transport requirement becomes a new research highlight in the research community of PEMFC. On the other hand, the durability of PEMFC highly depends on the catalyst supporting materials. Without a suitable supporting material, the platinum nanoparticles will be agglomerated, dissoluted, and detached, which will deteriorate the performance of PEMFC. Therefore, a suitable catalyst supporting material should meet the following requirements:

1. High surface area;
2. High electrical conductivity;
3. High durability under the harsh chemical environment (high potential and low pH);
4. Suitable nanostructure for platinum dispersion and mass transport.

In this chapter, the cutting-edge development of catalyst supporting materials for platinum in the recent decade will be first introduced. These catalyst supporting materials include functionalized carbon, carbide, nitride, and transition metal oxides. The perspective and future development will then be given at the end of the chapter.

1.2 Functionalized Carbon Support Materials

The carbon supports play a critical role in determining catalyst performance and stability [1,2,3]. Porous carbons have internal pores within their primary particles and often have very high surface areas (500–2000 m²/g), suitable for Pt deposition. Due to the internal porosity of porous carbons, many Pt nanoparticles can be deposited in the interior of the micropores [4]. The carbon micropores normally have very narrow openings (1–4 nm), and the pores themselves can be tortuous [5,6]. Electrochemical measurements showed that when the catalyst was fabricated to form the catalyst layer, the ionomer did not penetrate into the small pores to contact these interior Pt nanoparticles [7,8,9,10,11]. On the basis of this physical structure, Figure 1.1 illustrates the kinetic and transport properties of the catalysts using different carbon supports [5]. Solid carbon-supported Pt catalysts have relatively poor activity due to the poisoning of the active sites by the ionomer but have good transport properties. In contrast, on porous carbon catalysts, the interior Pt nanoparticles uncoated by ionomers have good activity but restricted access to protons and reactant gases. The performance loss due to local transport depends on the required local flux of reactants. Therefore, PEMFC with low Pt loading will become more susceptible to this loss at a high power load. Based on the reasons mentioned, excellent carbon support needs to have some important pore characteristics. It should have accessible internal-connected porous structures that can host catalyst nanoparticles and prevent them from direct contact with ionomers but still allow protons and hydrogen/oxygen to have reasonable access to the catalytic species. Furthermore, the pore depth and tortuosity should not be too large. The accessible carbon pores should have a reasonably small opening to restrict ionomer penetration but not too small to restrict oxygen transport to the catalytic sites. The concept is straightforward, but it will not be easy to use a reasonable method to manufacture carbon support that meets all of the requirements.

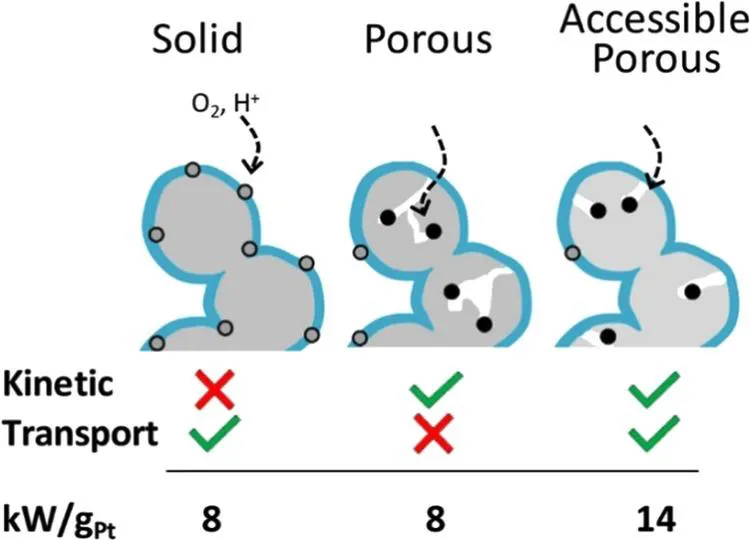

Figure 1.1 ORR kinetic and transport (O₂ and proton) characteristics of catalyst layer structures made from three types of carbon (gray). Small black and gray circles represent relatively high and low activity Pt particles, respectively, due to ionomer (blue) adsorption [5].

1.2.1 Carbon Nanospheres

Carbon spheres with a nanometer diameter are widely employed as the catalyst support for PEMFCs. As one of the products manufactured by pyrolyzing petroleum hydrocarbon, carbon nanospheres (or carbon blacks) are the most commonly used supports for Pt-based catalysts for PEMFCs in many studies and commercial applications. Carbon nanospheres consist of near-spherical particles, <50 nm in diameter. These coalesce into particle aggregates and agglomerates of around 250 nm in diameter. Typical carbon nanospheres, such as Vulcan XC-72, acetylene black, and Ketjenblack, possess different physicochemical characteristics (specific surface area, electronic conductivity, the surface-to-volume ratio, stability, and surface functionality). Vulcan XC-72 nanoparticles have attracted special attention due to their excellent compromise between adequate surface area (~250 m²/g) and high electric conductivity (~2.77 S/cm). Acetylene black is a material produced by the incomplete combustion of ethylene cracking tar. Researchers have applied acetylene black as carbon support for a range of applications for many years. Uchida and co-workers reported the high specific activity of Pt/C with acetylene black as carbon support for PEMFCs and direct methanol fuel cells [12,13]. Acetylene black mainly has the following characteristics: (i) low resistivity, (ii) ability to absorb and reserve an effective volume of electrolyte without cutting down its ability to mix with the active material, (iii) high surface area...
