The Unified Modeling Language, better known as UML, has become the de facto standard modeling language for analyzing and designing software applications and systems. Software analysis and design is just as much an art as it is a science. UML Diagramming: A Catalog of Cases shows the art and the science behind successful software analysis and design with more than 35 case studies of applications of a variety of industries, including:
- Transportation
- Healthcare
- Supply chain management
- Education
- Agriculture
- Manufacturing
The book explains UML diagramming through case studies to help systems and software developers specify, visualize, construct, and document the artifacts of software systems. The cases demonstrate how UML embodies software engineering best practices for modeling large and complex systems. They show how UML is an intuitive diagramming language that can be easily understood by end-users and business professionals. These cases studies also demonstrate how UML is a powerful language for communicating software designs to help developers and end users validate application scope, requirements, and features. Case studies highlighted in the book included:
- WEBMED healthcare service system services
- Inventory management system
- Business process outsourcing (BPO) management system
- Weather monitoring system
- Product recommendation system
- Textile management system
- Smart traffic management system
- Online pharmacy management system
- Placement automation system
- Farm management system
- Art gallery management system
- Website development
This catalog of UML case studies is an invaluable reference for students studying software engineering, programmers starting out their careers, and seasoned systems developers needing a reference guide.
Frequently asked questions
Yes, you can cancel anytime from the Subscription tab in your account settings on the Perlego website. Your subscription will stay active until the end of your current billing period. Learn how to cancel your subscription.
At the moment all of our mobile-responsive ePub books are available to download via the app. Most of our PDFs are also available to download and we're working on making the final remaining ones downloadable now. Learn more here.
Perlego offers two plans: Essential and Complete
- Essential is ideal for learners and professionals who enjoy exploring a wide range of subjects. Access the Essential Library with 800,000+ trusted titles and best-sellers across business, personal growth, and the humanities. Includes unlimited reading time and Standard Read Aloud voice.
- Complete: Perfect for advanced learners and researchers needing full, unrestricted access. Unlock 1.4M+ books across hundreds of subjects, including academic and specialized titles. The Complete Plan also includes advanced features like Premium Read Aloud and Research Assistant.
We are an online textbook subscription service, where you can get access to an entire online library for less than the price of a single book per month. With over 1 million books across 1000+ topics, we’ve got you covered! Learn more here.
Look out for the read-aloud symbol on your next book to see if you can listen to it. The read-aloud tool reads text aloud for you, highlighting the text as it is being read. You can pause it, speed it up and slow it down. Learn more here.
Yes! You can use the Perlego app on both iOS or Android devices to read anytime, anywhere — even offline. Perfect for commutes or when you’re on the go.
Please note we cannot support devices running on iOS 13 and Android 7 or earlier. Learn more about using the app.
Please note we cannot support devices running on iOS 13 and Android 7 or earlier. Learn more about using the app.
Yes, you can access UML Diagramming by Suriya Sundaramoorthy in PDF and/or ePUB format, as well as other popular books in Ciencia de la computación & Ciencias computacionales general. We have over one million books available in our catalogue for you to explore.
Information
Chapter 1
Introduction to UML Diagrams and Its Components
DOI: 10.1201/9781003287124-1
1.1 UP Phases

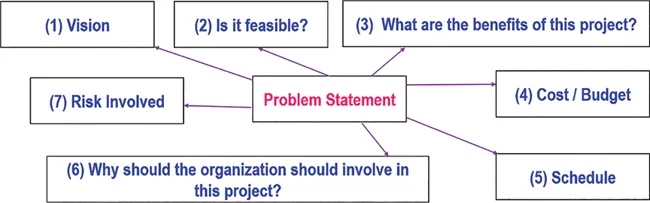

An approach that helps a user to build, deploy and maintain a software is termed as Software Development Process. Such a Software Development Process which is required to build an Object Oriented System is called as ‘Unified Process’. Craig Larman states Unified Process as ‘The Unified Process (UP) combines commonly accepted best practices, such as an iterative lifecycle and risk-driven development, into a cohesive and well-documented description/process’. There are four phases of the Unified Process, namely Inception, Elaboration, Construction and Transition. The inception phase takes a problem statement from a client as input. It traces answers for the below seven questions to generate a report to decide about the feasibility of developing the software (Figure 1.1).

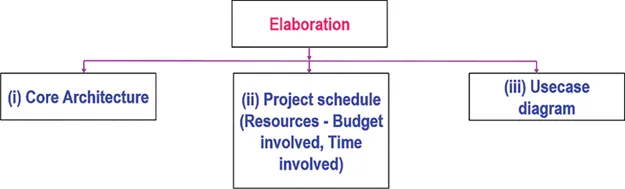

The elaboration phase takes the report generated by the inception phase as input to perform its processing. It involves three main activities like developing a core architecture for the given system, developing a project schedule and finally sketching a Unified Modeling Language (UML) Usecase diagram (Figure 1.2).

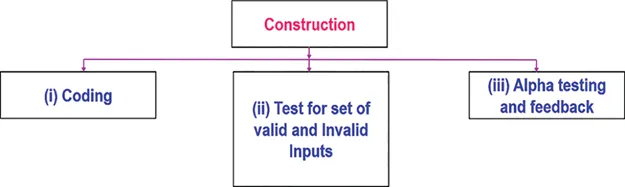

The construction phase involves a set of three activities, namely, coding, testing and feedback. Notable point is that the construction phase involves Alpha testing, i.e. testing a software at the developer site (Figure 1.3).

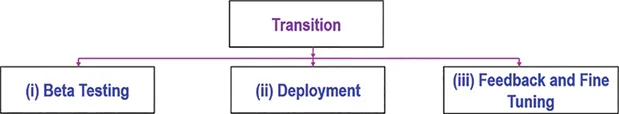

The transition phase involves Beta testing, i.e. testing a software at the client site without the support of developers, followed by deployment, and finally, fine tuning is done based on feedback from the client’s side (Figure 1.4).
1.1.1 UML

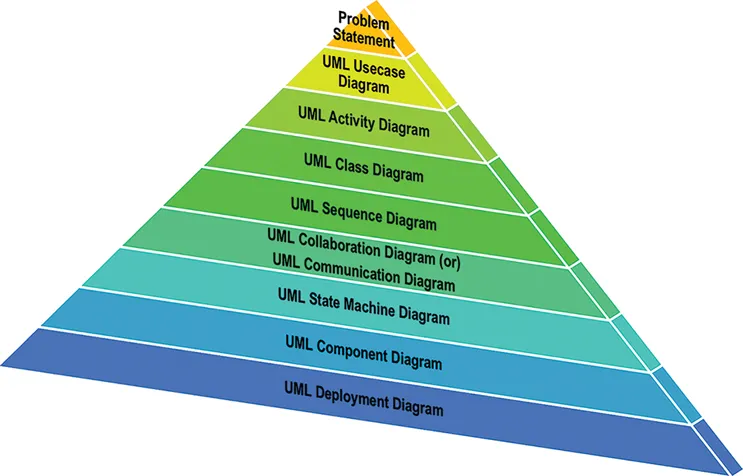

It is a standard diagrammatic tool for designing. It is a graphical language for specifying, visualizing, constructing and documenting the artefacts of software systems. It helps in better understanding of the software or system or product to be developed among developers and customers. UML diagrams include major important diagrams like UML Usecase Diagram, UML Activity Diagram, UML Class Diagram, UML Sequence Diagram, UML Collaboration Diagram or UML Communication Diagram, UML State Machine Diagram, UML Component Diagram and UML Deployment Diagram (Figure 1.5 and Table 1.1).
| S. No | UML Diagram | Purpose of the UML Diagram |
|---|---|---|
| 1 | UML Usecase Diagram | It focuses on the identification of functional requirements of the system under consideration. |
| 2 | UML Activity Diagram | It focuses on sequential and parallel activities involved in each functional requirement of the system. |
| 3 | UML Class Diagram | It describes the structure of the system in terms of classes and objects. |
| 4 | UML Sequence Diagram | It depicts the objects ... |
