Programming the BeagleBone Blue

Before you get started with building your robotic projects, let's take a bit of time to either introduce or review how to program the BeagleBone Blue.

In this chapter, you will:

• Learn some of the basic Linux commands and get to know how to navigate around the filesystem on the BeagleBone Blue
• Learn how to create, edit, and save files on the BeagleBone Blue
• Learn how to create and run Python programs on the BeagleBone Blue
• Learn how the C programming language is both similar and different from Python so you can both create and edit C code files

Now that things are up and running, you'll want your BeagleBone Blue to start doing something. Almost always, this requires you to either create your own programs or edit someone else's programs. This chapter will provide a brief introduction to basic Linux commands and Python and C programming.

While it is fun to build hardware, and you'll spend a good deal of time actually designing and building your robots; without programming, your robots won't get very far. This chapter will introduce you to some important tasks such as file creation and editing as well as some Python and C programming concepts so you'll feel comfortable creating some of the fairly simple programs that you'll learn about throughout the book. You'll also learn how to change programs that are already available, making your robot do even more amazing things.

You're going to use the basic configuration that you created in Chapter 1, Getting Started with the BeagleBone Blue. You can accomplish the tasks in this chapter either by remotely logging into the BeagleBone Blue using VNC server or remotely logging using SSH.

Basic Linux commands showing how to navigate around the filesystem on the BeagleBone Blue

After completing Chapter 1, Getting Started with the BeagleBone Blue , you should have a working BeagleBone Blue running a version of Linux called Ubuntu. We selected this one because it is the most popular and thus has the largest set of supported hardware and software. The commands I am going to review should also work with other versions of Linux, but I'll be showing examples using Ubuntu.

So, power up your BeagleBone Blue, connect via Wi-Fi, and log in to user SSH with the proper username and password. Now you are ready for a quick tour of Linux. This will not be extensive, but you will learn some of the basic commands and how to access some fundamental functionality.

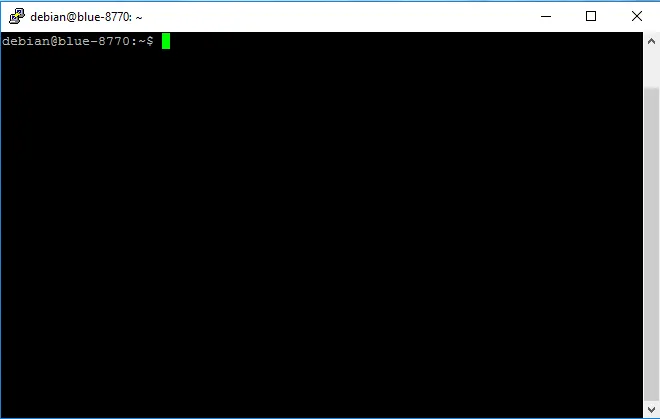

Once you have logged in, you should have an active Terminal window. It should look something like this:

Your cursor is at Command Prompt. Unlike Microsoft Windows or Apple's OS, most of our work will be done by actually typing commands into the command line. So, let's try a few. First, type ls, and you should see something like this:

The ls command in Linux is the list command, and it lists all the files and directories in the current directory. If you'd like more information on your files, you can type ls -l. This should display the following screenshot:

This command provides information about who owns the files, the time they were created, and the various permissions on the files. The files are listed by their names, you can tell the directories because they are normally in a different color, and the letter d proceeds the lines for those listing. In this case, Videos is a directory. The default installation of debian has only a single bin directory, and installing the Xfce windows manager creates the Desktop, Documents, Downloads, Music, Pictures, Public, Templates, and Videos directories.

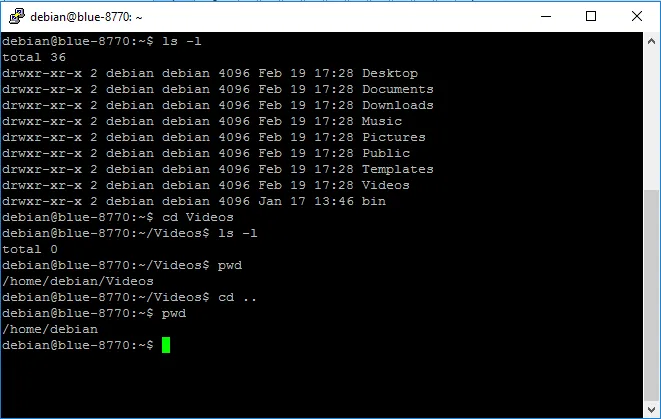

You can move around the directory structure by issuing the cd (change-directory) command. For example, if you want to see what is in the Videos directory, type cd Videos. Now if you issue the ls -l command, you should see something like this:

This directory is empty. Now, I should point out that you used a shortcut when you typed cd Videos. This command assumed that you wanted to start from the current directory. You can always find the full directory name of your current directory by typing pwd (print working directory). If you do that, here is what you should get:

To get to this same directory, you could also have typed cd /home/debian/Videos and gotten the exact same result, because you started in the /home/debian directory, which is the directory where you always start when you first log into the system.

Now, you can use two different shortcuts to move back to the default directory. The first is to type cd ..; this will take you to the directory just above this one in the hierarchy. Do this and then type pwd, and you should see the following:

The other way to get back to the home directory is to type cd ~ as this will always return you to the home directory. You can use these shortcuts, or you can use the entire path name. In this case, if you want to go to the /home/ubuntu/Video directory from anywhere in the file system, simply type cd /home/ubuntu/Video and you will go to that directory.

There are a number of other Linux commands that you might find useful as you program your robot. Here is a table with some of the more useful commands:

Linux command:	What it does:
ls -l	List-long: Lists all the files and directories in the current directory. This includes lots of extra information about the file, including the time at which it was created, permissions, owners, and so on.
ls	List-short: Lists all the files and directories in the current directory by just their names.
rm filename	Remove: Removes whichever file is specified by the filename.
mv filename1 filename2	Move: Renames filename1 to filename2.
cp filename1 filename2	Copy: Copies filename1 to filename2.
mkdir directoryname	Make directory: Makes a directory with the name directoryname; this will be made in the current directory unless otherwise specified.
clear	Clear: Clears the current Terminal window.
sudo	Super user: If you type the sudo command in front of any command, it will execute that command as the super user. This can be required if the command or program you are trying to execute needs super user permissions. If, at any point in this book, you type a command or the name of program you want to run and it seems to suggest that the command does not exist, or permission is denied, try it again with sudo in front of the command or the name of the program.

Now you can play around and look at your system and the files that are available to you. Be a bit careful! Linux is not like Windows; it will not warn you if you try to delete a file or copy over a current file. And if you delete the wrong file, your system may no longer be usable and you'll need to reinstall the Debian operating system.

If you need to reinstall the operating system, go to beagleboard.org, select your board, and go to the getting started tab. It will give you instructions on how to download and install the latest operating systems.

Creating, editing, and saving files on the BeagleBone Blue

Now that you can log in and move easily between directories and see which files are in your directories, you'll want to be able to edit those files. To do this, you'll need a program that allows you to edit the characters in a file. If you have worked in Microsoft Windows, you probably have used a program such as Microsoft Notepad, WordPad, or Word to do this. As you might imagine...
