Mapping Clusters with ArcGIS Tools

Many things in life naturally tend to cluster. Housing, businesses, trees, and crimes are all examples of clustering. The degree of this clustering is also important. The tools in the Mapping Clusters toolset don't just answer the question "Is there clustering?", but they also answer the question "Where is the clustering?"

The Mapping Clusters tools are helpful in identifying statistically significant hot and cold spots, spatial outliers, as well as locating similar features, and grouping features. This toolset can also be used to define actions that should take place based on the location of clusters. For example, the Mapping Clusters tools can be used to identify areas of high crime activity (burglaries, for example) that can be useful in allocating police officers to deal with this activity in those areas. While these clusters don't typically identify why a phenomena is occurring, they can often provide clues.

The tools in this toolset allow us to visualize the patterns of clustering in our datasets. This is unlike the tools we examined in Chapter 3, Analyzing Patterns with ArcGIS Tools, that gave us a simple Yes or No as an answer to the question of whether our dataset was clustered or dispersed.

In this chapter, you will learn how to use many of these tools, including the following ones, to determine various cluster analyses :

• The Similarity Search tool
• The Grouping Analysis tool
• The Hot Spot Analysis tool
• The Optimized Hot Spot Analysis tool
• The Cluster and Outlier Analysis tool

Using the Similarity Search tool

The Similarity Search tool is used to identify candidate features that are mot similar or most dissimilar to one or more input features by on the attributes of a feature. For input, you select either a layer or a selected subset of a layer. The tool can be used to select most similar, least similar, or both. Dissimilar searches can be equally as important as similarity searches. For example, a community development organization, in its attempts to attract new businesses, might show that their city is dissimilar to other competing cities when comparing crimes.

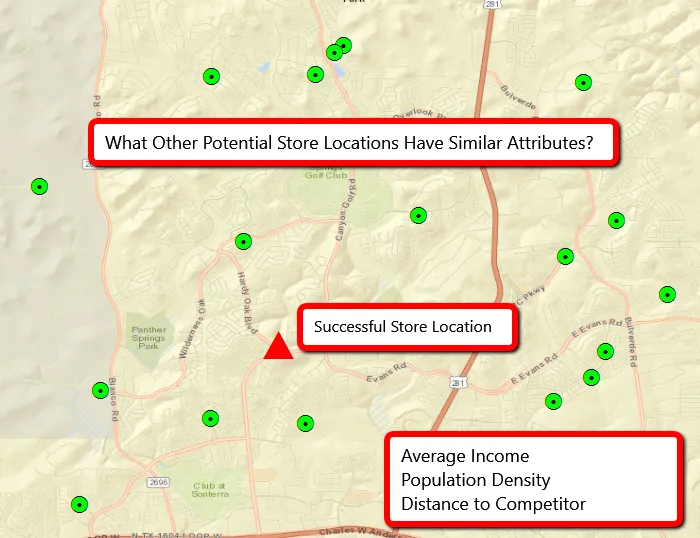

Here is an example of when using the Similarity Search tool would be appropriate. The following screenshot displays a successful store location along with several potential new store locations. This current successful location has a number of attached attributes, including Average Income, Population Density, and Distance to Competitor. A number of possible candidate features are displayed as green points. This layer also includes the same attributes. Using the Similarity Search tool, we can define which of those potential candidate locations is most similar to the successful store location and create a ranking of the potential stores:

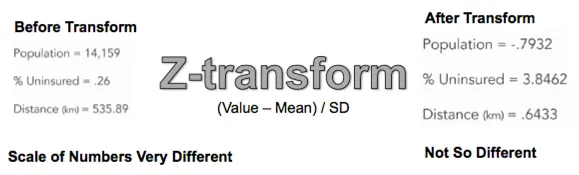

So what does it mean to be similar? How does the tool actually work? The first thing that needs to be done is a standardization of the attributes. Since we're most often working with several attributes in the analysis, we don't want one attribute to overwhelm the others. For example, if you were using population, percent uninsured, and distance to store as the primary attributes, population could easily overwhelm the other attributes because of the size of the numbers. Population numbers tend to be really large, whereas a percentage of uninsured will be less than 1.0. The scale of the numbers is very different. So the tool uses a process called Z-transform to create new values for population, percent uninsured, and distance. The calculation for Z-transform is to subtract the mean from the value and then divide by the standard deviation. This is illustrated in the following screenshot:

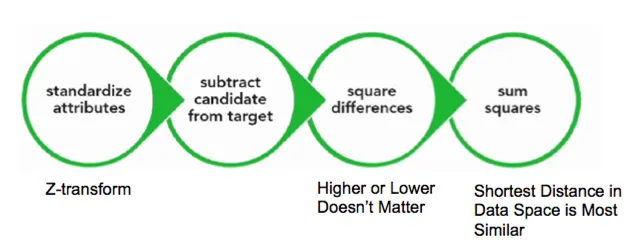

Once the Z-transform has been performed to standardize the attribute, the tool subtracts the candidate values from the target and squares the differences. The differences are squared because we don't want higher or lower values to matter. We just want the actual distance in data space. Finally, the sum of the squares for each of the attributes is calculated and the shortest distance in data space is defined as the most similar:

In this exercise, you'll learn how to use the Similarity Search tool on various demographic attributes.

Preparation

Let's get prepared before we use the Similarity Search tool by performing the following steps:

1. In the ArcMap window, open the C:\GeospatialTraining\SpatialStats\DenverDemographics.mxd file. You should see a polygon feature class called Denver_Census_Tracts_Prj, which is a census tracts layer projected to NAD 83 UTM Zone 13.You will need to add a layer called DenverTractHispanicHigh.shp. This layer has already been projected for you, but keep in mind that when you start using your own datasets for analysis, you'll need to project the data into a coordinate system that accurately represents distances. The DenverTractHispanicHigh feature class contains a single polygon feature that represents the census tract in Denver with the highest percentage of Hispanic population (84.78%):

2. Open the attribute table for Denver_Census_Tracts_Prj and examine some of the many attribute values. In this exercise, we will use the PCT_HISPAN and RENTED fields to find census tracts that are similar to that provided in the single feature found in the DenverTractHispanicHigh layer in terms of the Hispanic population that rents a home.

Running the Similarity Search tool

Let's run the Similarity Search tool by performing the following steps:

1. If necessary, open the ArcToolbox toolbox and find the Spatial Statistics Tools toolbox. Open the toolbox and expand the Mapping Clusters toolset. Double-click on the Similarity Search tool to display the tool. Select the following input parameters:
   • Input Features to Match: DenverTractHispanicHigh
   • Candidate Features: Denver_Census_Tracts_Prj
   • Output Features: C:\Users\<user>\Documents\ArcGIS\Default.gdb\DenverTractHispanicHigh_Simi
   • Most or Least Similar: MOST_SIMILAR
   • Match Method: ATTRIBUTE_...
