Implementing Azure Solutions

Deploy and manage Azure containers and build Azure solutions with ease, 2nd Edition

Florian Klaffenbach, Markus Klein, Sebastian Hoppe, Oliver Michalski, Jan-Henrik Damaschke

• Publisher: Packt Publishing
• Year: 2018
• Print ISBN: 9781789343045
• eBook ISBN: 9781789346770
• Edition: 2
• Topic: Computer Science
• Subtopic: Cloud Computing
• Index: Computer Science

Get up and running with Azure services and learn how to implement them in your organization

Key Features

• Deploy Azure Services in a controlled and preconfigured environment
• Discover best practices and techniques for implementing Azure Solutions
• Build and deploy an app using Azure App Services

Book Description

Microsoft Azure offers numerous solutions that can shape the future of any business. However, the major challenge that architects and administrators face lies in implementing these solutions.

Implementing Azure Solutions helps you overcome this challenge by enabling you to implement Azure Solutions effectively. The book begins by guiding you in choosing the backend structure for your solutions. You will then work with the Azure toolkit and learn how to use Azure Managed Apps to share your solutions with the Azure service catalog. The book then focuses on various implementation techniques and best practices such as implementing Azure Cloud Services by configuring, deploying, and managing cloud services. As you progress through the chapters, you'll learn how to work with Azure-managed Kubernetes and Azure Container Services.

By the end of the book, you will be able to build robust cloud solutions on Azure.

What you will learn

• Create and manage a Kubernetes cluster in Azure Kubernetes Service (AKS)
• Implement site-to-site VPN and ExpressRoute connections in your environment
• Explore the best practices in building and deploying app services
• Use Telemetry to monitor your Azure Solutions
• Design an Azure IoT solution and learn how to operate in different scenarios
• Implement a Hybrid Azure Design using Azure Stack

Who this book is for

If you're an IT architect, IT professional, or DevOps engineer who plans to implement Azure Solutions for your organization, this book is for you.

Implementing Azure Networks

Just as you plan the network in your data center or company, you need to do it in Azure also. Networking is essential in Azure and if you do not plan it right you could force outages or bottlenecks for deployed services.

Depending on what you plan with Azure, you should put some effort in planning your network and connections into Azure.

Within this chapter, you will learn the basics about Azure networking, how to implement Azure networking, and how to decide which WAN and connectivity solution you should use.

We are going to explore the following topics:

• Azure virtual networks
• Azure virtual network gateways
• Azure local gateways
• Azure site-to-site and point-to-site VPN
• Azure ExpressRoute
• Azure virtual WAN
• Azure Firewall
• Azure DDoS
• Azure connections and routes
• Azure DNS
• Azure application gateway

We will also set up a basic network configuration during this chapter.

Azure networking limits

Microsoft offers a wide range of capabilities when it comes to networking in and to Azure. That makes a network solution very flexible but also complex. You have many options to achieve your goal, but to do so you need to keep some limitations in mind. Behind the following link, you can find those Azure limitations: https://docs.microsoft.com/en-us/azure/azure-subscription-service-limits.

Azure networking components

To start with Azure networking, you need to know and understand the components which are needed to set up an Azure solution.

Let us start from the easiest part to the more difficult ones.

Azure virtual networks (VNet)

An Azure VNet is a logical isolated network for your services connected to your subscription in Azure. You have full control about the IP address blocks, DNS settings, security policies, and route tables within this network. You can also split your VNet into subnet and launch Azure IaaS virtual machines and cloud services within these subnets. By using Azure virtual gateways and WAN solutions, you can also connect your virtual networks to the internet or your on-premises environment.

When you look for Azure VNet in Azure, you basically search for the network and you should see the symbol shown in the following screenshot:

Normally you're setting up a network like you do in your on-premises network. You create a network with an IP range such as 10.0.0.0/16 and split it up into different subnetworks. Every Azure VNet has at least a minimum of two subnets. The first is the gateway subnet, which is basically a router network where every internal network router for the other Azure VNet subnetworks is in. We personally prefer to use the first subnet of the Azure VNet as the gateway subnet but you can choose any subnet you like. The only thing you need to know is that the gateway subnet needs a minimum of /29 CIDR IPs. I normally recommend /24 CIDR. You would never use it but it's logical and you can follow up with a /24 CIDR subnet design. The second one is the network for your services or servers depending on your own design, normally it is /24 CIDR.

As of September 2016, Azure started to support IPv6 to be used in Azure. The deployment and support of IPv6 is still in progress while writing the book.

The following diagram shows you an example for a network configuration:

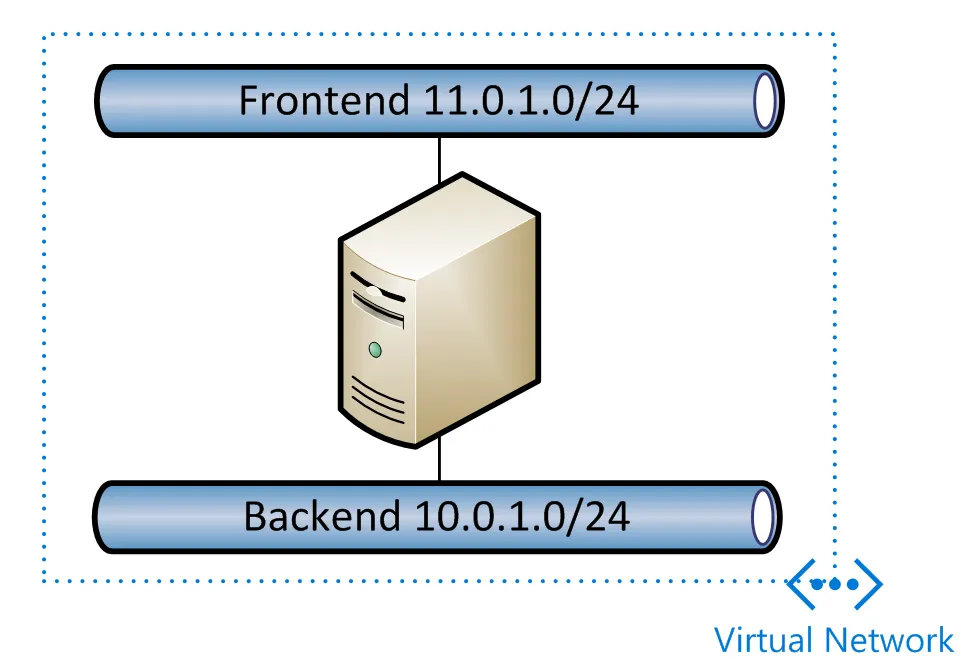

All subnetworks are fully routed to each other. That is not the best situation in most of the cases. One example is when you need a Frontend and a Backend network in Azure, as shown in the following diagram:

Currently there are only two ways to resolve that issue:

• The first one is to create two subnetworks and put a virtual machine with two network adapters in both networks and route within the virtual machine and prevent default routing with configuration of route filters
• The other way is to implement custom routes and send packages for the frontend network into the either of your other Azure or on premises networks

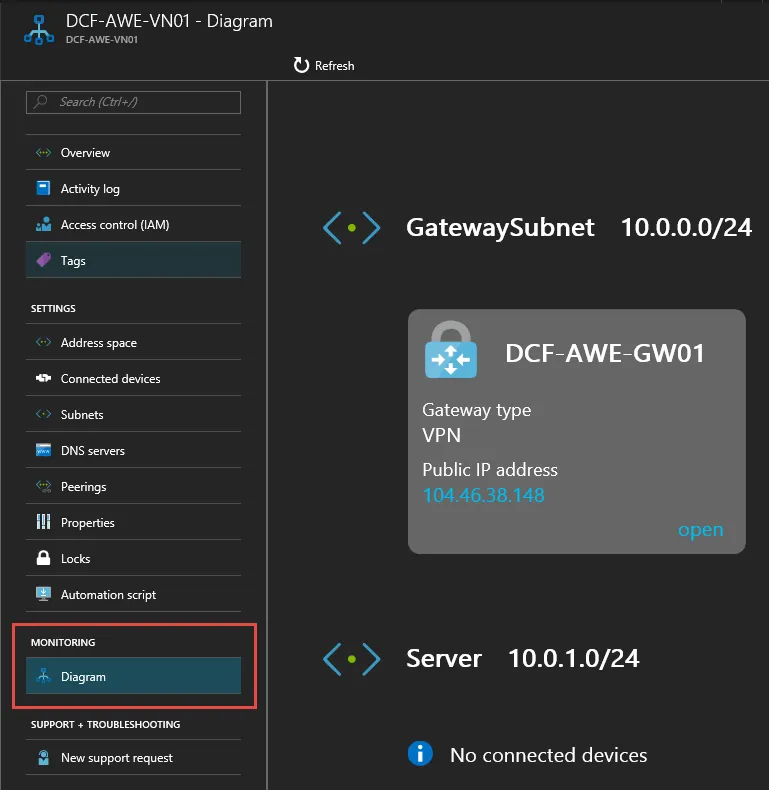

There is a great nice to know within the VNet setting. Under MONITORING, you can see a detailed networking diagram of your Azure network.

The following screenshot shows an example of a Diagram:

VNet peering and global VNet peering

There is also an option to ...
