Understand and build beautiful and advanced plots with Matplotlib and Python

Key Features

• Practical guide with hands-on examples to design interactive plots
• Advanced techniques to constructing complex plots
• Explore 3D plotting and visualization using Jupyter Notebook

Book Description

In this book, you'll get hands-on with customizing your data plots with the help of Matplotlib. You'll start with customizing plots, making a handful of special-purpose plots, and building 3D plots. You'll explore non-trivial layouts, Pylab customization, and more about tile configuration. You'll be able to add text, put lines in plots, and also handle polygons, shapes, and annotations. Non-Cartesian and vector plots are exciting to construct, and you'll explore them further in this book. You'll delve into niche plots and visualize ordinal and tabular data. In this book, you'll be exploring 3D plotting, one of the best features when it comes to 3D data visualization, along with Jupyter Notebook, widgets, and creating movies for enhanced data representation. Geospatial plotting will also be explored. Finally, you'll learn how to create interactive plots with the help of Jupyter.

Learn expert techniques for effective data visualization using Matplotlib 3 and Python with our latest offering -- Matplotlib 3.0 Cookbook

What you will learn

• Deal with non-trivial and unusual plots
• Understanding Basemap methods
• Customize and represent data in 3D
• Construct Non-Cartesian and vector plots
• Design interactive plots using Jupyter Notebook
• Make movies for enhanced data representation

Who this book is for

This book is aimed at individuals who want to explore data visualization techniques. A basic knowledge of Matplotlib and Python is required.

Drawing on Plots

Till now, we have studied how to use style sheets to customize plot appearances, and how to tweak multi-panel plots to give more complex and appealing layouts for different kinds of plotting applications.

Matplotlib allows you to make plots that really show your own individual style. We will learn how to draw on plots to provide the viewer with visual guides that point them toward the important features of data. We will discuss adding horizontal and vertical lines, along with tweaking a background grid.

Versatile annotating adds arrows and some text to these arrows to the plots in order to customize the appearance of these annotations.

In this chapter, we will look at the following topics:

• How to put lines in place
• How to add text on plots
• How to play with polygons and shapes
• How to add different kinds of annotations

Putting lines in place

This section describes adding horizontal and vertical lines along with adding and tweaking a background grid.

Adding horizontal and vertical lines

We will begin by importing our required libraries, as shown:

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
%matplotlib inline
# Set up figure size and DPI for screen demo
plt.rcParams['figure.figsize'] = (6,4)
plt.rcParams['figure.dpi'] = 150

1. We will create the simple sine plot that we saw in Chapter 1, Heavy Customization, as follows:

# Adding a horizontal and vertical line
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))

We will get the following output:

2. Now, to add an annotation, say, a line that splits the region between stuff above and below 0.5, add a horizontal line using axhline(0.5), as shown here. ax stands for the x axis and gives a value in the y co-ordinate for the horizontal line:

# Adding a horizontal and vertical line
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhline(0.5)

We will get the following output:

3. To color this horizontal line red, insert the following code:

# Adding a horizontal and vertical line
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhline(0.5, color='r')

We will get the following output:

4. To add a vertical line right at the first maximum, input pi/2 and color this red, along with a dashed line:

# Adding a horizontal and vertical line
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhline(0.5, color='r')
plt.axvline(np.pi/2., color='r', linestyle='--')

Here we can see axv for the vertical line instead of axhline:

Adding spans that cover whole regions

To color the whole region, say between 0.5 and -0.5, insert the horizontal span as follows:

# Adding a horizontal and vertical span
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhspan(-0.5,0.5)

We get the output here as follows:

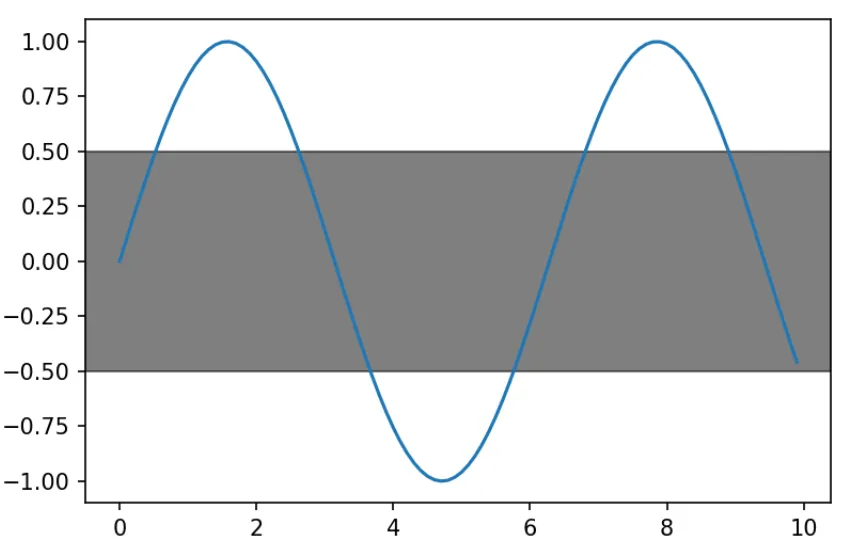

But the shaded region blocks out a lot of our data. Hence, we will make this black and give it an alpha of 0.5, as follows:

# Adding a horizontal and vertical span
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhspan(-0.5,0.5, alpha=0.5)

We will get the following output:

Performing the same thing for a vertical span will give you a region between -0.5 and 0.5. Just like any of the other plotting commands that involve areas, we can give this hatches, change the color of it, and add any of the appearance attributes as well, as shown in the following code:

# Adding a horizontal and vertical span
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axvspan(-0.5,0.5, color='k', alpha=0.5)

The output can be seen as follows:

We can also set how far the vertical line goes across the axis. By default, the vertical line covers up the entire axis, as follows:

# Adding a horizontal and vertical span
nums = np.arange(0,10,0.1)
plt.plot(nums, np.sin(nums))
plt.axhspan(-0.5,0.5, alpha=0.5)

We will get the following output:

Now, if we pass a third keyword argument, xmin, we can give a minimum value, and xmax as the...
