Hands-On AWS Penetration Testing with Kali Linux

Set up a virtual lab and pentest major AWS services, including EC2, S3, Lambda, and CloudFormation

Karl Gilbert, Benjamin Caudill

• Publisher: Packt Publishing
• Year: 2019
• Print ISBN: 9781789136722
• eBook ISBN: 9781789139037
• Edition: 1
• Topic: Computer Science
• Subtopic: Cloud Computing
• Index: Computer Science

Identify tools and techniques to secure and perform a penetration test on an AWS infrastructure using Kali Linux

Key Features

• Efficiently perform penetration testing techniques on your public cloud instances
• Learn not only to cover loopholes but also to automate security monitoring and alerting within your cloud-based deployment pipelines
• A step-by-step guide that will help you leverage the most widely used security platform to secure your AWS Cloud environment

Book Description

The cloud is taking over the IT industry. Any organization housing a large amount of data or a large infrastructure has started moving cloud-ward — and AWS rules the roost when it comes to cloud service providers, with its closest competitor having less than half of its market share. This highlights the importance of security on the cloud, especially on AWS. While a lot has been said (and written) about how cloud environments can be secured, performing external security assessments in the form of pentests on AWS is still seen as a dark art.

This book aims to help pentesters as well as seasoned system administrators with a hands-on approach to pentesting the various cloud services provided by Amazon through AWS using Kali Linux. To make things easier for novice pentesters, the book focuses on building a practice lab and refining penetration testing with Kali Linux on the cloud. This is helpful not only for beginners but also for pentesters who want to set up a pentesting environment in their private cloud, using Kali Linux to perform a white-box assessment of their own cloud resources. Besides this, there is a lot of in-depth coverage of the large variety of AWS services that are often overlooked during a pentest — from serverless infrastructure to automated deployment pipelines.

By the end of this book, you will be able to identify possible vulnerable areas efficiently and secure your AWS cloud environment.

What you will learn

• Familiarize yourself with and pentest the most common external-facing AWS services
• Audit your own infrastructure and identify flaws, weaknesses, and loopholes
• Demonstrate the process of lateral and vertical movement through a partially compromised AWS account
• Maintain stealth and persistence within a compromised AWS account
• Master a hands-on approach to pentesting
• Discover a number of automated tools to ease the process of continuously assessing and improving the security stance of an AWS infrastructure

Who this book is for

If you are a security analyst or a penetration tester and are interested in exploiting Cloud environments to reveal vulnerable areas and secure them, then this book is for you.

A basic understanding of penetration testing, cloud computing, and its security concepts is mandatory.

Section 1: Kali Linux on AWS

This section is a beginner-oriented introduction to how an individual without access to a ready-made AWS environment can set up a lab to practice their pentesting skills, as well as the ways in which they may practice their skills. It also walks the reader through the process of setting up a Kali pentestbox on AWS that can be easily accessed on the go, using nothing more than a web browser.

The following chapters will be covered in this section:

• Chapter 1, Setting Up a Pentesting Lab on AWS
• Chapter 2, Setting Up a Kali Pentestbox on the Cloud
• Chapter 3, Exploitation on the Cloud using Kali Linux

Setting Up a Pentesting Lab on AWS

This chapter aims to help penetration testers who don't have direct access to targets for penetration testing set up a vulnerable lab environment within AWS. This lab will allow testers to practice various exploitation techniques using Metasploit and rudimentary scanning and vulnerability assessment using multiple tools within Kali. This chapter focuses on setting up a vulnerable Linux VM and a generic Windows VM on AWS, putting them on the same network.

In this chapter, we will cover the following topics:

• Setting up a personal pentesting lab for hacking on the cloud
• Configuring and securing the virtual lab to prevent unintended access

Technical requirements

In this chapter, we are going to use the following tools:

• Damn Vulnerable Web Application
• Very Secure File Transfer Protocol Daemon (vsftpd) version 2.3.4

Setting up a vulnerable Ubuntu instance

As the first of the two vulnerable machines that we will be creating, the vulnerable instance of Ubuntu will contain a single vulnerable FTP service, as well as some other services.

Provisioning an Ubuntu EC2 instance

The very first step in setting up our vulnerable lab in the cloud will be to provision an instance that will be running a vulnerable operating system. For this purpose, we can use an Ubuntu LTS version. This can be accessed from the AWS Marketplace for quick deployment.

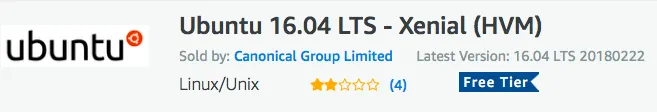

We will use Ubuntu 16.04 for this purpose:

Once we click on the Continue to Subscribe button, we are prompted to configure the instance that we are going to launch. Since this is a pretty standard image, we will proceed with the default settings except for Region and VPC settings.

For Region, you can use the AWS Region that is closest to yourself. However, keep in mind that all the other instances you create on AWS need to be hosted in the same region or they cannot be a part of the same network.

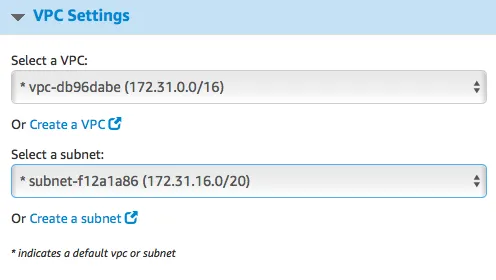

For VPC, make sure you note down the VPC and the subnet IDs that you are using to set up this instance. We will need to reuse them for all the other hosts in the lab. In this case, I will be using the following:

It should be noted that the VPC IDs and the subnet IDs will be unique for everyone. Once done, we can proceed to deploy the EC2 instance by clicking on the Launch with the 1-Click button.

Once done, the next step is to SSH into the newly created VM using the following command:

ssh -i <pem file> <IP address of the instance>

Once connected, run the following command:

sudo apt-get update && sudo apt-get dist-upgrade

These commands will update the repository listing and all the packages installed on the instance, so we don't have to deal with any old packages.

Installing a vulnerable service on Ubuntu

For this Ubuntu host, we will be installing a vulnerable version of an FTP server, vsftpd. Version 2.3.4 of this FTP software was found to be backdoored. In this chapter, we will be installing this backdoored version and then will attempt to identify it using a pentesting box we will set up in the next chapter, and finally we will exploit it.

To make things easier, the backdoored version of vsftpd 2.3.4 is archived on GitHub. We shall be using that code base to install the vulnerable software. To start with, we need to clone the git repository:

git clone https://github.com/nikdubois/vsftpd-2.3.4-infected.git

Next, we need to install packages for setting up a primary build environment. To do this, we run the following:

sudo apt-get install build-essential

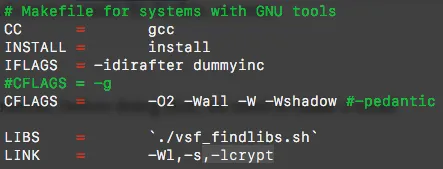

Now, we cd into the vsftpd folder to build it from source. However, before doing that, we need to make a small change to the Makefile. The -lcrypt value needs to be added as a linker flag:

Once done, save the file and just run make.

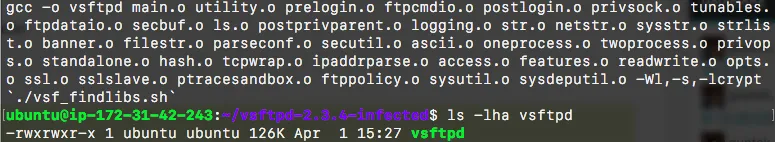

If all goes well, we should see a vsftpd binary in the same folder:

Next, we need to set up some prerequisites before installing vsftpd. Namely, we need to add a user called nobody and a folder called empty. To do that, run the following commands:

useradd nobody
mkdir /usr/share/empty

Once done, we can run the installation by exec...
