The Nuts and Bolts of Implantable Device Therapy

Pacemakers

Tom Kenny

• Publisher: Wiley-Blackwell
• Year: 2014
• Print ISBN: 9781118670675
• eBook ISBN: 9781118670668
• Edition: 1
• Topic: Medicine
• Subtopic: Cardiology

• Tom Kenny, one of the best-known and well-respected educators in EP brings his signature style to this new primer
• Practical, accessible, highly illustrated approach makes learning easy
• Provides an overview of the algorithms and devices offered by the world's five pacemaker manufacturers
• Offers clinicians learning objectives, test questions and essential points in bulleted lists
• Perfect introductory guide to the topic, assumes little baseline knowledge and appropriate for residents, fellows, EP nurses, general clinical cardiologists, EP fellows and industry professionals

Chapter 1
Cardiovascular anatomy and physiology

---

Learning objectives

• Point out the key landmarks in the human heart relevant to cardiac rhythm management.
• Name the four chambers of the heart, the four valves, and the major vessels.
• Describe the flow of blood through the heart.
• Define AV synchrony and explain why it is important.
• State the difference between the body’s arterial versus venous systems.

---

Introduction

An encyclopedia could be written on the anatomy and physiology of the human heart, and that is not our purpose. Device clinicians must understand the cardiovascular system to understand arrhythmias and device therapy. This chapter will introduce the important concepts of cardiac anatomy and physiology necessary for an understanding of cardiac rhythm management. To that end, this chapter will describe the chambers, valves, and major vessels of the heart and how these control the flow of blood in the body. Although we think of the heart—rightly—as a pump, it also possesses a complex electrical system. The cells of the human heart are unique in many ways, and how they produce, conduct, and dissipate electrical energy is very important, particularly to pacing. Our goal here is to describe the anatomy and physiology of the healthy heart and cardiovascular system in terms of what device clinicians need to know.

The healthy heart

The human heart is a double pump (right and left) that sits in the middle of the chest, slightly to the left, and rotated so that the right side is more anterior than the left. An average adult human heart is relatively large, about 13 by 9 by 6 cm and weighing about 300 g. The heart is protected by the rib cage and sits directly behind one of the body’s thickest bones, the sternum. The bottom of the heart rests on the diaphragm muscle. The heart is encased in this protected but somewhat crowded area—it also contains the lungs (three lobes on the right, two on the left), the stomach, and the intestines.

The bottom tip of the heart (called the apex) taps up against the chest when the heart contracts. By placing his hands on the chest, a physician can feel the place where the apex of the heart makes contact with the chest; this place is called the point of maximal impulse (PMI). Knowing the precise location of the PMI can be very useful in treating cardiology patients, because the PMI of a healthy heart occurs slightly to the left, while the PMI of a person with an enlarged heart is going to occur much farther to the left, even off to the side. A healthy heart is roughly the size of the fist, but when hearts enlarge, such as occurs with disease progression, the enlargement occurs toward the left. Thus, PMI can provide a fast, noninvasive way of determining if and to what degree the heart has enlarged.

The left ventricle composes most of the mass of the heart, being by far the largest of the four pumping chambers. A healthy heart circulates about 4–6 l of blood a minute—which is the entire blood volume of the body! That means the entire circulating volume of blood in the body moves around every minute or once per beat.

The heart consists of four chambers: two upper chambers called atria (singular atrium) and two lower and larger chambers called ventricles. To understand the healthy heart, it is useful to think of the heart in terms of right side (right atrium and right ventricle) and left side (left atrium and left ventricle). The right side of the heart circulates deoxygenated blood to the lungs (where it can be oxygenated). The left side of the heart pumps oxygenated blood out to the rest of the body (see Figure 1.1).

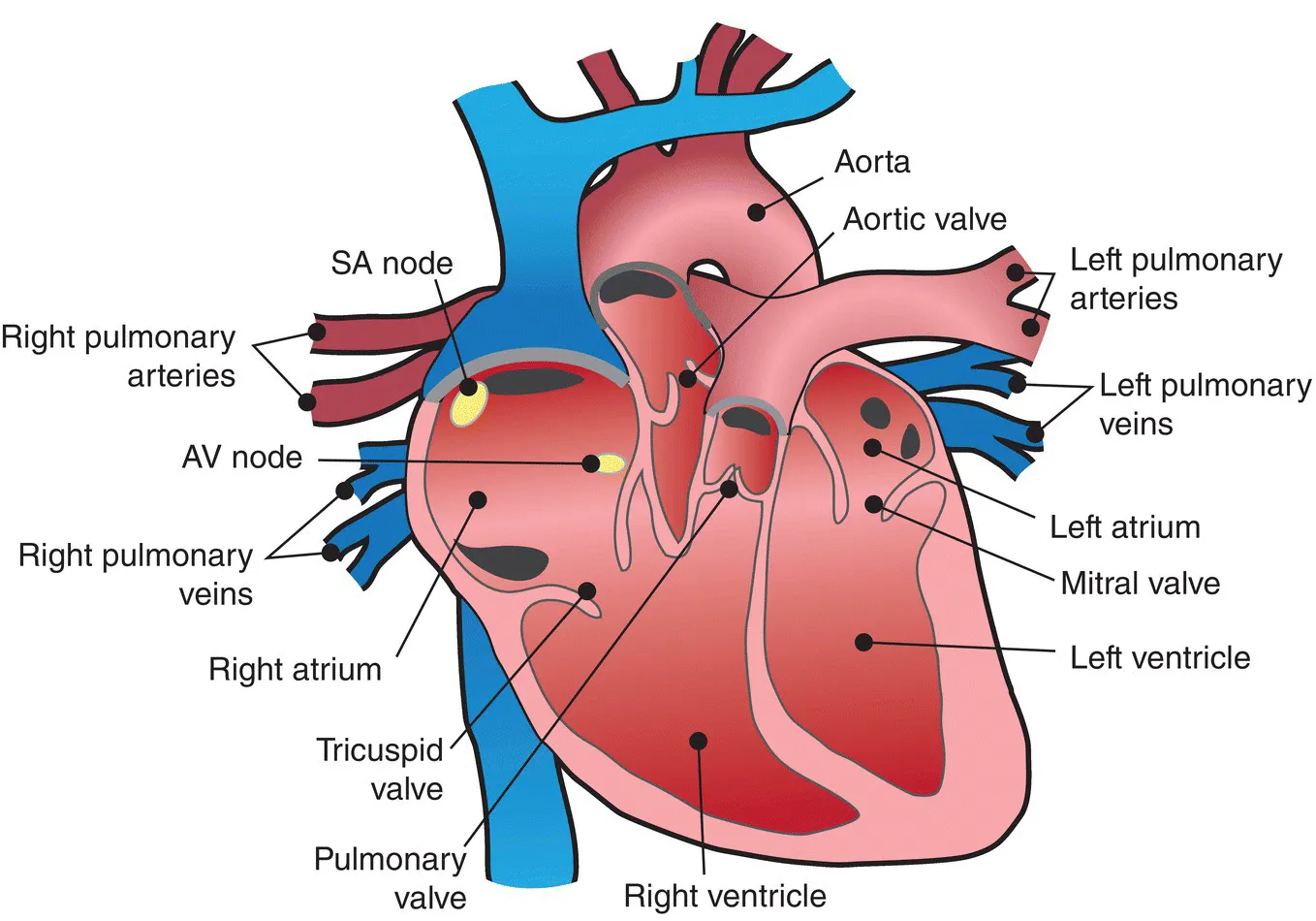

Figure 1.1 Cross section of the heart showing the chambers.

The heart is a muscle and consists of four distinct layers. The endocardium is the innermost layer and composes a lining for the interior of the heart. The epicardium is the outer layer of the heart. Between the endocardium and epicardium lies the myocardium—the thickest layer—which is muscle. The entire heart is encased in a liquid-filled sac called the pericardium, which acts like a shock absorber for the heart. The pericardial sac contains about 15–20 cc of pericardial fluid in a healthy individual. In the event that fluid builds up to abnormally high levels in the pericardial sac (such as might occur when a lead or catheter inside the heart perforates the endocardium, myocardium, and epicardium and goes exterior to the heart), this fluid can place pressure on the heart in a condition known as cardiac tamponade. Since the heart is contained in a relatively small space, this pressure can compromise the heart’s ability to fill with blood and pump efficiently. During device implantation, perforation is an important concern because it can lead to cardiac tamponade. In the event that perforation results in cardiac tamponade, a needle is inserted into the pericardial sac (through the chest wall) to drain the blood. Lead perforation does not always result in cardiac tamponade, but it is a serious concern.

Blood flow through the heart

The heart is a pump and it is located amid a network of vessels that carry deoxygenated blood into the right side of the heart and reoxygenated blood into the left side of the heart. The flow is actually fairly simple. Deoxygenated blood enters the right side of the heart and is pumped over to the lungs via the pulmonary arteries and is returned back (as oxygen-rich blood) to the left side of the heart by way of the pulmonary veins (PV). While both right and left sides of the heart contract at the same time as a single unit, the right side is busy pumping deoxygenated blood to the lungs, while the left side is pumping reoxygenated blood out to the rest of the body.

Deoxygenated blood enters the right side of the heart via the superior vena cava (SVC), but once it has become oxygenated again, blood is pumped back out from the left side of the heart into the aorta. The aorta is the largest vessel in the body, and it forms a U shape at the top of the heart. These portions of the aorta are called the ascending, the descending, and the arch. Coming off the aortic arch are three main arteries: the left subclavian artery, the left common carotid artery, and the brachiocephalic trunk.

To better understand the blood flow through the heart, it is important to review the structure of the heart. The atria or upper chambers of the heart are smaller, have thinner walls, and are smoother on the inside than the ventricles. Within the ventricles is a network of fibrous strands known as trabeculae. These structural differences become important in lead implantation within the heart; it is much easier to affix or lodge a lead in the trabeculae of the ventricles than to try to anchor the lead to a smooth atrial wall. Historically, atrial leads have almost always been active-fixation screw-in-type leads, while ventricular leads were almost always passive-fixation leads (fins or tines that lodge in the trabeculae). Today, active-fixation leads are often used in both chambers since they facilitate lead removal (Figure 1.2).

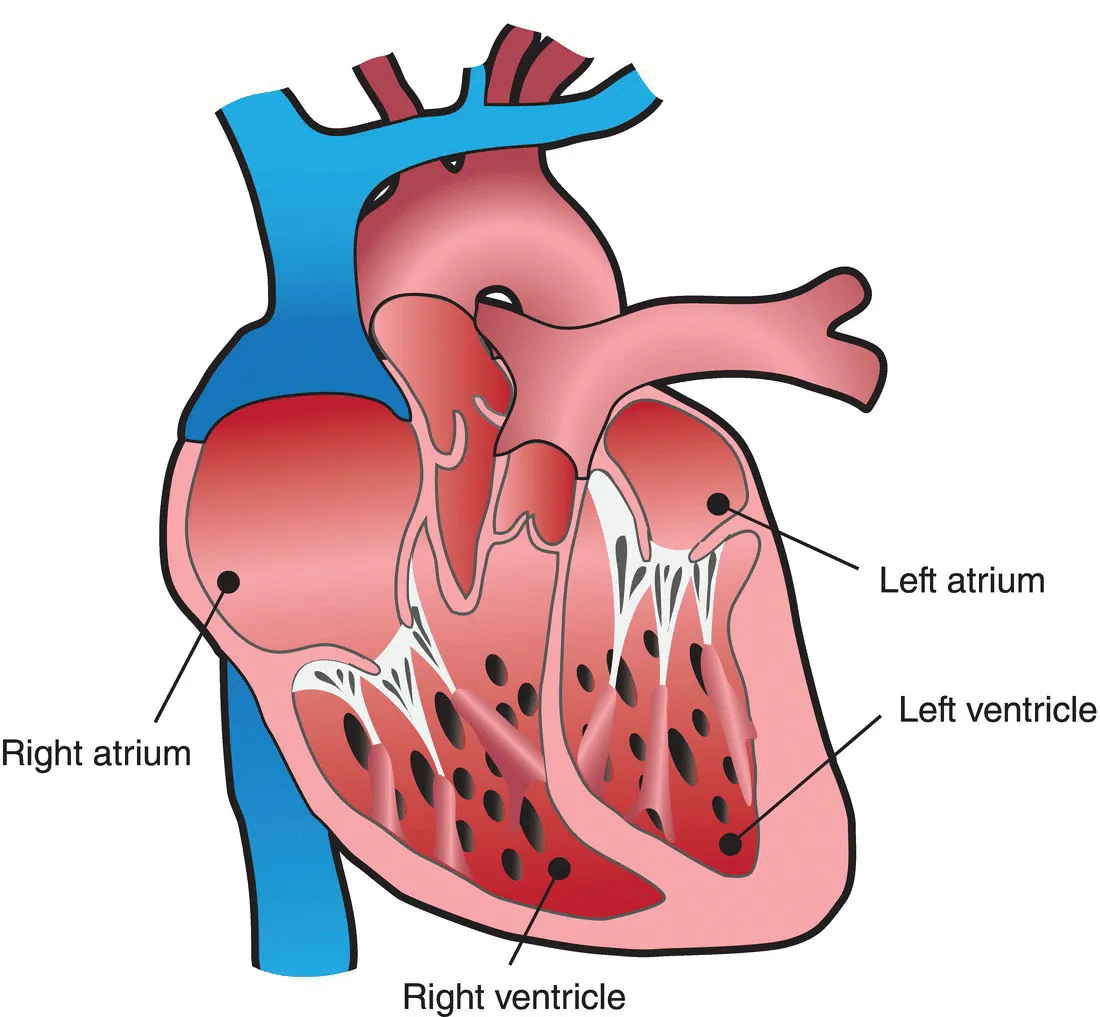

Figure 1.2 Note that the atria are smooth walled, while the ventricles contain a spongelike fibrous network of trabeculae.

Overall, blood flow to the heart is discussed, right and left sides, although it is important to recognize that what happens in the heart, that is, systole (contraction) and diastole (relaxation), are happening on both sides at the same time. The right atrium of the heart receives blood from the SVC, the inferior vena cava (IVC), and the coronary sinus (CS). The CS is technically a vein and it has an opening or ostium (sometimes just called os) at the base of the right atrium, slightly posterior. The CS delivers oxygen-depleted blood to the right atrium from the coronary arteries that encircle the exterior of the heart. The CS is of interest in cardiac resynchronization therapy (CRT) because the left ventricular lead is passed through the CS (counter to the flow of blood) in order to be placed into the coronary vessels to pace the left ventricle. CRT is used in patients with heart failure, whose hearts have remodeled,...
