Computational Pharmaceutics

Application of Molecular Modeling in Drug Delivery

Defang Ouyang, Sean C. Smith, Defang Ouyang, Sean C. Smith, Dennis Douroumis, Alfred Fahr, Juergen Siepmann, Martin J. Snowden, Vladimir Torchilin, Vladimir P. Torchilin

• Publisher: Wiley
• Year: 2015
• Print ISBN: 9781118573990
• eBook ISBN: 9781118573976
• Edition: 1
• Topic: Physical Sciences
• Subtopic: Industrial & Technical Chemistry

Molecular modeling techniques have been widely used in drug discovery fields for rational drug design and compound screening. Now these techniques  are used to model or mimic the behavior of molecules, and help us study formulation at the molecular level. Computational pharmaceutics enables us to understand the mechanism of drug delivery, and to develop new drug delivery systems.

The book discusses the modeling of different drug delivery systems, including cyclodextrins, solid dispersions, polymorphism prediction, dendrimer-based delivery systems, surfactant-based micelle, polymeric drug delivery systems, liposome, protein/peptide formulations, non-viral gene delivery systems, drug-protein binding, silica nanoparticles, carbon nanotube-based drug delivery systems, diamond nanoparticles and layered double hydroxides (LDHs) drug delivery systems.

Although there are a number of existing books about rational drug design with molecular modeling techniques, these techniques still look mysterious and daunting for pharmaceutical scientists. This book fills the gap between pharmaceutics and molecular modeling, and presents a systematic and overall introduction to computational pharmaceutics. It covers all introductory, advanced and specialist levels. It provides a totally different perspective to pharmaceutical scientists, and will greatly facilitate the development of pharmaceutics. It also helps computational chemists to look for the important questions in the drug delivery field.

This book is included in the Advances in Pharmaceutical Technology book series.

1
Introduction to Computational Pharmaceutics

Defang Ouyang¹ and Sean C. Smith²

¹Institute of Chinese Medical Sciences, University of Macau, Macau

²School of Chemical Engineering, University of New South Wales, Australia

1.1 What Is Computational Pharmaceutics?

It is a given that active pharmaceutical ingredients (APIs) should be made into safe and effective dosage forms or formulations before administration to patients. Pharmaceutics is the discipline to make an API into the proper dosage form or medicine, which may then be safely and effectively used by patients [1]. Pharmaceutics also relates to the absorption, distribution, metabolism, and excretion of medicines in the body. Branches of pharmaceutics include formulation development, pharmaceutical manufacture and associated technologies, dispersing pharmacy, physical pharmacy, pharmacokinetics, and biopharmaceutics [1–4]. Today there are various dosage forms, such as tablets, capsules, solutions, suspensions, creams, inhalations, patches, and recently nanomedicines (e.g., liposomes, nanoparticles, nanopatches). Although numerous new techniques have been developed for the form of dosage, current development of drug formulations still strongly relies on personal experience of pharmaceutical scientists by trial and error in the laboratory [1]. The process of formulation development is laborious, time-consuming, and costly. Therefore, the simplification of formulation development becomes more and more important in pharmaceutical research. Computational pharmaceutics involves the application of computational modeling to drug delivery and pharmaceutical nanotechnology. In combination with existing branches of pharmaceutics, it offers rapidly growing potential for developing rational, deductive and knowledge-based strategies in pharmaceutics.

With stunningly rapid advances in hardware, theory and software algorithms, computer simulation is now able to model complex systems, which may be difficult, costly, or even impractical to measure or monitor directly by experiment [5, 6]. The first example of computer modeling was the simulation of the nuclear bomb process in the Manhattan Project, World War II. With the development of high performance computing, multiscale modeling techniques have been widely pursued, from quantum mechanics (QM) and molecular dynamics (MDs) to stochastic Monte Carlo methods, coarse grained dynamics, discrete element methods (DEMs), finite element methods as well as advanced analytical modeling. In principle, all properties of all systems are able to be described by QM. However, first principle calculations are limited to small systems, <1000 atoms, which is impractical for solving applications of large molecules or systems [5, 6]. MD simulations mimic the physical motion of atoms and molecules under Newton’s laws of physics, which is applicable to larger systems containing millions of atoms [5, 6]. MD simulation is based on molecular mechanics, which models the interactions between atoms with force fields. Monte Carlo (MC) simulation uses the same empirical force field as MD simulation. However, MC simulation features playing and recording the results in casino-like conditions by repeated random sampling [5, 6]. Thus, unlike MD simulation, MC simulation cannot offer dynamical information with time evolution of the system in a form suitable for viewing. MC methods are especially useful for modeling systems with significant uncertainty and high degrees of freedom, such as polymer chains and protein membranes. For much larger systems, coarse-grain models do further classical approximations by treating functional groups as rigid bodies of constrained particles [5, 6]. The DEM is one of the numerical methods for computing the motion and effect of a large number of small particles, which is widely used in the pharmaceutical process and manufacturing [5, 6].

In the past three decades, the application of computational modeling approaches in the field of drug design (e.g., QSAR, ligand docking) has been intensively developed to the point of being a mature field [7]. Pharmaceutical research is, however, a far broader field than drug design alone. Proceeding beyond drug design, the application of computational modeling to drug delivery and pharmaceutical nanotechnology, computational pharmaceutics, is a very new field with great potential for growth [8]. As shown in Figure 1.1, computational pharmaceutics has the ability to provide multiscale lenses to pharmaceutical scientists, revealing mechanistic details ranging across the chemical reactions of small drug molecules, proteins, nucleic acids, nanoparticles, and powders with the human body. The aim of this book is to provide a contemporary overview of the application of computational modeling techniques to problems relating to pharmaceutics (drug delivery and formulation development) that will be of great relevance for pharmaceutical scientists and computational chemists in both industry and academia. Contributions from leading researchers cover both computational modeling methodologies and various examples where these methods have been applied successfully in this field.

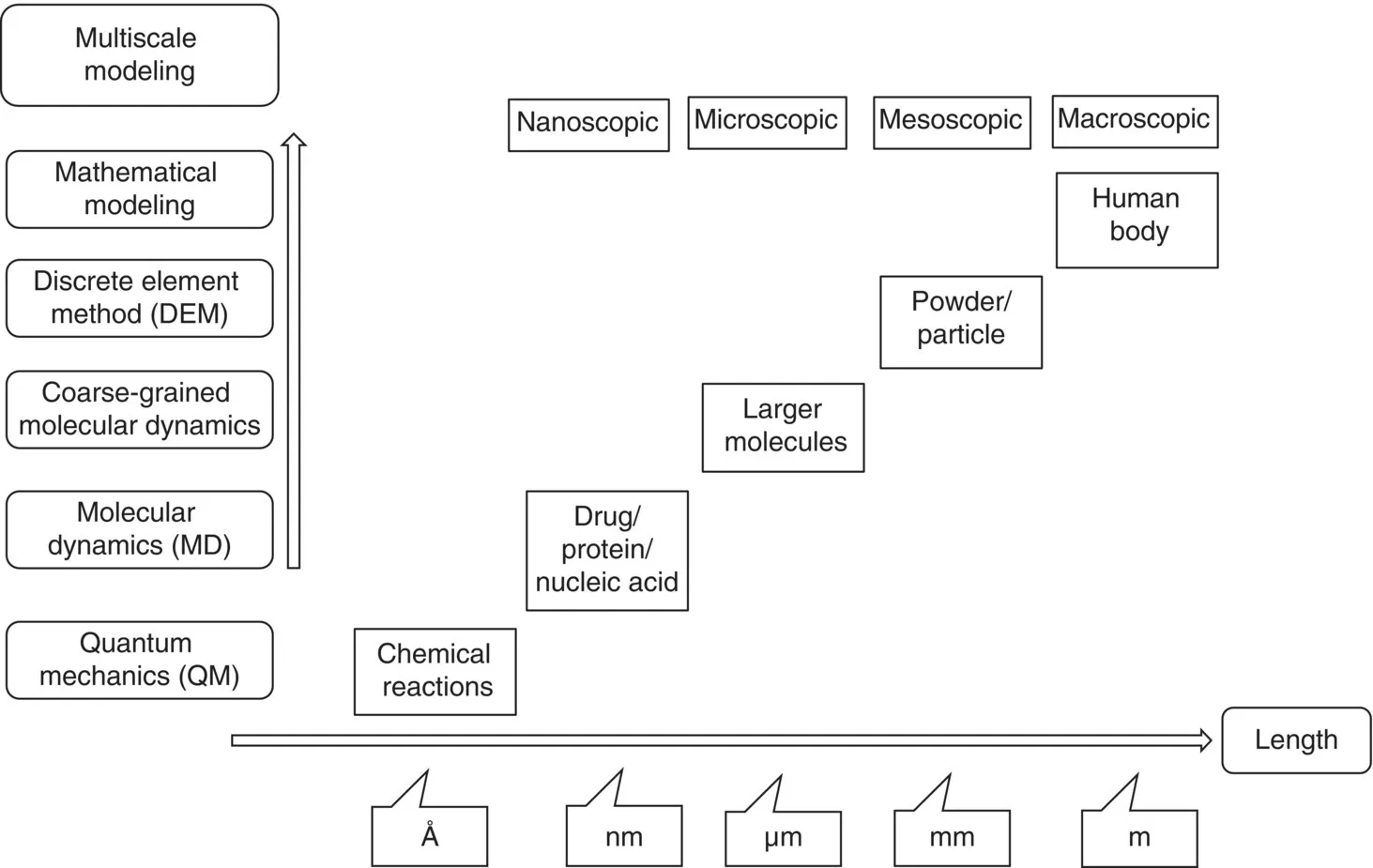

Figure 1.1 Application of computational pharmaceutics.

1.2 Application of Computational Pharmaceutics

Polymorphism of small drug molecules (e.g., crystal, hydrate, solvate, salt, cocrystal) plays a very important role in pharmaceutical research because it greatly influences the dissolution behavior and the bioavailability of pharmaceutical products. Thus, crystal structure prediction (CSP) methods have gained wide attention from pharmaceutical scientists. Chapter 2 discusses the general principles of CSP and recent progress in solid form screening by the crystal energy landscape method.

Cyclodextrins are a family of cyclic oligosaccharides, which are widely used in drug delivery and formulations for the solubilization of poorly soluble drugs. In Chapter 3, the physicochemical principles of cyclodextrin/drug complexation, experimental characterization and recent theoretical progress of drug/cyclodextrin modeling are discussed.

Polymeric-based micellar vehicles have been widely used in pharmaceutics for the delivery of both hydrophilic and lipophilic drugs. Multiscale modeling for polymeric-based vehicles for drug delivery is discussed in Chapter 4, including different computational approaches, micellar self-assembly and stability, the interaction of Taxol with model cellular membranes, and Taxol–tubulin association.

Solid dispersion refers to the dispersion of drug molecules in carriers in a solid state, prepared by the hot melting method. Poor physical stability has strongly hindered the commercialization of this technique. Chapter 5 discusses the possible molecular structure of amorphous solid dispersions and the mechanism of physical stability of this technology.

Biological lipid membranes are the key to drug absorption and bioavailability. Liposomes, artificially prepared vesicles with a phospholipid bilayer, are widely employed in drug delivery for cancer and other diseases. Chapter 6 reviews the theoretical progress of lipid membrane models, small-molecular uptake and permeation across lipid membranes, nanoparticle–membrane interaction, and the mechanism of chemical penetration enhancers.

Protein/peptide drugs are becoming increasingly important in the pharmaceutical market. However, the development of stable and effective formulations for biopharmaceuticals is still quite challenging for pharmaceutical scientists. Chapter 7 summarizes the diverse modeling results on the solution behavior of protein formulation, including protein aggregation pathways in liquid formulations, protein-cosolvent interactions, and protein–protein interactions.

Inorganic nanoparticles had been increasingly utilized for drug/gene delivery in recent decades. One of the main advantages of nanoparticle drug delivery systems is the targeting effect to specific organs and tissues. Chapter 8 discusses recent progress in computational modeling of inorganic nanoparticle drug delivery systems: carbon nanotubes, graphene/graphene oxide, silica, and gold nanoparticles.

Although the concept of nanodiamonds (diamond nanoparticles) for drug delivery is still in its infancy, recently nanodiamonds have been widely studied for bio-imaging and drug targeting for improved chemotherapeutic effect. Chapter 9 reviews the structure of the individual nanodiamond, its surface chemistry and interactions, and nanodiamond drug delivery systems.

Layered double hydroxides (LDHs) are composed of nanoscale cationic brucite-like layers and exchangeable interlayer anions. LDH nanoparticles are an efficient drug delivery system for anionic chemicals, such as small drug molecules (e.g., methotrexate, heparin) and nucleic acids (RNA and DNA). In Chapter 10, different computational a...

Table of contents

• Cover
• Title page
• Table of Contents
• List of Contributors
• Series Preface
• Preface
• Editors’ Biographies
• 1 Introduction to Computational Pharmaceutics
• 2 Crystal Energy Landscapes for Aiding Crystal Form Selection
• 3 Solubilization of Poorly Soluble Drugs: Cyclodextrin-Based Formulations
• 4 Molecular Modeling of Block Copolymer Self-Assembly and Micellar Drug Delivery
• 5 Solid Dispersion – a Pragmatic Method to Improve the Bioavailability of Poorly Soluble Drugs
• 6 Computer Simulations of Lipid Membranes and Liposomes for Drug Delivery
• 7 Molecular Modeling for Protein Aggregation and Formulation
• 8 Computational Simulation of Inorganic Nanoparticle Drug Delivery Systems at the Molecular Level
• 9 Molecular and Analytical Modeling of Nanodiamond for Drug Delivery Applications
• 10 Molecular Modeling of Layered Double Hydroxide Nanoparticles for Drug Delivery
• 11 Molecular Modeling as a Tool to Understand the Role of Poly(Ethylene) Glycol in Drug Delivery
• 12 3D Structural Investigation of Solid Dosage Forms
• 13 Physiologically Based Pharmacokinetic Modelling in Drug Delivery
• Index
• End User License Agreement
