The art and science of audiovisual preservation and access has evolved at breakneck speed in the digital age. The Joint Technical Symposium (JTS) is organized by the Coordinating Council of Audiovisual Archives Associations and brings experts from around the world to learn of technologies and developments in the technical issues affecting the long-term survival and accessibility of audiovisual collections. This collection of essays is derived from presentations made at the 2016 JTS held in Singapore and presents an overview of the latest audiovisual preservation methods and techniques, archival best practices in media storage, as well as analog-to-digital conversion challenges and their solutions.

Let’s Emulate the Sound of Colours! Reto Kromer

1

Abstract

Let’s emulate the sound of colours from the past through the best techniques that are technologically available today. By keeping all the possibilities available for our successors, they will be free to debate, modify and improve on our own work.

Keywords

digital film restoration, audiovisual preservation, analogue, digital, photochemical, colour reproduction, ProRes, TI/A, FFV1, FLAC, Matroska, FFmpeg, QCTools, MediaConch, DCP, OpenDCP, data archiving, conservation, restoration, migration.

Collaboration

Very little of the available technology and tools have been designed and manufactured especially for audiovisual archiving purposes. On the contrary, most of the technology and tools that we are using in our daily archival work have been designed and developed for today’s production and post-production needs. Archivists, conservators, and restorers are continuously adapting this technology and tools to fulfill specific preservation and access needs. Therefore, we only rarely have, for example, a carbon-arc projection of a toned and stenciled nitrate print, but usually, we will enjoy a modern digital projection that emulates, as best as possible, that specific historical look through a file. Emulation can, of course, also be seen in a pedagogic sense: a master teaching to his disciples. So this is indeed important!

Analogue and Digital

In the late 1980s and the early 1990s, when I started considering digital methods for both film restoration and audiovisual conservation, I was mainly regarded as a fool—or at best a candid dreamer. Many years after, before the end of 2013, when I closed down our photochemical laboratory, I was often considered a person who missed the boat in the switch to the new digital world because, occasionally, I still preferred to apply the “old-school” analogue, photochemical methods. Ironically, what I was actually doing was capitalizing on the best potential offered by both worlds and mixing them together to achieve the best possible results. This method created the most historically accurate presentation of a masterpiece or a document in the modern screening context. The penultimate job my photochemical lab did was the preservation of amateur films shot on Kodachrome film stock. Generally, for this type of preservation, we would use the Fujifilm daylight 64 ASA camera negative as an intermediate film stock because it provides the best possible quality in analogue colour reproduction. Sadly, by then that film stock was no longer manufactured, and we used the very last reels stored in our refrigerator.

The Joint Technical Symposium’s (JTS) audience is a very special one. As the JTS name implies, this is a symposium of technically interested individuals with crossover specializations.

The audio community was the first, and the quickest, to move from analogue to digital, and the relatively small size of their data files aided in their early technological adaption. Also, audio technicians seemed to adapt to the new technology easier than other film disciplines, most likely because the move from analogue mechanical recording, to analogue magnetic recording, to digital magnetic recording, to file-based recording was more natural and less polemic in the sound fields.

The broadcast community shifted to digital just after the audio communities to take advantage of the digital possibilities for production and postproduction. At this early stage, they rarely took into account the new challenges for preservation in this digital medium, as well as not understanding the fundamental differences between restoration and enhancement.

Unfortunately, the film preservation community is still in the middle of paranoiac contradictions. It appears that most of their energy, time and money is used for the continuous and duplicitous restoration of a few dozen films they call “canon.” Some film purists think that even digital-born films should be preserved onto film stock. In today’s worst/best scenario we can record onto film only 1/64 of the image quality from the digital file. That is less than 2%. This data loss means that more than 98% of the data are tossed into the rubbish bin. This situation, regrettably, exists because while camera sensors are continuously improving, re-recorders onto film are not. The market for this particular type of recording equipment is gone.

If analogue storage is the answer to all audiovisual preservation needs, why do we have to struggle that much with analogue conservation and restoration issues?

Standardisation

The proceeding three examples are relevant file formats to the film preservation field. If one could be established as a standard principle for the moving image community, collaboration would be more effective and efficient.

ProRes is often hated by archivists because it is a proprietary format of Apple. However, this is a de facto standard in postproduction. The Society of Motion Picture & Television Engineers (SMPTE) wishes to standardise this recording format. At this time it is unclear if it is only the Apple ProRes 422 HQ that is meant to be standardised, or the entire ProRes format family, such as the 4444 XQ. The hope is that the community avoids the mistakes they made with the standardisation of the CineForm or VC-5 codec. Essential information is still kept secret by GoPro, and not all metadata described in the standard matches the metadata generated by GoPro’s products. An unfortunate situation indeed!

A group of scholars from the University of Basel in Switzerland has the goal to define a TIFF format that contains all the technical metadata that is relevant to preservation. Adobe, having refused the name TIFF/A as analogous to PDF/A, has chosen to name the new file format TI/A (Tagged Image for Archival). ISO (International Organisation for Standardisation) is the body where this new recommendation should be submitted, possibly amended, accepted, and finally published.

The IETF (Internet Engineering Task Force) has established a workgroup called CELLAR (codec encoding for lossless archiving and real-time transmission). Cellar is currently standardising the lossless video codec FFV1, the lossless audio codec FLAC, and the extensible media container Matroska, which is based on EBML (extensible binary meta language), a binary XML format. Once adopted, these standards could also be submitted to ISO and SMPTE for additional validation.

Open-Source Software

Today, there are plenty of open-source software options which do not require you to be an engineer to use them. These digital tools form a complete archival ecosystem. The following software is extremely useful and highly recommended.

FFmpeg is a complete, cross-platform solution to record, convert, and stream audio and video. It would benefit every audiovisual archivist to be literate in FFmpeg.

QCTools offers an extremely wide range of strong quality control tools for video preservation, developed by the Bay Area Video Coalition and Dave Rice.

Most audiovisual archivists are familiar with MediaArea’s MediaInfo. MediaArea is currently developing the new tool MediaConch. This tool consists of an implementation checker, policy checker, reporter, and fixer that targets preservation-level audiovisual files; specifically Matroska, LPCM (linear pulse-code modulation) and FFV1, for use in memory institutions.

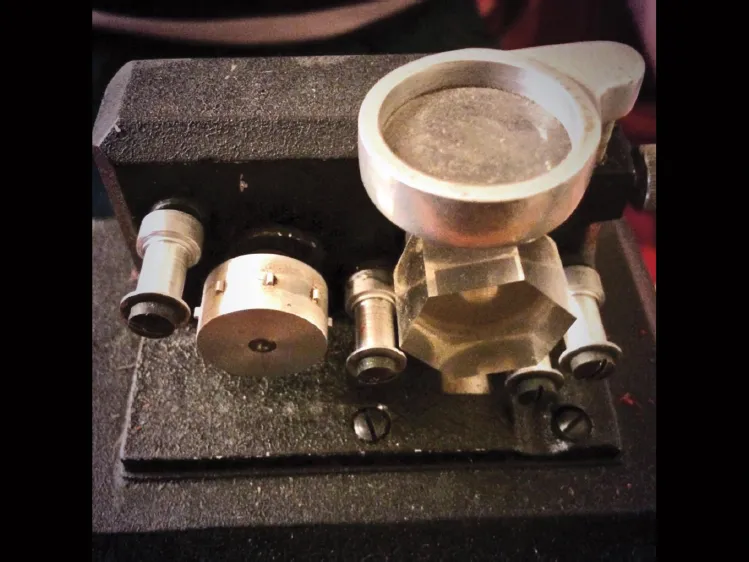

Figure 1. The minimal equipment needed so see the images of a silent 9.5 mm film in movement. This format is also called Pathé Baby.

The Digital Cinema Package (DCP) has replaced prints in commercial film distribution for theatrical projection. DCP is a unique format that was designed by the movie industry, conversely, because of how it is constructed, it can make a film archivists’ preservation work difficult.

Despite these issues, the archivist should give consideration to DCP when deciding the best software tools for their collections. It allows greater control over the manner in which the audience sees a historical film. The archivist can encode the right colours, the correct aspect ratio, an adequate projection speed, and the DCP will be screened that way in all cinema theatres worldwide. OpenDCP is one of the tools that makes this possible.

Open-Source Hardware?

In the analogue world, things may appear simple. Figure 1 shows the minimal equipment needed to create the illusion of movement. In the digital world, equipment with that kind of simplicity is currently not available.

Twelve years ago, when we built our first scanner, we only modified one camera part within an optical step printer. The projector part, the lenses, the pre-wet device that we had previously developed, as well as the mechanical movement was retained without modification.

Also, the optical camera, number 128 from Richard Craß in Berlin, was the first one we converted from analogue to digital. Many others made similar conversions.

It is possible to build, in your kitchen, a relatively simple machine for cleaning all kinds of magnetic tapes.

For archiving large amounts of audiovisual data, LTO is often chosen. The magnetic tape based solution LTO (linear tape-open) with LTST (linear tape file system) is indeed a good solution for data archiving in the real world.

Conservation

In short, analogue conservation focuses on the chemistry of the base, and the emulsion or the magnetic coating, and concludes that one should store materials in a cool and dry environment.

On the other hand, digital conservation concludes that one should keep every single bit unchanged, and instead focuses on the container, codes and the so-called “raw” data.

Briefly, as for the migration process, from January through June of 2014, we migrated the digital archive of our company from LTO-4 to LTO-6. It was decided to change some file formats, and to convert them en passant into other more robust formats for future accessibility. We started with roughly 1000 tapes and ended up with fewer than 300 tapes. Although we reduced the storage volume in the security cabinet by more than two-thirds, there are now more consistent data. Additionally, we have migrated 5.7 PB of data and only encountered one single error. This was resolved by using the archive’s second back-up copy.

This kind of work must be done through an automated process to avoid the “human error” factor. However, archivists do need to have the skills to deal with technical issues. It is crucial to be able to read and understand the technical information provided by the industry, and to choose the solution that best fits their archival needs.

Restoration

Throughout my life, I have spoken many times about the ethics of conservation and restoration, including organizing a full conference in 2010 about this very topic. Through age and experience, I have come to agree thoroughly with the thought: “Restoration consists of replicated errors of the past.” We, as a professional community, should be able to do more in our restoration work than just replicate the errors of the past.

The first software for digital image restoration, primarily, selected the region where a problem occurred, called ROI (region of interest), and that area would be defocused a small amount resulting in the problem becoming less visible. To mask the fact that the image is less sharp, the contrast is increased to compensate, and the viewer has the illusion that the problem is resolved.

Modern restoration programs work at the pixel level. The software tries to fix the actual problem that a pixel has, or that a small group of pixels has, rather than try to mask it. Additionally, these newer programs are more complex and need more powerful computer processing for optimal efficiency. This assortment of tools was developed mainly by the game industry for their special effects. If the archivist uses them cum grano salis, then true restoration work can be performed, and not simply camouflage the existence of a problem. Just as importantly, any restorative interventions need to be carefully documented. It can be a difficult but essential task.

Recent developments

Significant advances have been made in the audiovisual and game industry software.

The accessibility of high dynamic range allows the image reproduction to contain a more accurate colour representation (for example of Dufaycolor, Kodachrome, or Technicolor), and can be used to improve audiovisual archiving.

The higher frame rate options allow the archivist to encode precisely the frame rates used during the silent film era. Also, by multiplying frames and adding black frames to emulate the projector’s shutter blades, it gives a more accurate, as well as a more pleasant viewing experience. Additionally, theatrical access is improved dramatically.

Furthermore, other technological fields, such as forensic science, has developed new tools, allowing us to read all the information off of a magnetic tape, and to interpret it by using their software. Also, the algorithms developed for DNA sequencing can be used to process the optical soundtrack from an archival scan. This should be done frame by frame and edge to edge, with a little vertical overscan. By utilizing diverse technologies, these programs will open the most doors for more accurate conservation and restoration work.

Summa summarum: Let’s emulate the sound of colour through the best techniques that are technologically available today. By keeping all the possibilities available for our successors, they will be free to debate, modify and improve our own work.

Having graduated in mathematics and computer science, RETO KROMER became involved in audiovisual conservation and restoration thirty years ago. He was head of preservation at the Swiss National Film Archive and lecturer at the University of Lausanne. He has been running his own preservation companies and lecturing at the Bern University of Applied Sciences and the Academy of Fine Arts Vienna. His current research includes colour spaces, CLUT, and codec programming and emulation.

Acknowledgments

I entered this field in late October 1986. During these past 30 years, I have had the pleasure to meet many individuals who have been fundamental in developing my career. I would like to thank, warmly, all the persons who have been most crucial for my own professional development: Marguerite Engberg, Alan Masson, John Pytlak, Dominic Case, Paul Collard, Luigi Pintarelli, Paul Read, Kris Kolodziejski, Martin Sawyer, Carole Delessert, Hermann Wetter, Rémy Pithon, László Gloetzer, Charly Hus...
